321MD11/32
321MD11/32

321MD11/32

UGC PRE6480988
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.47 CAD - $5.47 CAD
$5.47 CAD
$5.47 CAD - $5.47 CAD
$5.47 CAD

Vendu en lots de : 6

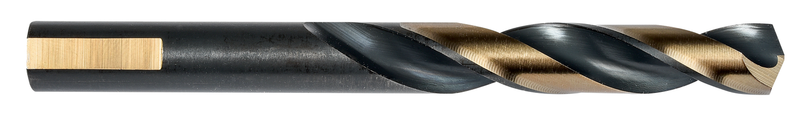

Foret mécanique à queue tri-plate, diamètre 0,3438" (11/32) avec une longueur totale de 4,1/8" et une longueur de coupe de 2,5/8" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition trempée à la vapeur + bronze pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)321MD11/32
GradeST/Bronze
Product Number6480988
Product Family321MD

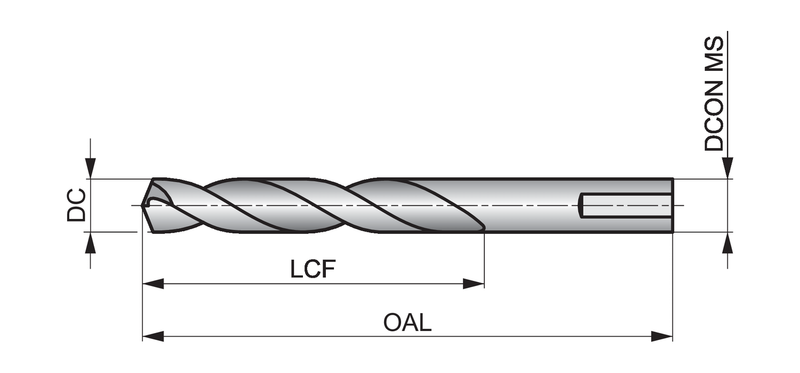

Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3438"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique avec 3 pans plats
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480988
EAN8032744128711
File Type Download
321MD11/32 — 3D Model STP Download
321MD11/32 — Line Drawing PDF Download
