321MD15/32
321MD15/32

321MD15/32

UGC PRE6480996
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.37 CAD - $10.37 CAD
$10.37 CAD
$10.37 CAD - $10.37 CAD
$10.37 CAD

Vendu en lots de : 6

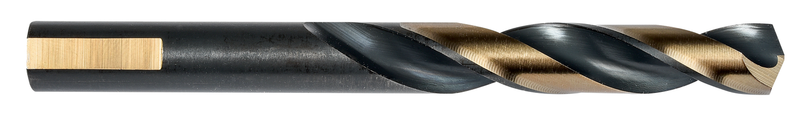

Foret mécanique à queue tri-plate, diamètre 0,4688" (15/32) avec une longueur totale de 4,3/4" et une longueur de coupe de 3,1/8" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition bronze + trempe vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)321MD15/32
GradeST/Bronze
Product Number6480996
Product Family321MD

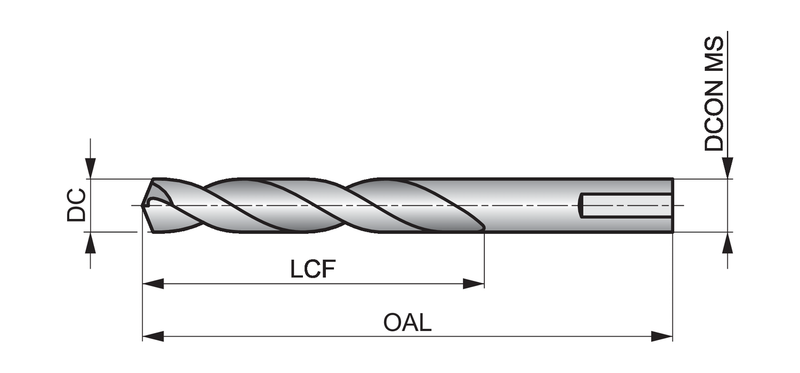

Dimensions
Cutting Diameter — in (DC)0.4688"
Cutting Diameter — mm (DC)11.91 mm
Cutting Diameter — Fractional15/32
Overall Length — in (OAL)4.75"
Overall Length — mm (OAL)120.65 mm
Flute Length — in (LCF)3.125"
Flute Length — mm (LCF)79.38 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4688"
Connection Dia. — mm (DCON)11.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique avec 3-Méplats
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480996
EAN8032744128797
File Type Download
321MD15/32 — 3D Model STP Download
321MD15/32 — Line Drawing PDF Download
