321MD1/2
321MD1/2

321MD1/2

UGC PRE6480998
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.89 CAD - $10.89 CAD
$10.89 CAD
$10.89 CAD - $10.89 CAD
$10.89 CAD

Vendu en lots de : 6

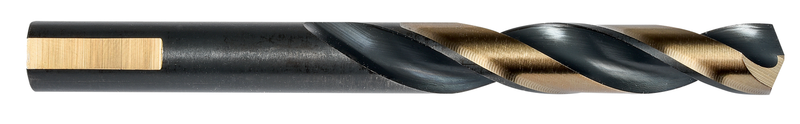

Foret mécanique à queue tri-plate, diamètre 0,5000" (1/2) avec une longueur totale de 5" et une longueur de goujure de 3,3/8" selon la norme ANSI avec une pointe fendue de 135°, en HSS avec finition trempée à la vapeur + bronze pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)321MD1/2
GradeST/Bronze
Product Number6480998
Product Family321MD

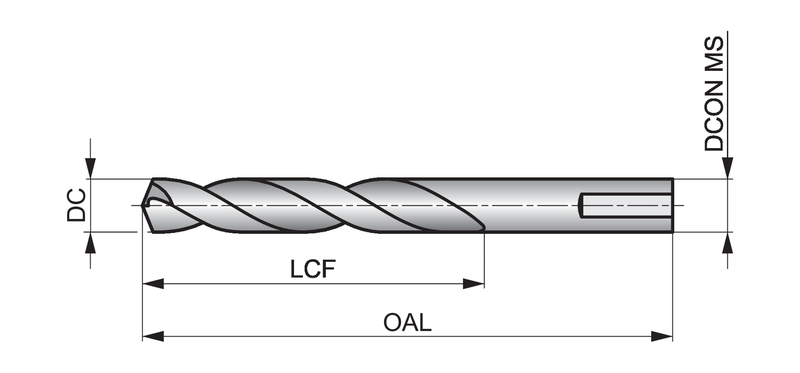

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — in (LCF)3.375"
Flute Length — mm (LCF)85.73 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique à 3 méplats
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480998
EAN8032744128810
File Type Download
321MD1/2 — 3D Model STP Download
321MD1/2 — Line Drawing PDF Download
