331HD3/32
331HD3/32

331HD3/32

UGC PRE6481001
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.20 CAD - $1.20 CAD
$1.20 CAD
$1.20 CAD - $1.20 CAD
$1.20 CAD

Vendu en lots de : 12

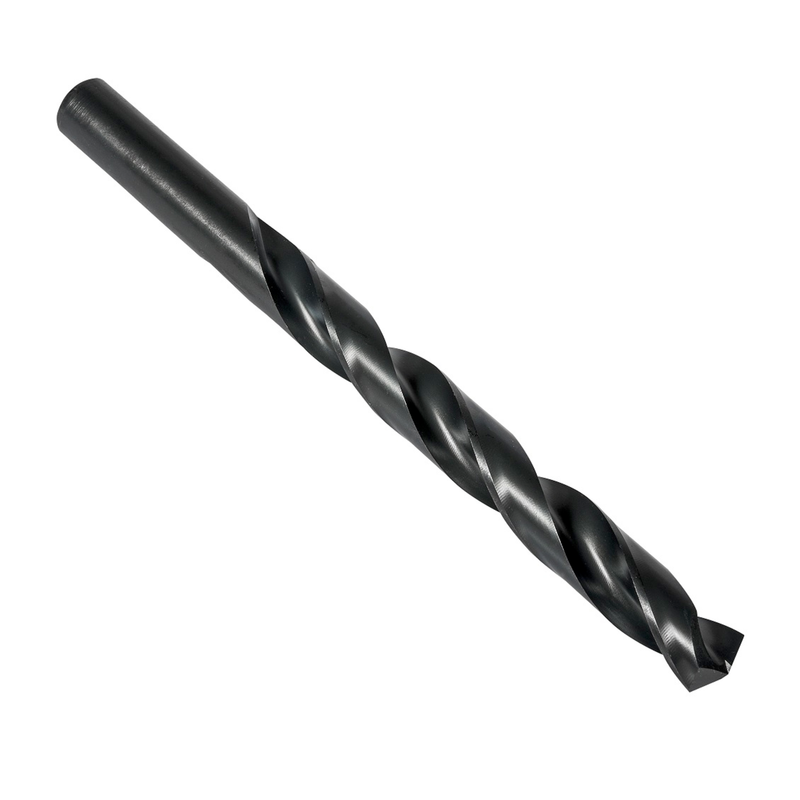

Foret série courte à queue cylindrique, diamètre 0,0938" (3/32) avec une longueur totale de 2.1/4" et une longueur de coupe de 1.1/4" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition trempée à la vapeur pour le perçage à 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HD3/32
GradeTrempé vapeur
Product Number6481001
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — mm (LCF)31.75 mm
Connection Dia. — in (DCON)0.0938"
Connection Dia. — mm (DCON)2.38 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46481001
EAN8032744128841
File Type Download
331HD3/32 — 3D Model STP Download
331HD3/32 — Line Drawing PDF Download
