331HD9/64
331HD9/64

331HD9/64

UGC PRE6481004
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.31 CAD - $1.31 CAD
$1.31 CAD
$1.31 CAD - $1.31 CAD
$1.31 CAD

Vendu en lots de : 12

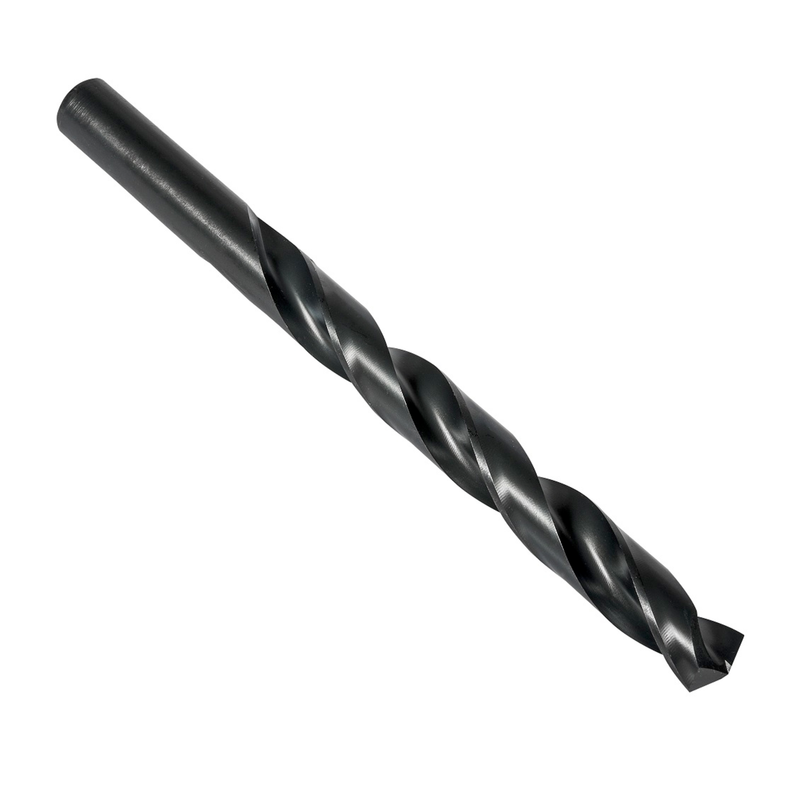

Forets courts à queue cylindrique, diamètre 0,1406" (9/64) avec une longueur totale de 2,7/8" et une longueur de coupe de 1,3/4" selon la norme ANSI avec une pointe fendue à 135°, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HD9/64
GradeTrempé à la vapeur
Product Number6481004
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.1406"
Cutting Diameter — mm (DC)3.57 mm
Cutting Diameter — Fractional9/64
Overall Length — in (OAL)2.875"
Overall Length — mm (OAL)73.03 mm
Flute Length — mm (LCF)44.45 mm
Connection Dia. — in (DCON)0.1406"
Connection Dia. — mm (DCON)3.57 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46481004
EAN8032744128872
File Type Download
331HD9/64 — 3D Model STP Download
331HD9/64 — Line Drawing PDF Download
