331HD3/8
331HD3/8

331HD3/8

UGC PRE6481019
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.06 CAD - $5.06 CAD
$5.06 CAD
$5.06 CAD - $5.06 CAD
$5.06 CAD

Vendu en lots de : 6

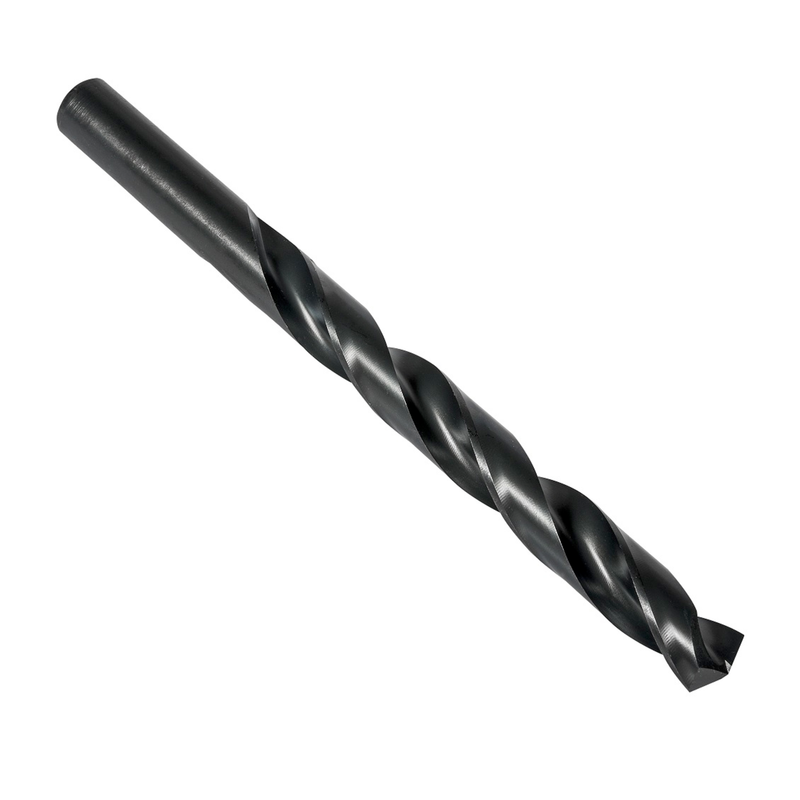

Foret jobber à queue cylindrique, diamètre 0,3750" (3/8) avec une longueur totale de 5" et une longueur de coupe de 3.5/8" selon la norme ANSI avec une pointe à 135° affûtée en croix, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HD3/8
GradeTrempé à la vapeur
Product Number6481019
Product Family331 HD
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — mm (LCF)92.08 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46481019
EAN8032744129022
File Type Download
331HD3/8 — 3D Model STP Download
331HD3/8 — Line Drawing PDF Download
