331HD1/2
331HD1/2

331HD1/2

UGC PRE6481027
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.69 CAD - $8.69 CAD
$8.69 CAD
$8.69 CAD - $8.69 CAD
$8.69 CAD

Vendu en lots de : 6

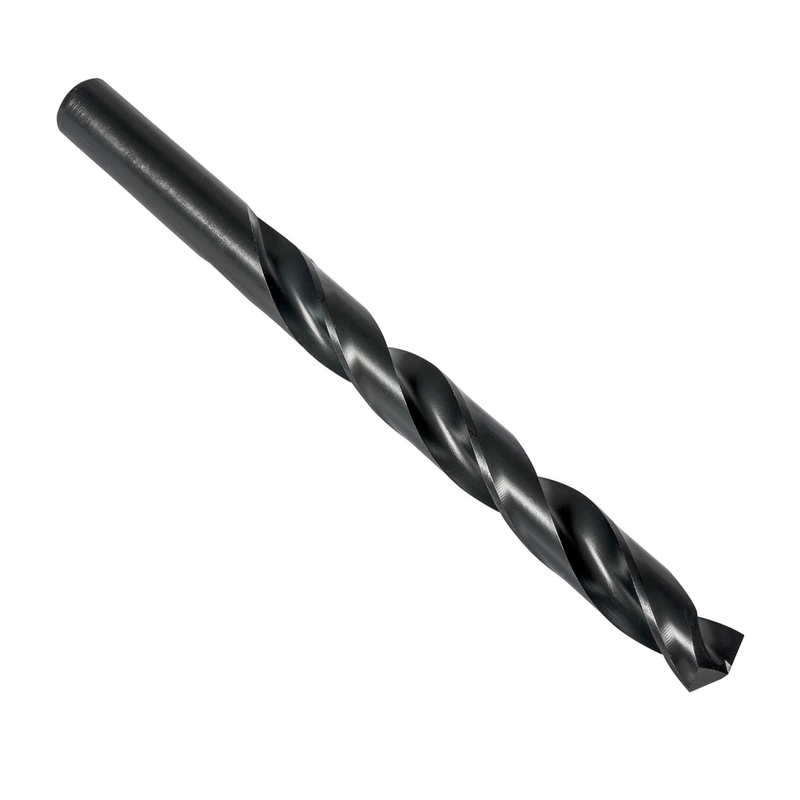

Foret hélice courte (Jobber) à queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 6" et une longueur de coupe de 4.1/2" selon la norme ANSI avec une pointe à 135° auto-centrante, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HD1/2
GradeTrempé à la vapeur
Product Number6481027
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — mm (LCF)114.3 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46481027
EAN8032744129107
File Type Download
331HD1/2 — 3D Model STP Download
331HD1/2 — Line Drawing PDF Download
