341SD33/64
341SD33/64

341SD33/64

UGC PRE6481031
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.31 CAD - $22.31 CAD
$22.31 CAD
$22.31 CAD - $22.31 CAD
$22.31 CAD

Vendu en lots de : 1

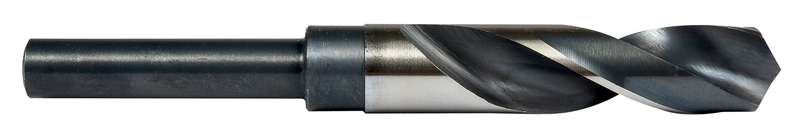

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre de 0,5156" (33/64) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante + revenu à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)341SD33/64
GradeLumineux/ST
Product Number6481031
Product Family341SD
Dimensions
Cutting Diameter — in (DC)0.5156"
Cutting Diameter — mm (DC)13.1 mm
Cutting Diameter — Fractional33/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46481031
EAN8032744129145
File Type Download
341SD33/64 — 3D Model STP Download
341SD33/64 — Line Drawing PDF Download
