341SD7/8
341SD7/8

341SD7/8

UGC PRE6481053
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.70 CAD - $40.70 CAD
$40.70 CAD
$40.70 CAD - $40.70 CAD
$40.70 CAD

Vendu en lots de : 1

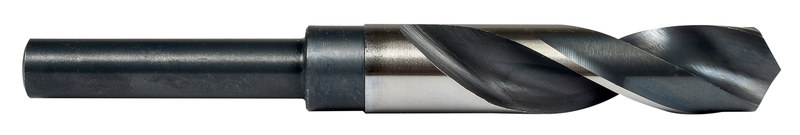

Foret de longueur standard avec queue cylindrique réduite 1/2", diamètre 0,8750" (7/8) avec une longueur totale de 6" et une longueur de coupe de 3" selon la norme ANSI avec un angle de pointe de 118°, en acier rapide avec finition brillante + revenu vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)341SD7/8
GradeLumineux/ST
Product Number6481053
Product Family341SD
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46481053
EAN8032744129367
File Type Download
341SD7/8 — 3D Model STP Download
341SD7/8 — Line Drawing PDF Download
