341SD1.1/16
341SD1.1/16

341SD1.1/16

UGC PRE6481061
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.34 CAD - $60.34 CAD
$60.34 CAD
$60.34 CAD - $60.34 CAD
$60.34 CAD

Vendu en lots de : 1

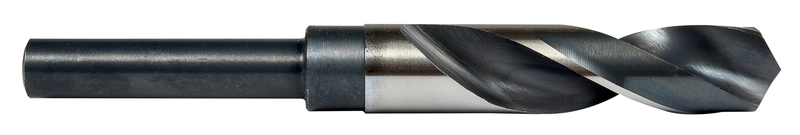

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre 1,0625" (1,1/16) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante + revenu vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)341SD1.1/16
GradeLumineux/CT
Product Number6481061
Product Family341SD
Dimensions
Cutting Diameter — in (DC)1.0625"
Cutting Diameter — mm (DC)26.99 mm
Cutting Diameter — Fractional1,1/16
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46481061
EAN8032744129442
File Type Download
341SD1.1/16 — 3D Model STP Download
341SD1.1/16 — Line Drawing PDF Download
