E292M2,5
E292M2,5
E292M2,5

E292M2,5

UGC DOR6498042
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$94.39 CAD - $94.39 CAD
$94.39 CAD
$94.39 CAD - $94.39 CAD
$94.39 CAD

Vendu en lots de : 1

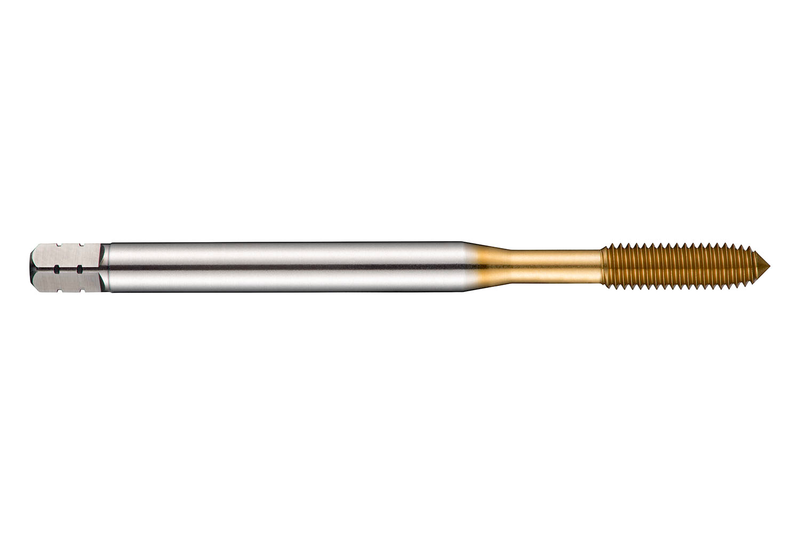

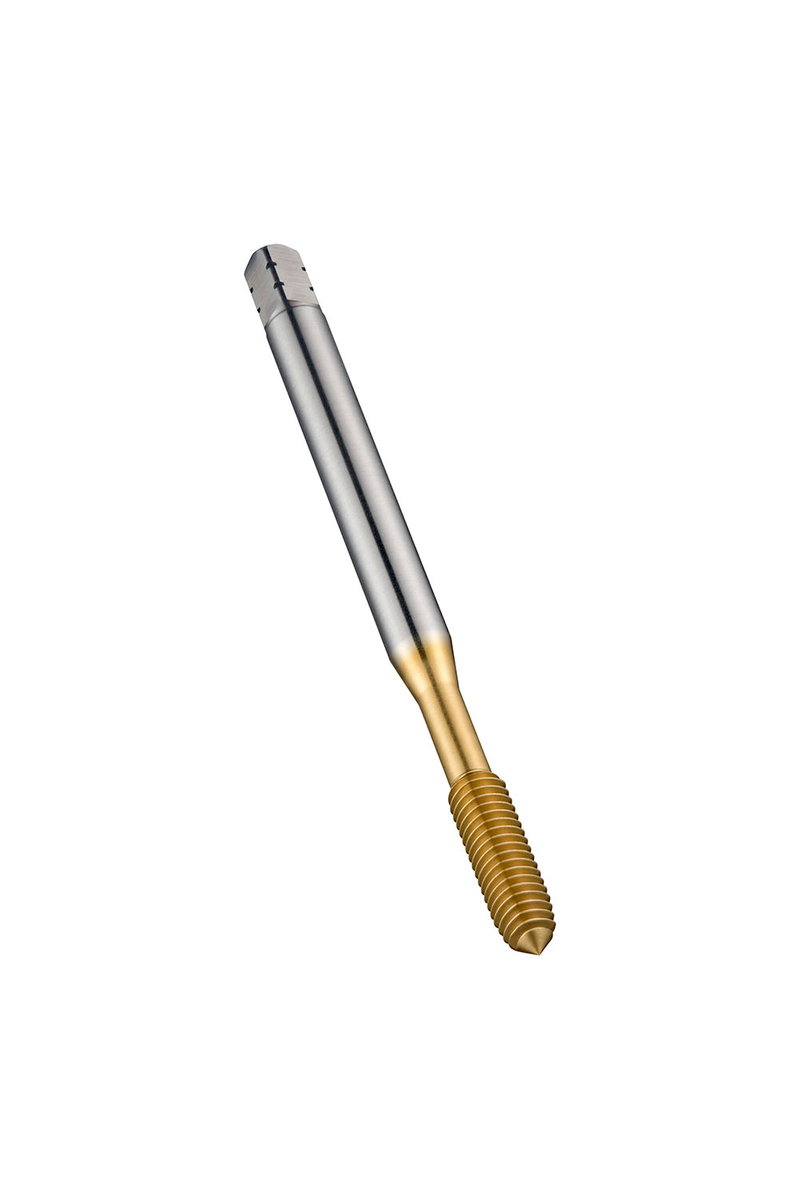

Taraud à refouler, forme C (bouchon 2-3xP), pour filetage ISO-Métric M2.5 au pas de 0,45 mm et de classe de tolérance 6HX, dimensions conformes à la norme DIN 2174 avec queue de 2,8 mm et carré d'entraînement de 2,1 mm, en HSS-E à base de cobalt avec revêtement TiN, pour taraudage de trous débouchants ou borgnes jusqu'à 3xD dans les aciers de décolletage, aciers au carbone non alliés et alliés, aciers inoxydables ferritiques, martensitiques et austénitiques, et aluminium forgé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI)E292M2.5
Product Name (ISO)E292M2,5
GradeTiN
Product Number6498042
Product FamilyE292

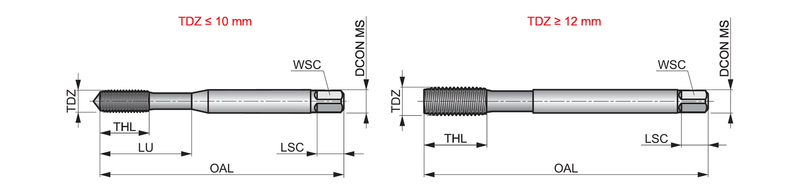

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2.5
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.45 mm
Thread Pitch — in (TP)0.0177"
Tool Information
ShankQueue cylindrique à embase carrée
Direction of ToolD'accord
StandardDIN 2174
Reference Numbers
EDP Number46498042
EAN7320760670965
File Type Download
E292M2,5 — Line Drawing PDF Download
