A002S6.0
A002S6.0
A002S6.0
A002S6.0

A002S6.0

UGC DOR6524868
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.01 CAD - $6.01 CAD
$6.01 CAD
$6.01 CAD - $6.01 CAD
$6.01 CAD

Vendu en lots de : 1

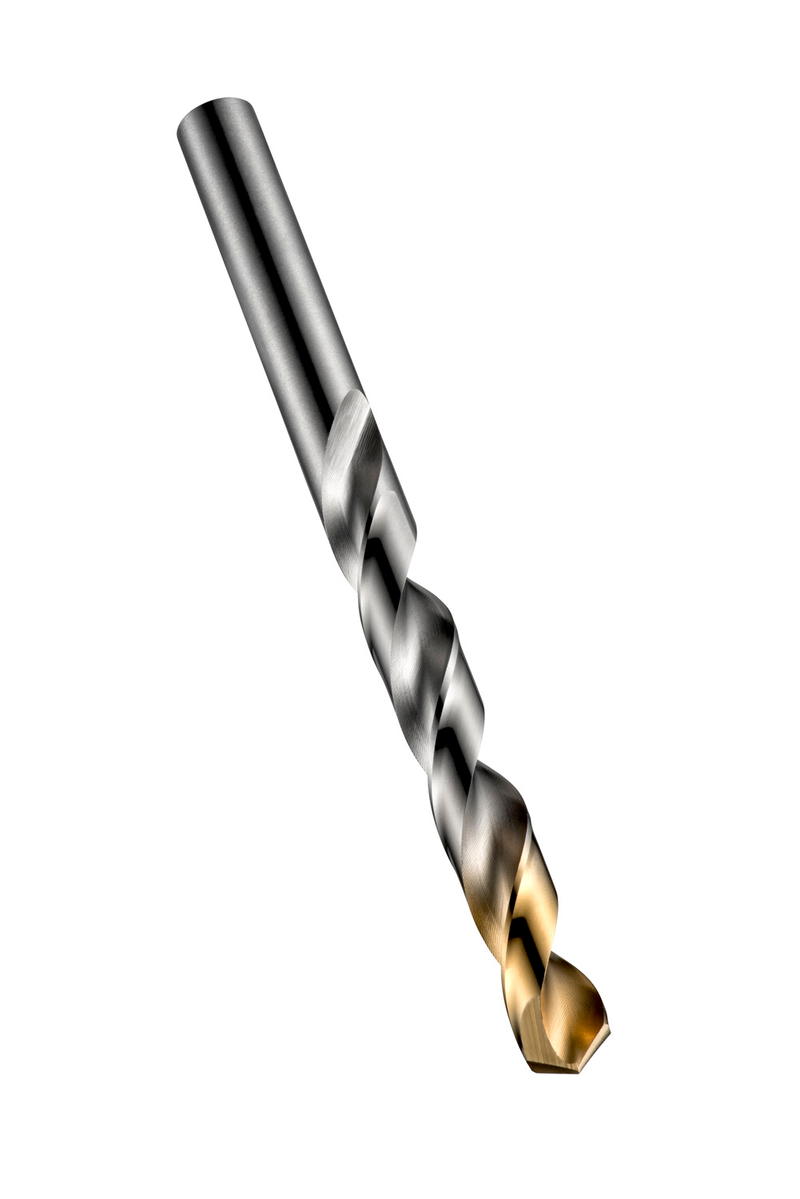

Foret normal avec queue cylindrique, diamètre 6 mm avec une longueur totale de 93 mm et une longueur de coupe de 57 mm selon la norme DIN 338 avec affûtage en croix à 118° modifié, HSS avec revêtement TiN-tip pour perçage 4xD sans débourrage dans l'acier, fourni sous blister individuel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A002S6.0
GradeBrillant/TiN
Product Number6524868
Product FamilyA002S
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — in (LCF)2.2441"
Flute Length — mm (LCF)57.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number46524868
EAN7320760673706
File Type Download
A002S6.0 — 3D Model STP Download
A002S6.0 — Line Drawing PDF Download
