UGC DOR6524889
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.69 CAD - $26.69 CAD
$26.69 CAD
$26.69 CAD - $26.69 CAD
$26.69 CAD

Vendu en lots de : 1

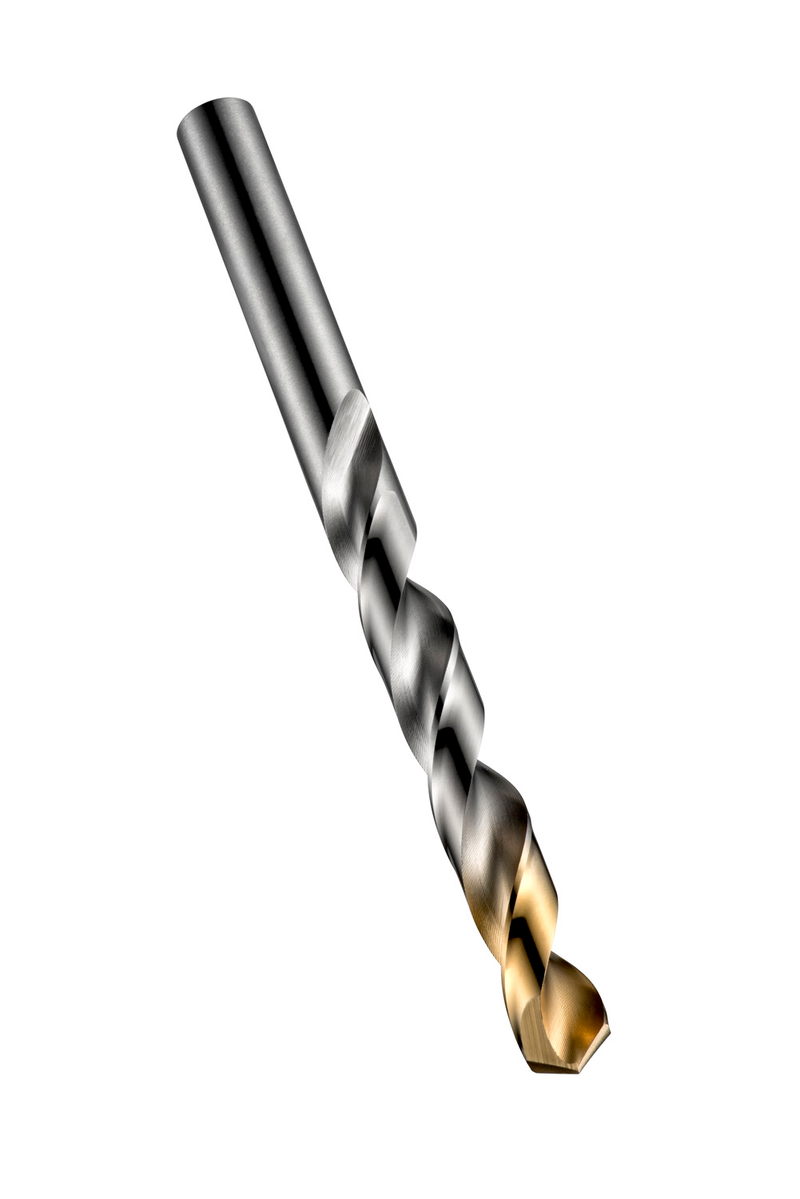

Foret de longueur moyenne à queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 151mm et une longueur de coupe de 101mm selon la norme DIN 338 avec une pointe à 118° affûtage en croix, HSS avec revêtement TiN en pointe pour un perçage 4xD sans débourrage dans l'acier, livré sous blister de 1 pièce

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A002S1/2
GradeLumineux/TiN
Product Number6524889
Product FamilyA002S
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number46524889
EAN7320760673911
File Type Download
A002S1/2 — 3D Model STP Download
A002S1/2 — Line Drawing PDF Download
