E255M5
E255M5
E255M5

E255M5

UGC DOR6554483
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.36 CAD - $34.36 CAD
$34.36 CAD
$34.36 CAD - $34.36 CAD
$34.36 CAD

Vendu en lots de : 1

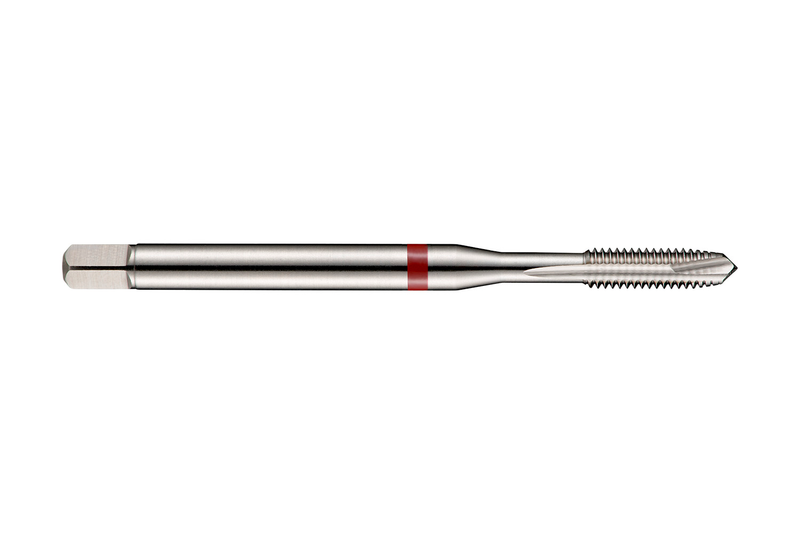

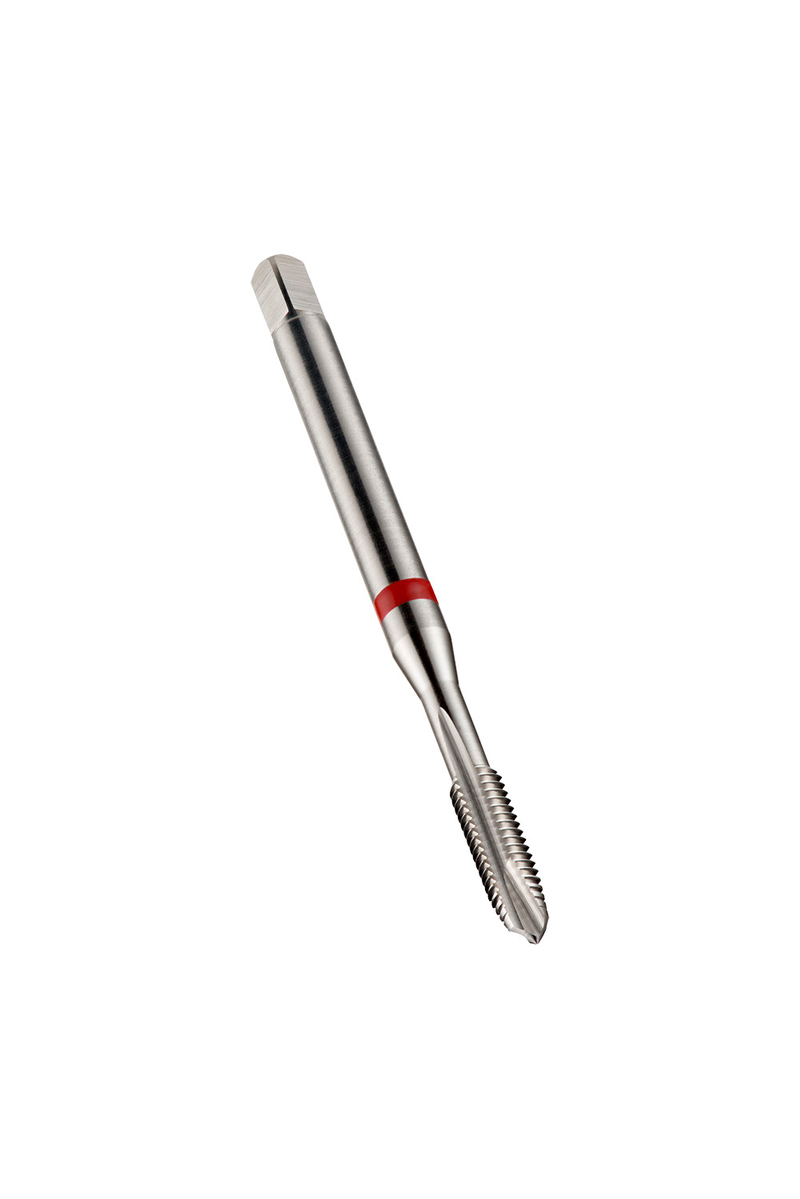

Taraud machine Red Shark à pointe en spirale, forme de chanfrein B avec une longueur de seconde coupe de 3.5-5xP, pour filetage métrique ISO M5 avec pas de 0.80 mm et classe de tolérance 6H, dimensions conformes à la norme DIN 371 avec queue de 6.0mm et carré d'entraînement de 4.9mm, HSS-E métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants 2.5xD dans l'acier au carbone non allié, allié et l'acier à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E255M5
GradeLumineux
Product Number6554483
Product FamilyE255
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Filetage métrique à gros pas
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554483
EAN7320760674260
File Type Download
E255M5 — Line Drawing PDF Download
