E255M8
E255M8
E255M8

E255M8

UGC DOR6554485
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.53 CAD - $39.53 CAD
$39.53 CAD
$39.53 CAD - $39.53 CAD
$39.53 CAD

Vendu en lots de : 1

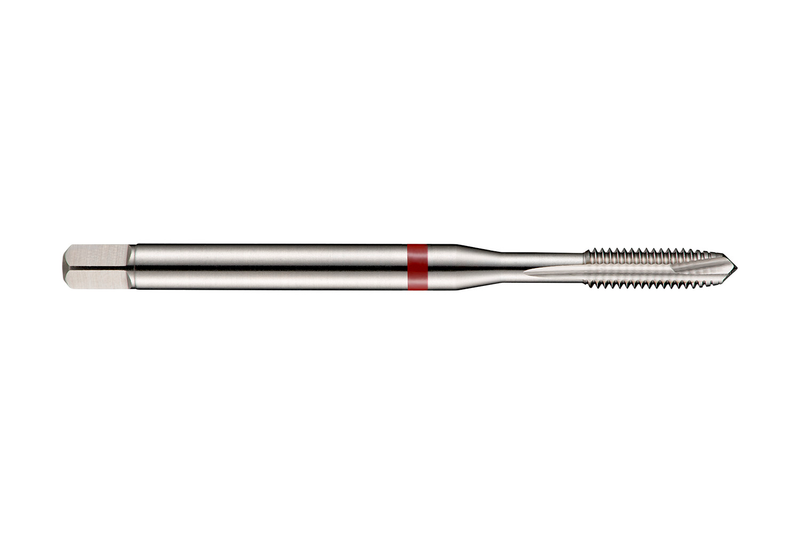

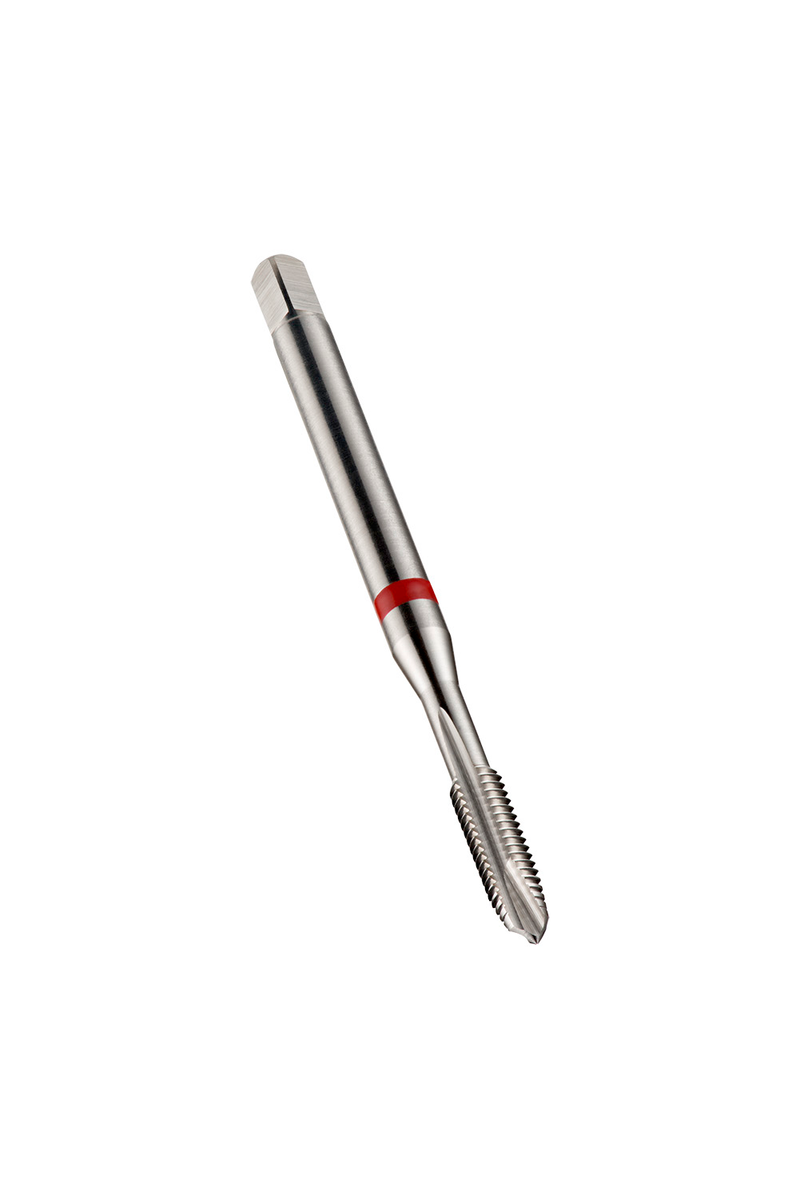

Taraud machine Red Shark à pointe spirale avec entrée forme B de 3.5-5 filets, pour filetage métrique ISO M8 au pas de 1.25 mm et de tolérance 6H, selon la norme DIN 371 avec queue de 8.0mm et carré d'entraînement de 6.2mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers non alliés, alliés et les aciers à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E255M8
GradeLumineux
Product Number6554485
Product FamilyE255
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554485
EAN7320760674284
File Type Download
E255M8 — Line Drawing PDF Download
