E255M10
E255M10
E255M10

E255M10

UGC DOR6554486
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.91 CAD - $47.91 CAD
$47.91 CAD
$47.91 CAD - $47.91 CAD
$47.91 CAD

Vendu en lots de : 1

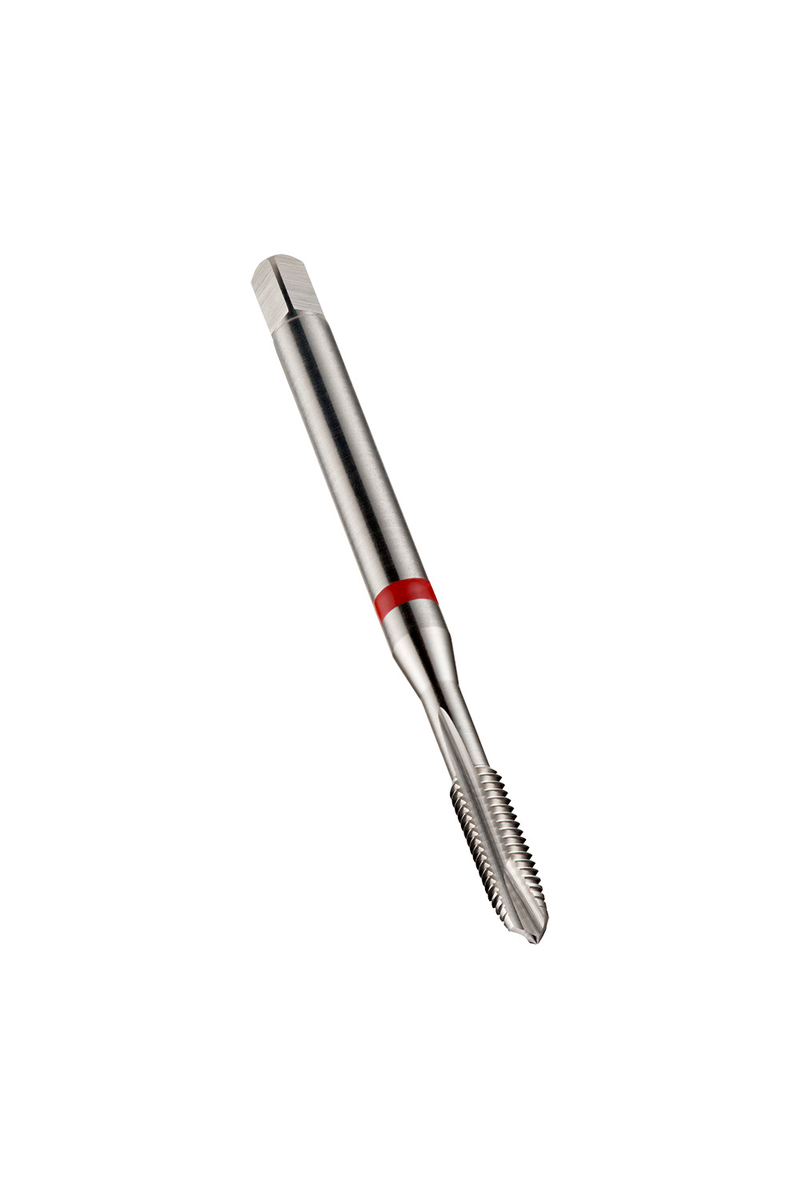

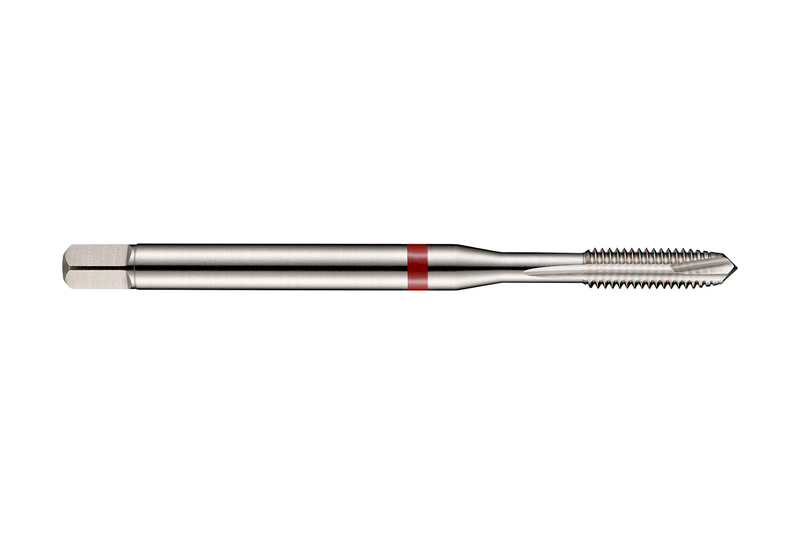

Taraud machine Red Shark à pointe en spirale, chanfrein forme B 3,5-5xP, pour filetage métrique ISO M10 au pas de 1,50 mm et classe de tolérance 6H, dimensions conformes à la norme DIN 371 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS-E métallurgie des poudres avec finition brillante, pour le taraudage de trous débouchants de 2,5xD dans l'acier au carbone, l'acier allié et l'acier à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E255M10
GradeLumineux
Product Number6554486
Product FamilyE255
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554486
EAN7320760674291
File Type Download
E255M10 — Line Drawing PDF Download
