E255M12
E255M12
E255M12

E255M12

UGC DOR6554487
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.06 CAD - $62.06 CAD
$62.06 CAD
$62.06 CAD - $62.06 CAD
$62.06 CAD

Vendu en lots de : 1

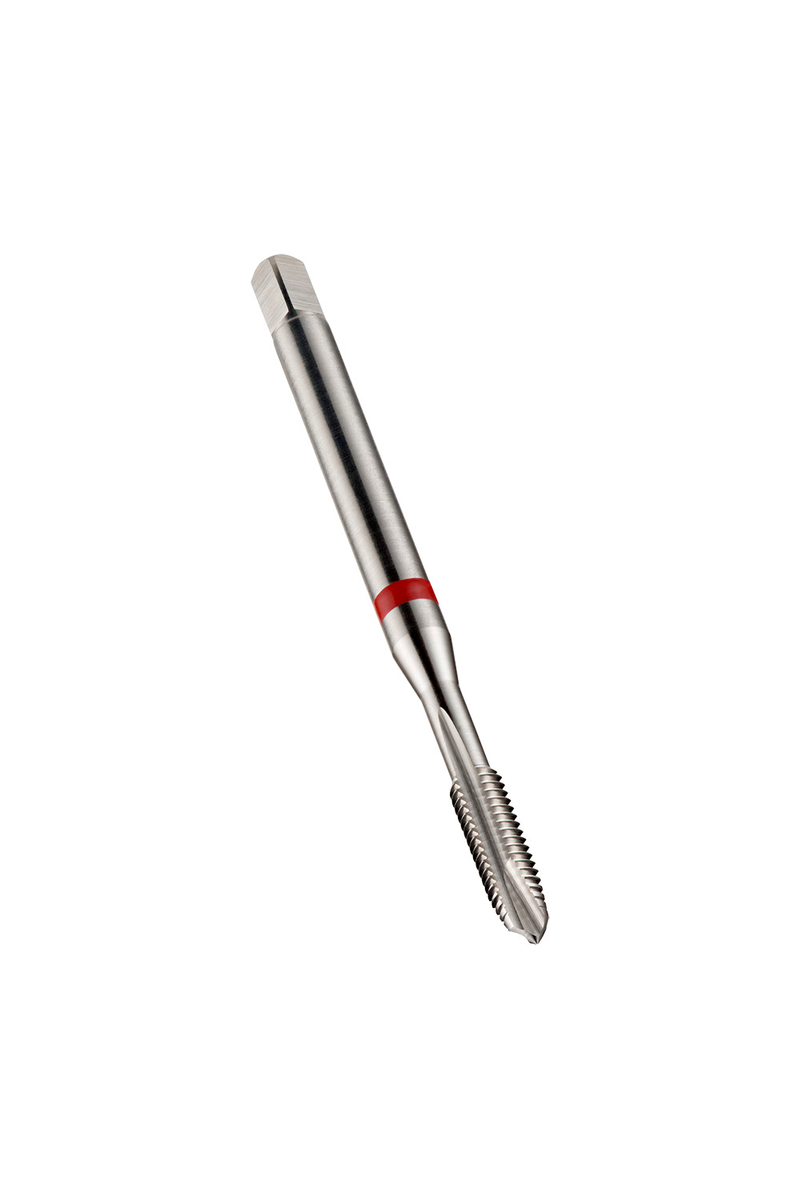

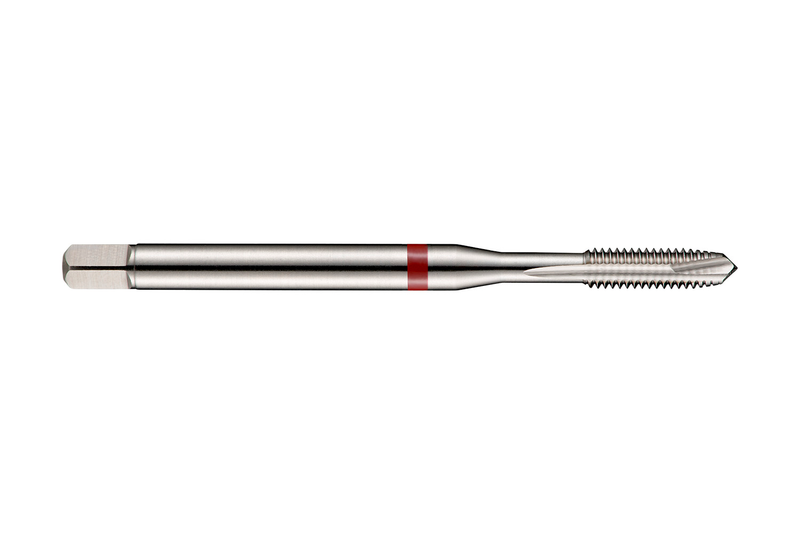

Taraud Red Shark à goujures droites, entrée B de 3.5-5xP, pour filetages ISO-métriques M12 au pas de 1.75 mm et classe de tolérance 6H, dimensions conformes à la norme DIN 376 avec queue de 9.0mm et carré d'entraînement de 7.0mm, en HSS-E fritté avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers non alliés, alliés et à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E255M12
GradeLumineux
Product Number6554487
Product FamilyE255
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554487
EAN7320760674307
File Type Download
E255M12 — Line Drawing PDF Download
