E255M16
E255M16
E255M16

E255M16

UGC DOR6554489
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.64 CAD - $88.64 CAD
$88.64 CAD
$88.64 CAD - $88.64 CAD
$88.64 CAD

Vendu en lots de : 1

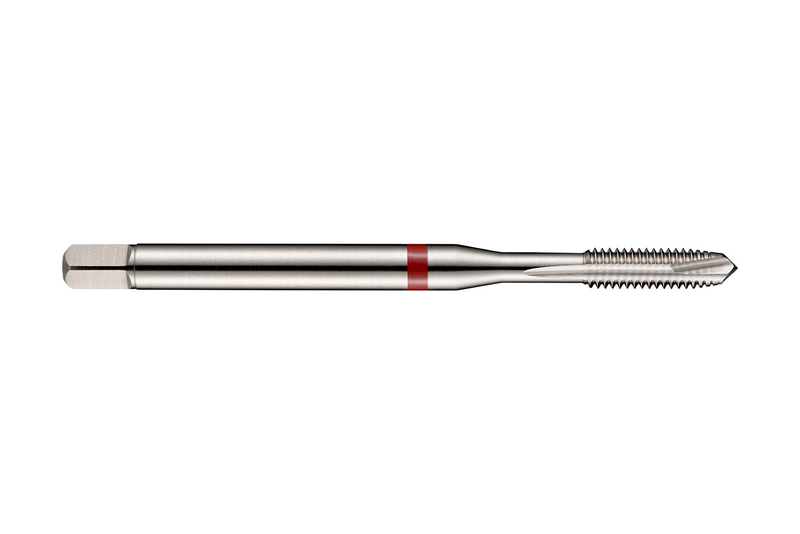

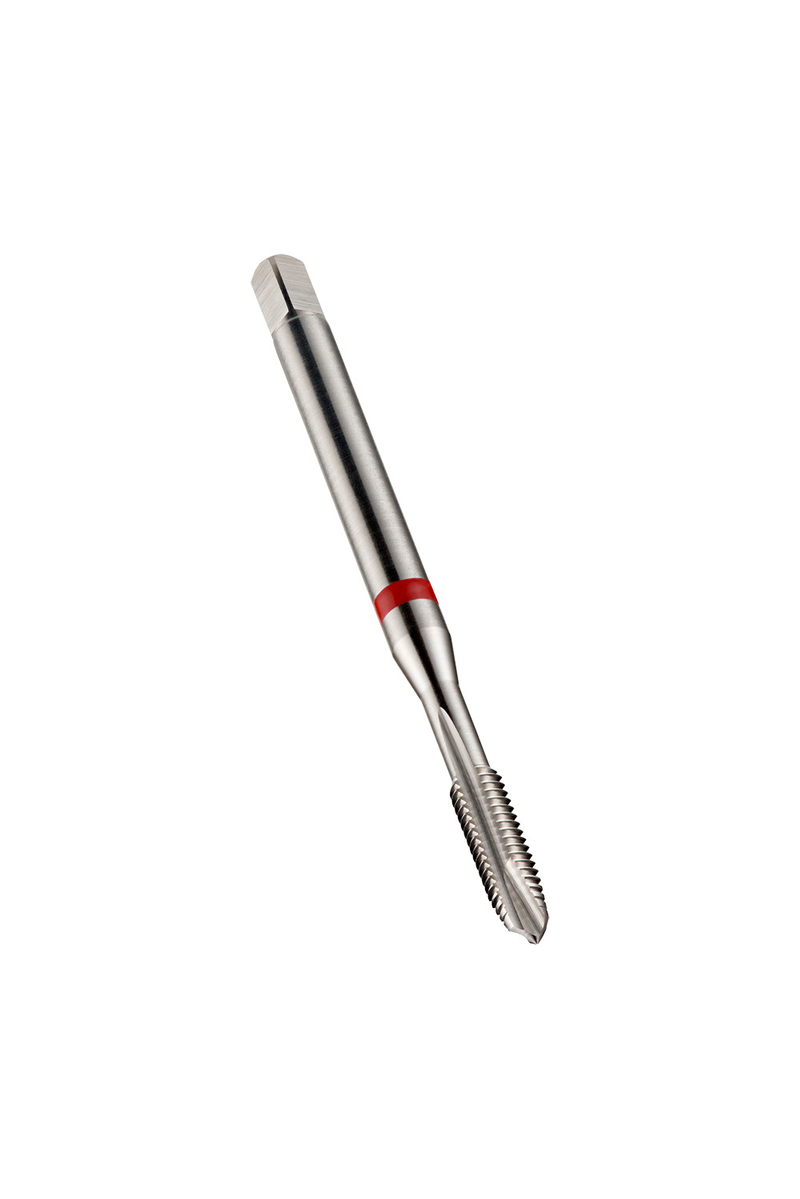

Taraud machine Red Shark à pointe en spirale avec entrée B 3,5-5xP, pour filetage métrique ISO M16 au pas de 2,00 mm et tolérance 6H, dimensions selon la norme DIN 376, avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, en HSS-E fritté avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers non alliés, alliés et à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E255M16
GradeLumineux
Product Number6554489
Product FamilyE255
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554489
EAN7320760674321
File Type Download
E255M16 — Line Drawing PDF Download
