E255M20
E255M20
E255M20

E255M20

UGC DOR6554490
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.10 CAD - $136.10 CAD
$136.10 CAD
$136.10 CAD - $136.10 CAD
$136.10 CAD

Vendu en lots de : 1

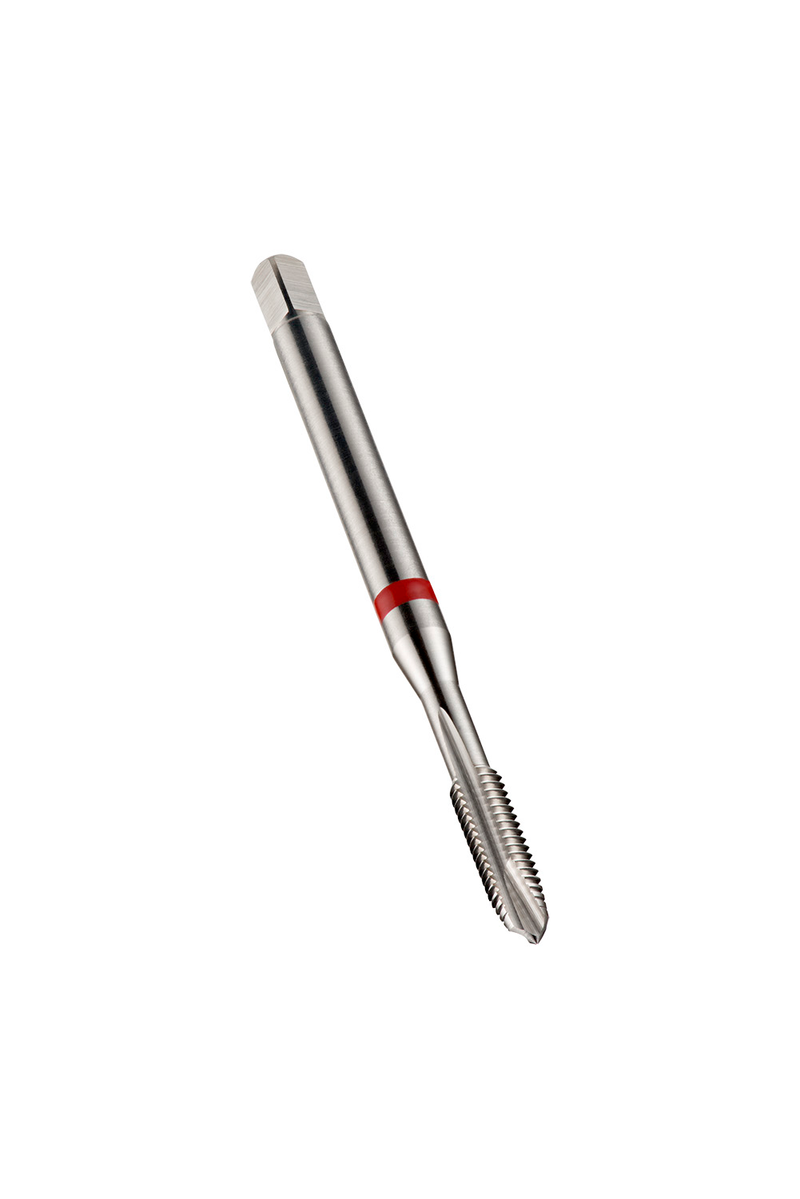

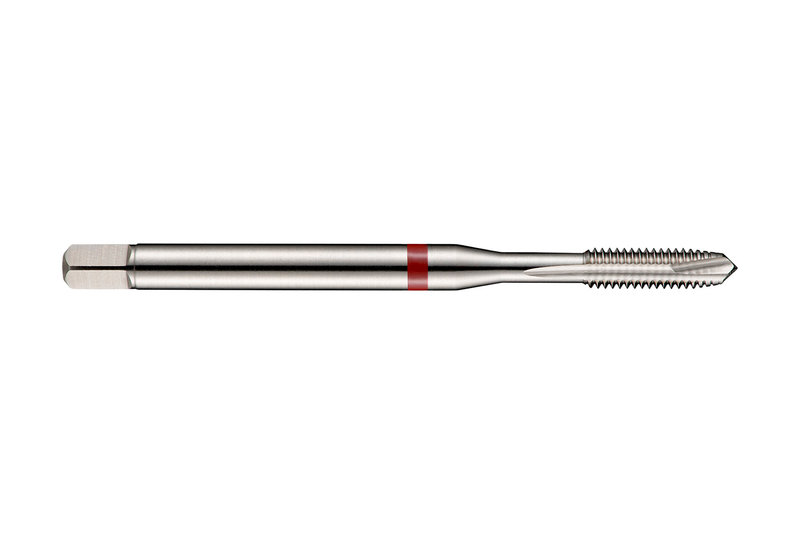

Taraud machine Red Shark à pointe en spirale avec entrée B à 3,5-5xP, pour filetage ISO-métrique M20 au pas de 2,50 mm et tolérance 6H, dimensions conformes à la norme DIN 376 avec queue de 16,0 mm et carré d'entraînement de 12,0 mm, en HSS-E fritté avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans l'acier au carbone non allié, l'acier allié et l'acier à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E255M20
GradeLumineux
Product Number6554490
Product FamilyE255
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankTige cylindrique à embase carrée
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554490
EAN7320760674338
File Type Download
E255M20 — Line Drawing PDF Download
