E256M6
E256M6
E256M6

E256M6

UGC DOR6554494
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.19 CAD - $53.19 CAD
$53.19 CAD
$53.19 CAD - $53.19 CAD
$53.19 CAD

Vendu en lots de : 1

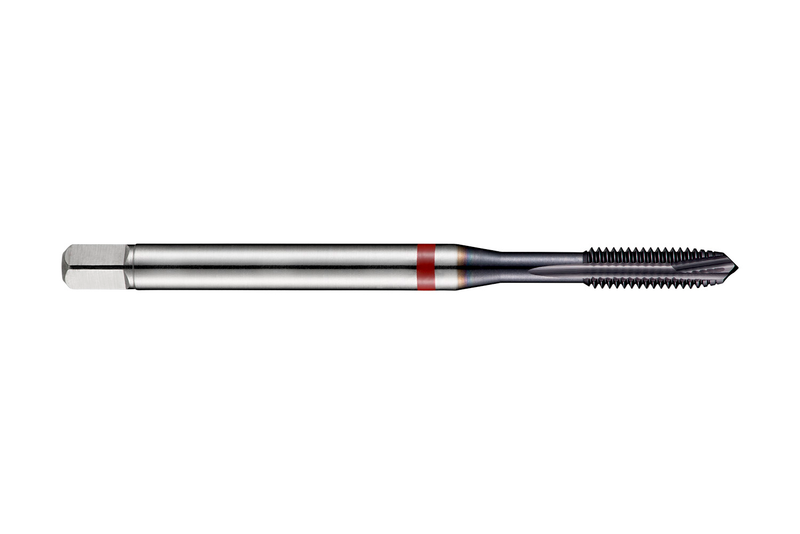

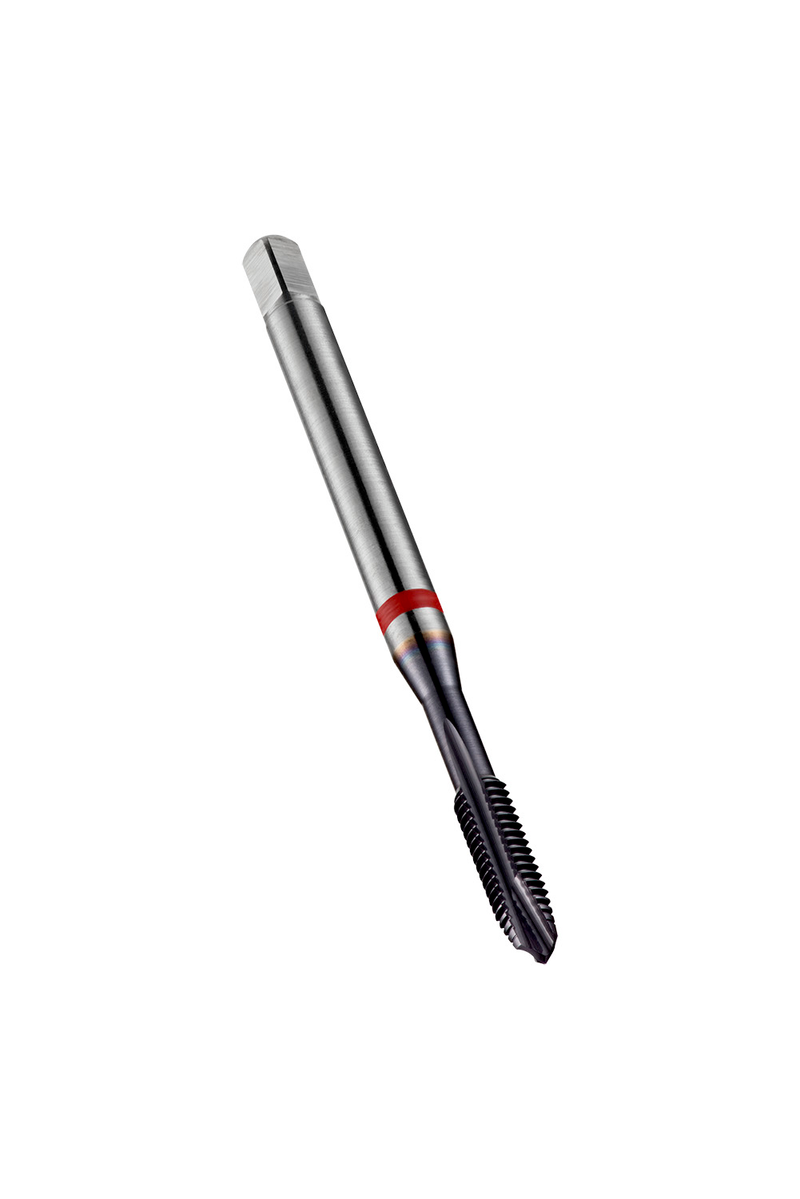

Taraud machine Red Shark à pointe en spirale, forme B avec un goujure de 3.5-5xP, pour filetage métrique ISO M6 avec un pas de 1.00 mm et une classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 6.0mm et carré d'entraînement de 4.9mm, en HSS-E (acier rapide cobalt) métallurgie des poudres avec revêtement TiAlN-Top pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers non alliés, alliés et outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E256M6
GradeTiAlN/Top
Product Number6554494
Product FamilyE256
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554494
EAN7320760674376
File Type Download
E256M6 — Line Drawing PDF Download
