E256M12
E256M12
E256M12

E256M12

UGC DOR6554497
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$95.94 CAD - $95.94 CAD
$95.94 CAD
$95.94 CAD - $95.94 CAD
$95.94 CAD

Vendu en lots de : 1

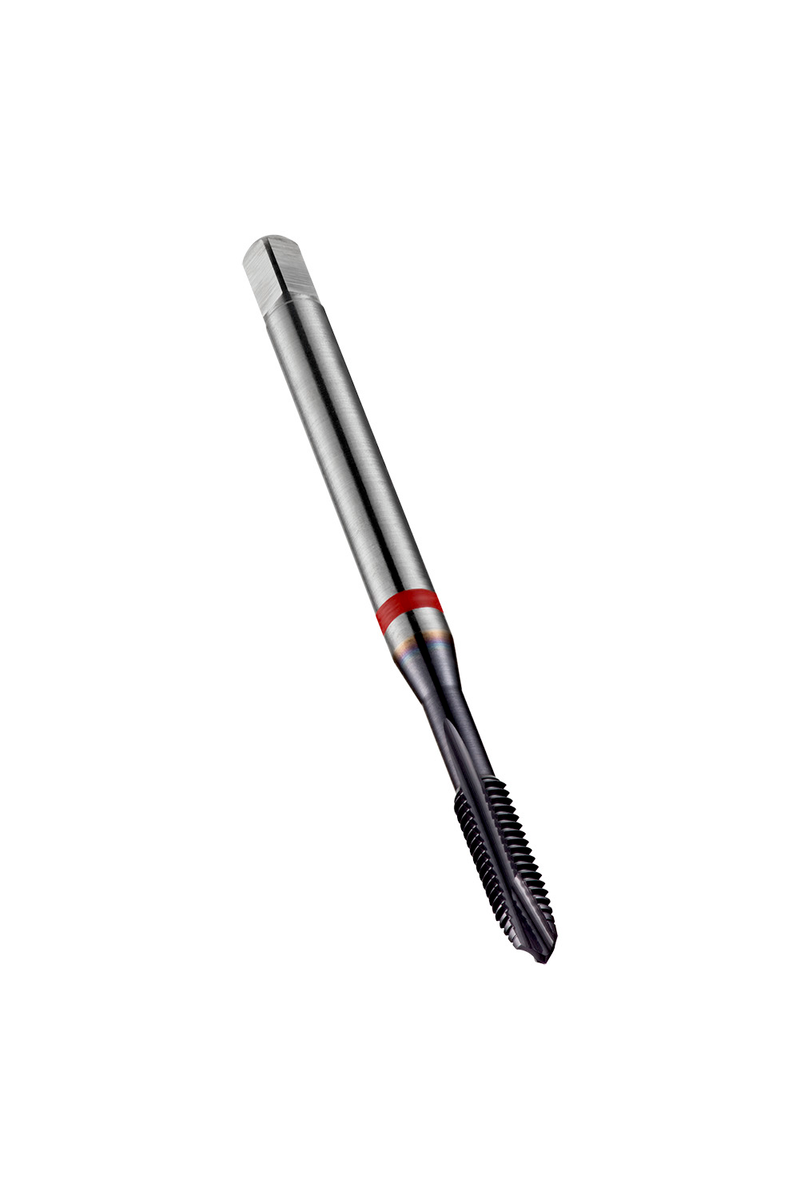

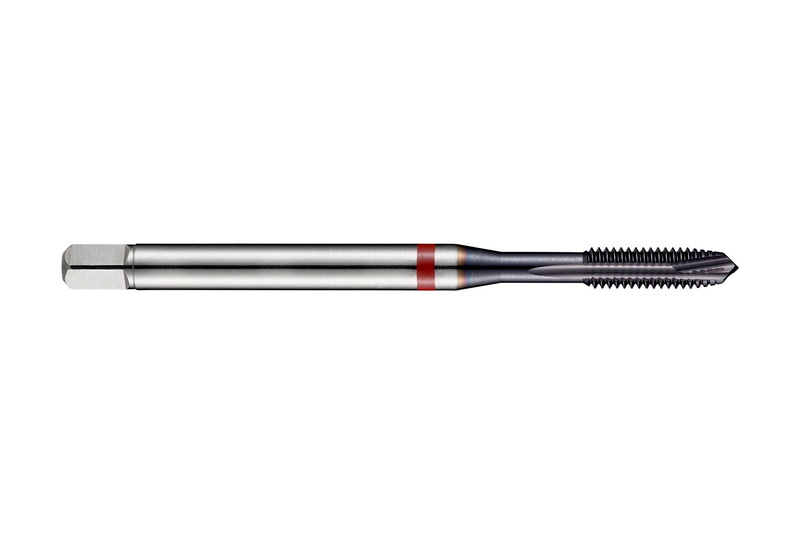

Taraud Red Shark à goujure spirale avec entrée B à 3,5-5 filets pour filetage métrique ISO M12 au pas de 1,75 mm et classe de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E métallurgie des poudres avec revêtement TiAlN-Top pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers non alliés, aciers alliés et aciers à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E256M12
GradeTiAlN/Sommet
Product Number6554497
Product FamilyE256
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554497
EAN7320760674406
File Type Download
E256M12 — Line Drawing PDF Download
