UGC DOR6554515
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.69 CAD - $89.69 CAD
$89.69 CAD
$89.69 CAD - $89.69 CAD
$89.69 CAD

Vendu en lots de : 1

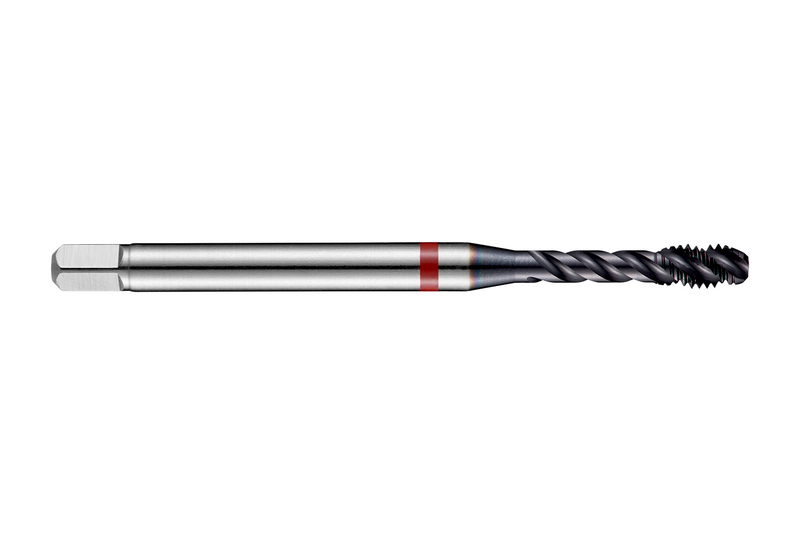

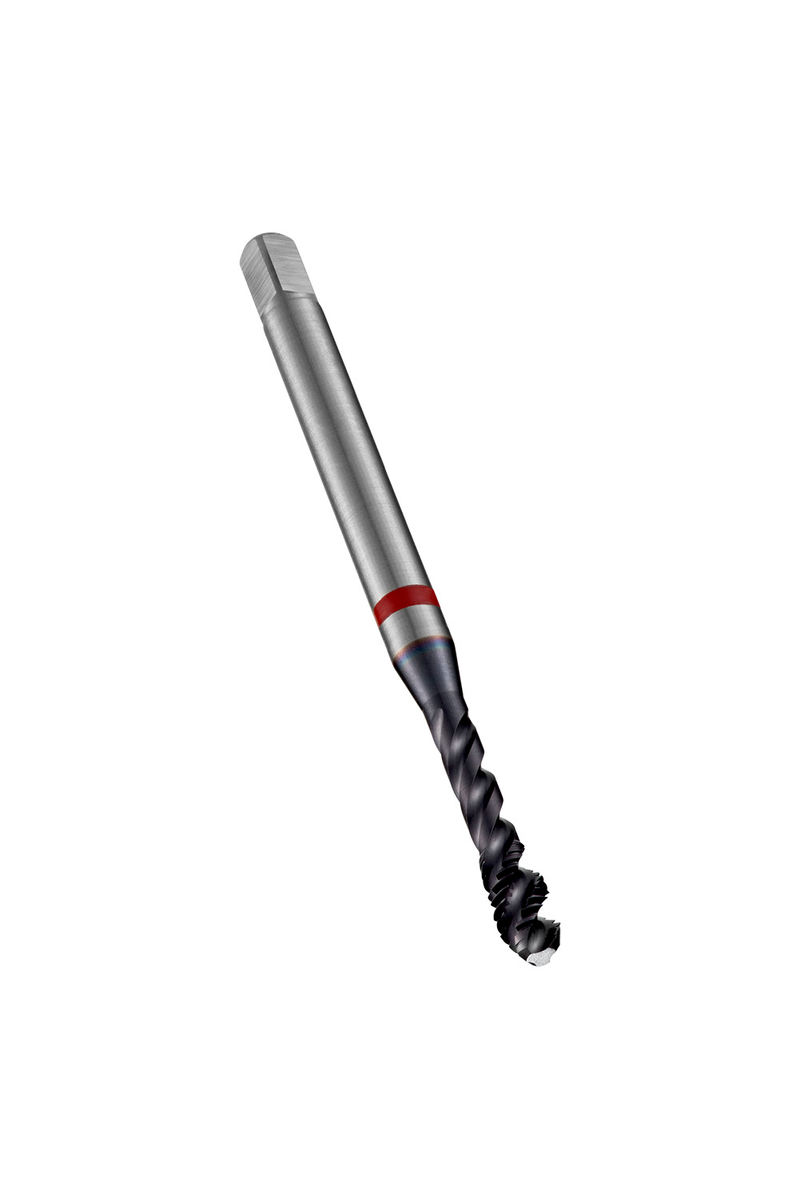

Taraud à gorge hélicoïdale Red Shark avec une entrée C (2-3 filets) pour filetage métrique ISO M10 au pas de 1,50 mm et tolérance 6H, dimensions selon la norme DIN 371 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS-E fritté avec revêtement TiAlN-Top et angle d'hélice de 45° pour un taraudage de 2,5xD dans des aciers non alliés, aciers alliés et aciers à outils.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E261M10
GradeTiAlN/Sommet
Product Number6554515
Product FamilyE261
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554515
EAN7320760674581
File Type Download

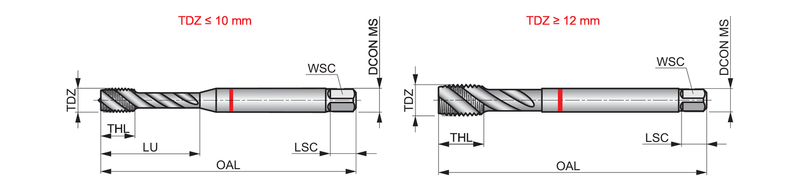

E261M10 — Line Drawing PDF Download
