E261M16
E261M16
E261M16

E261M16

UGC DOR6554517
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$166.34 CAD - $166.34 CAD
$166.34 CAD
$166.34 CAD - $166.34 CAD
$166.34 CAD

Vendu en lots de : 1

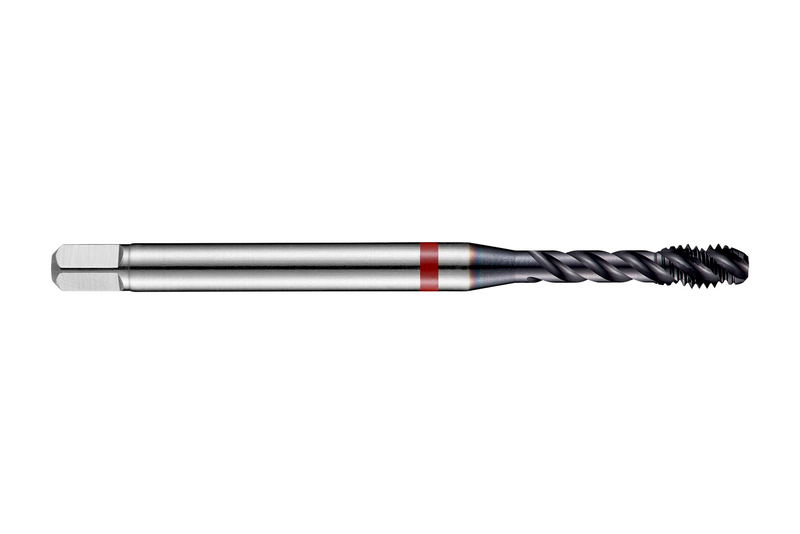

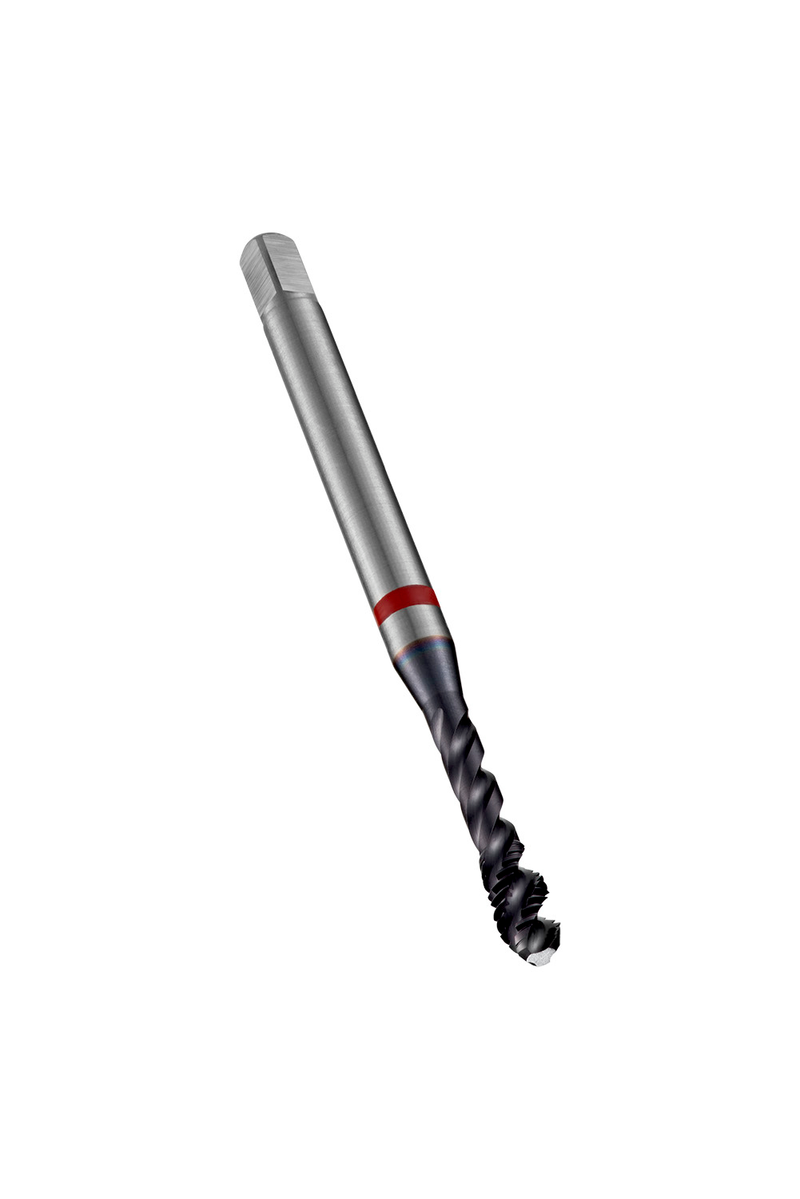

Taraud machine Red Shark à coupe spirale, forme C avec entrée 2-3xP, pour filetage métrique ISO M16 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon norme DIN 376 avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, en HSS-E fritté avec revêtement TiAlN-Top et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2,5xD dans les aciers non alliés, alliés et à outils

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E261M16
GradeTiAlN/Sommet
Product Number6554517
Product FamilyE261
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554517
EAN7320760674604
File Type Download

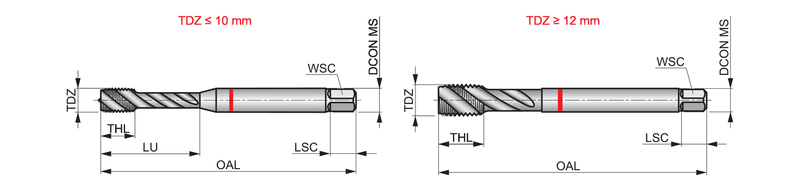

E261M16 — Line Drawing PDF Download
