E471M16
E471M16
E471M16

E471M16

UGC DOR6554528
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.64 CAD - $88.64 CAD
$88.64 CAD
$88.64 CAD - $88.64 CAD
$88.64 CAD

Vendu en lots de : 1

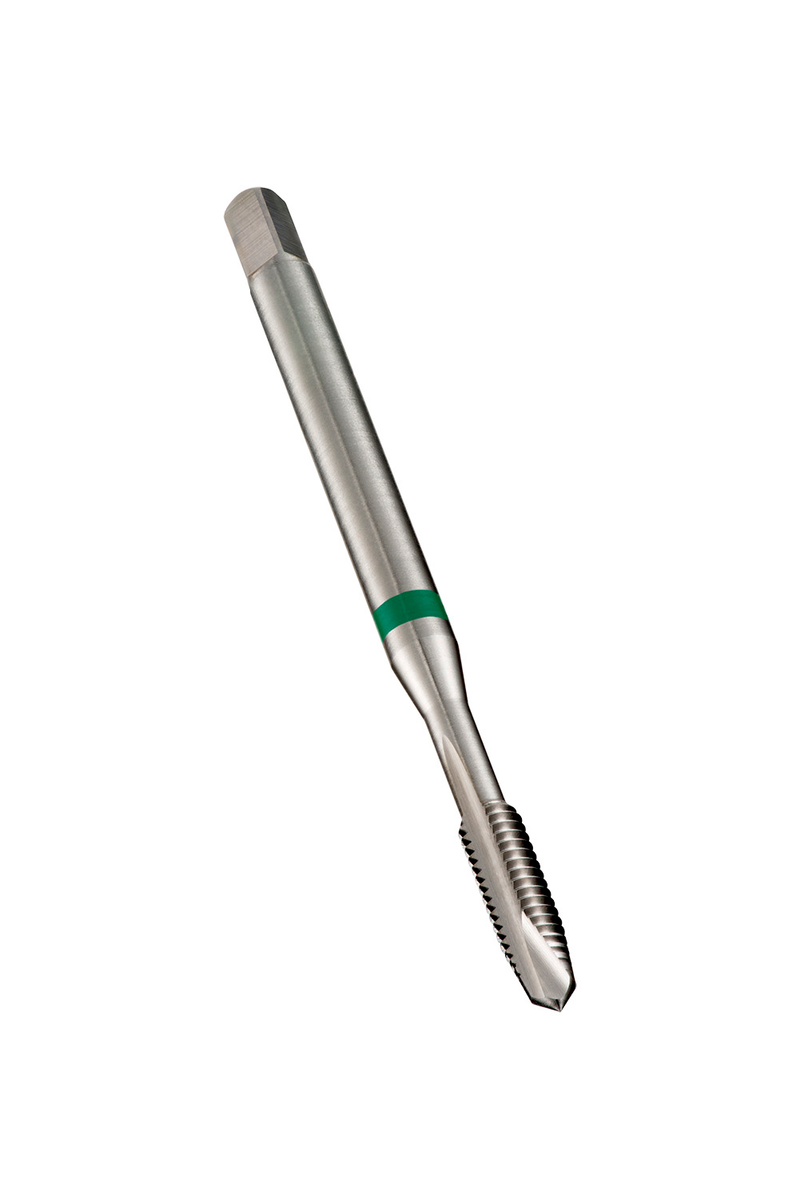

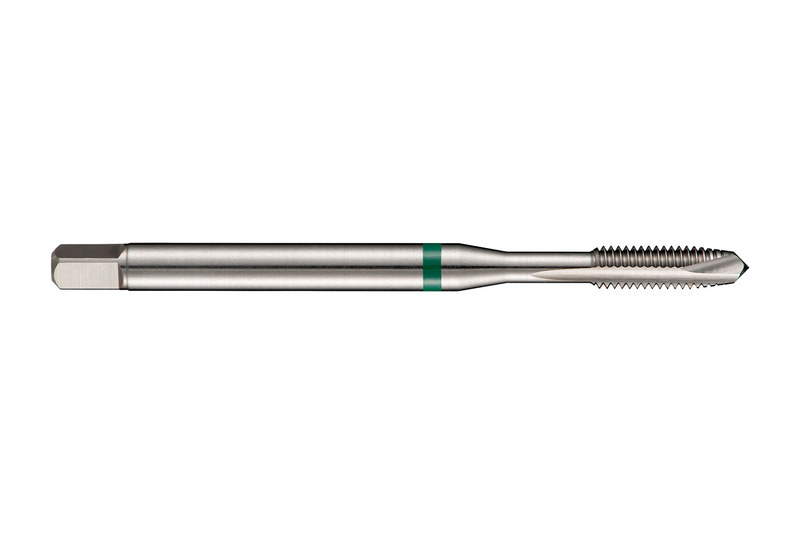

Taraud machine Green Shark à pointe hélicoïdale avec entrée forme B à 3.5-5xP, pour filetage métrique ISO M16 au pas de 2,00 mm et de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, en HSS-E issu de la métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E471M16
GradeLumineux
Product Number6554528
Product FamilyE471
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554528
EAN7320760674697
File Type Download
E471M16 — Line Drawing PDF Download
