UGC DOR6554529
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.10 CAD - $136.10 CAD
$136.10 CAD
$136.10 CAD - $136.10 CAD
$136.10 CAD

Vendu en lots de : 1

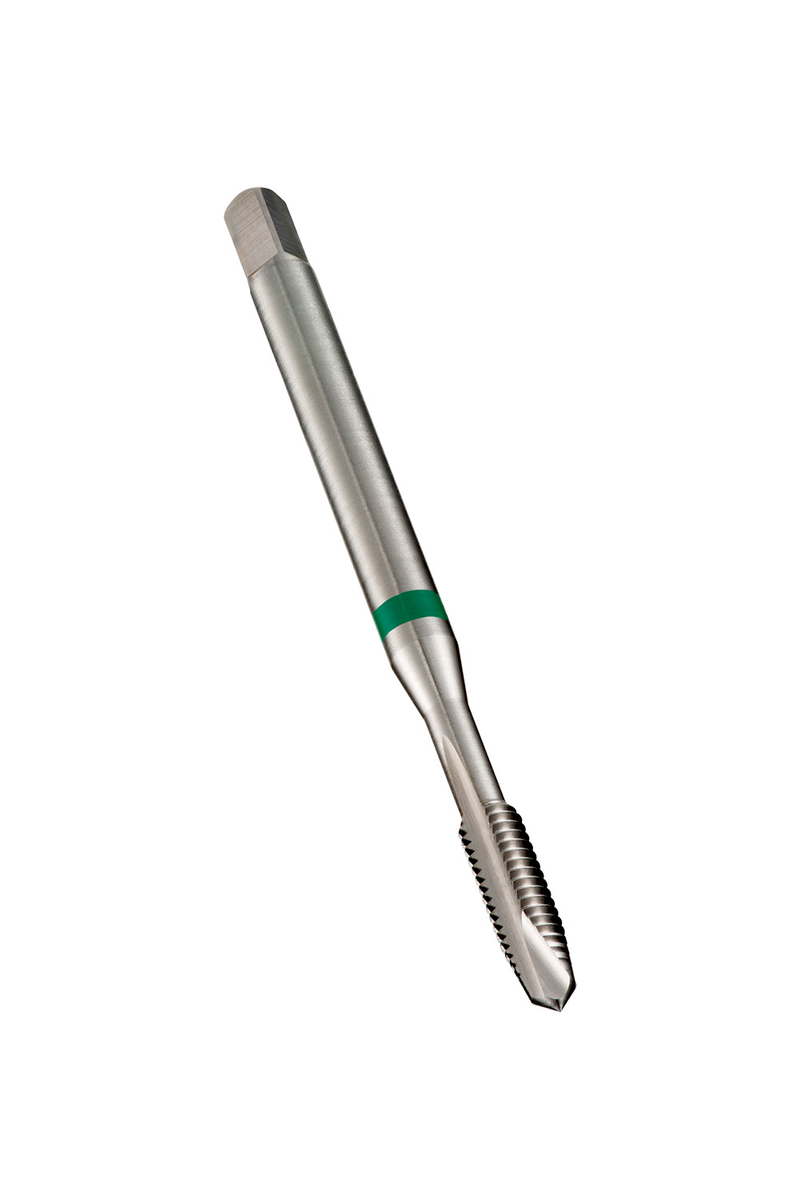

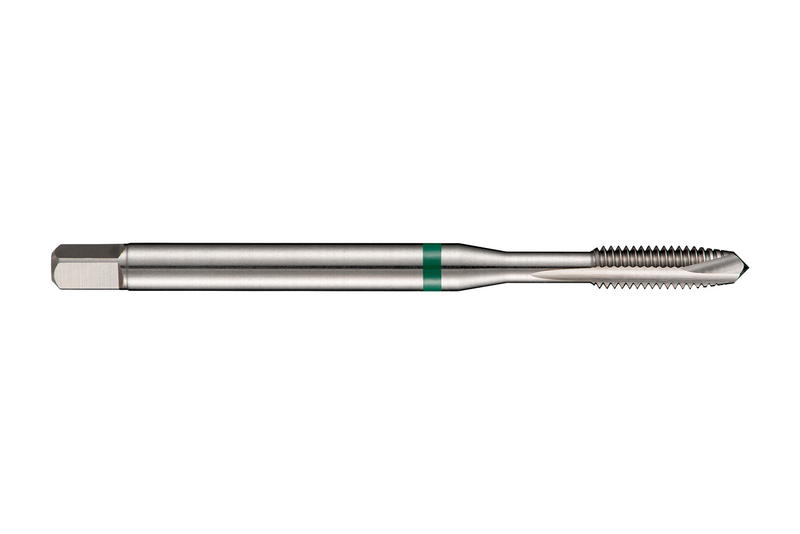

Taraud machine Green Shark à pointe hélicoïdale avec entrée forme B à 3.5-5xP, pour filet ISO-Métrique M20 au pas de 2.50 mm et qualité 6H, dimensions selon norme DIN 376 avec queue de 16.0mm et carré d'entraînement de 12.0mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E471M20
GradeLumineux
Product Number6554529
Product FamilyE471
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554529
EAN7320760674703
File Type Download
E471M20 — Line Drawing PDF Download
