E472M5
E472M5
E472M5

E472M5

UGC DOR6554532
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.19 CAD - $53.19 CAD
$53.19 CAD
$53.19 CAD - $53.19 CAD
$53.19 CAD

Vendu en lots de : 1

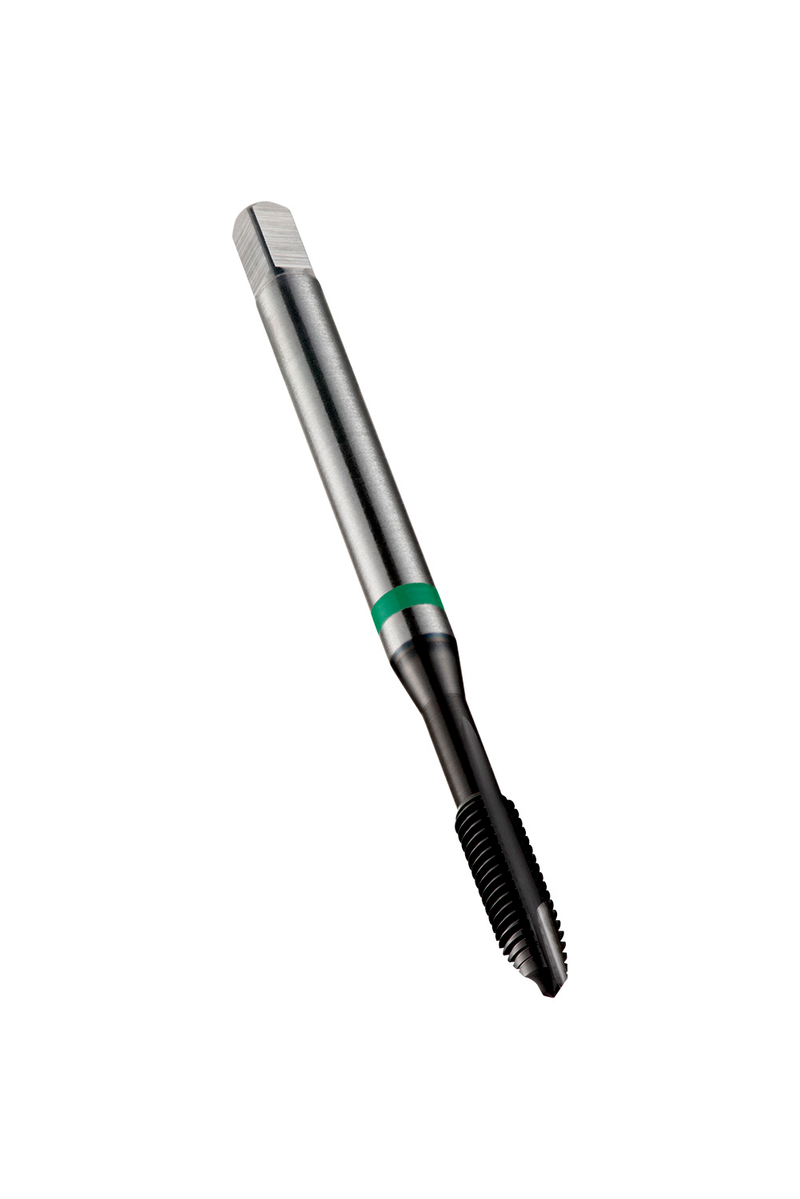

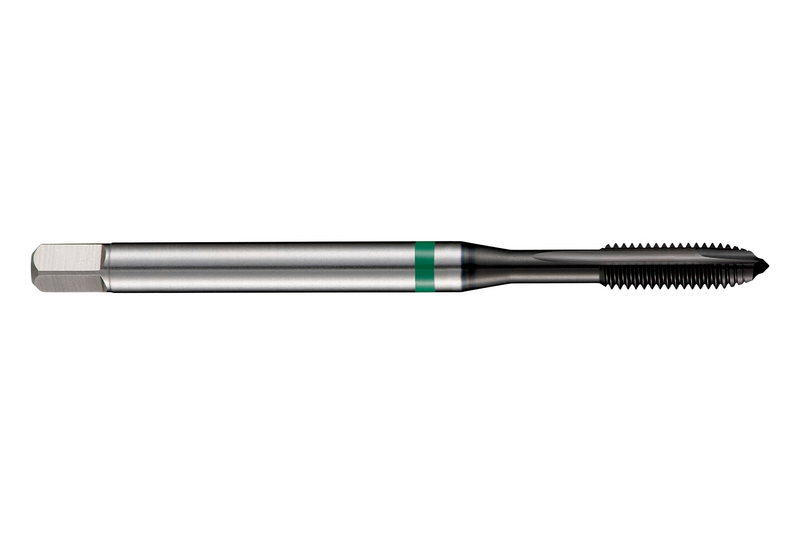

Taraud machine Green Shark à pointe spirale avec entrée B à 3.5-5xP, pour filetage métrique ISO M5 au pas de 0.80 mm et tolérance 6H, dimensions selon la norme DIN 371 avec queue de 6.0mm et carré d'entraînement de 4.9mm, en HSS-E fritté avec revêtement Super-B pour le taraudage de trous débouchants jusqu'à 2.5xD dans l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E472M5
GradeSUPER-B
Product Number6554532
Product FamilyE472
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554532
EAN7320760674734
File Type Download
E472M5 — Line Drawing PDF Download
