E472M20
E472M20
E472M20

E472M20

UGC DOR6554538
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$210.66 CAD - $210.66 CAD
$210.66 CAD
$210.66 CAD - $210.66 CAD
$210.66 CAD

Vendu en lots de : 1

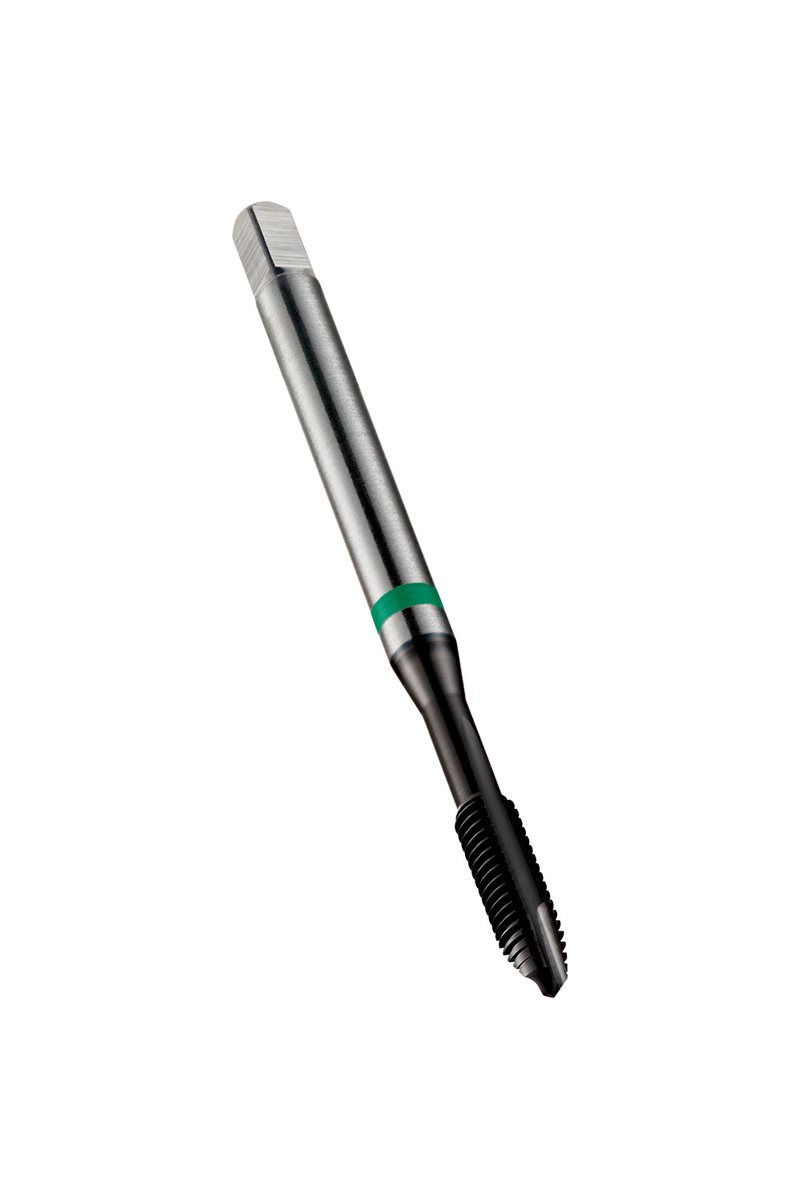

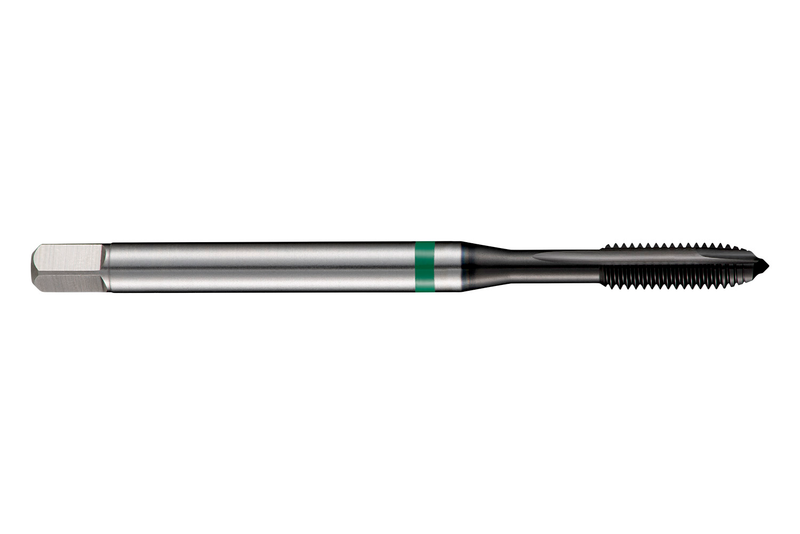

Taraud machine Green Shark à pointe spirale, forme B d'entrée 3.5-5xP, pour filetages ISO-métriques M20 au pas de 2.50 mm, classe de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 16.0mm et carré d'entraînement de 12.0mm, en HSS-E fritté avec revêtement Super-B pour la réalisation de filetages débouchants jusqu'à 2.5xD dans l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E472M20
GradeSUPER-B
Product Number6554538
Product FamilyE472
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46554538
EAN7320760674796
File Type Download
E472M20 — Line Drawing PDF Download
