UGC DOR6554539
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.14 CAD - $35.14 CAD
$35.14 CAD
$35.14 CAD - $35.14 CAD
$35.14 CAD

Vendu en lots de : 1

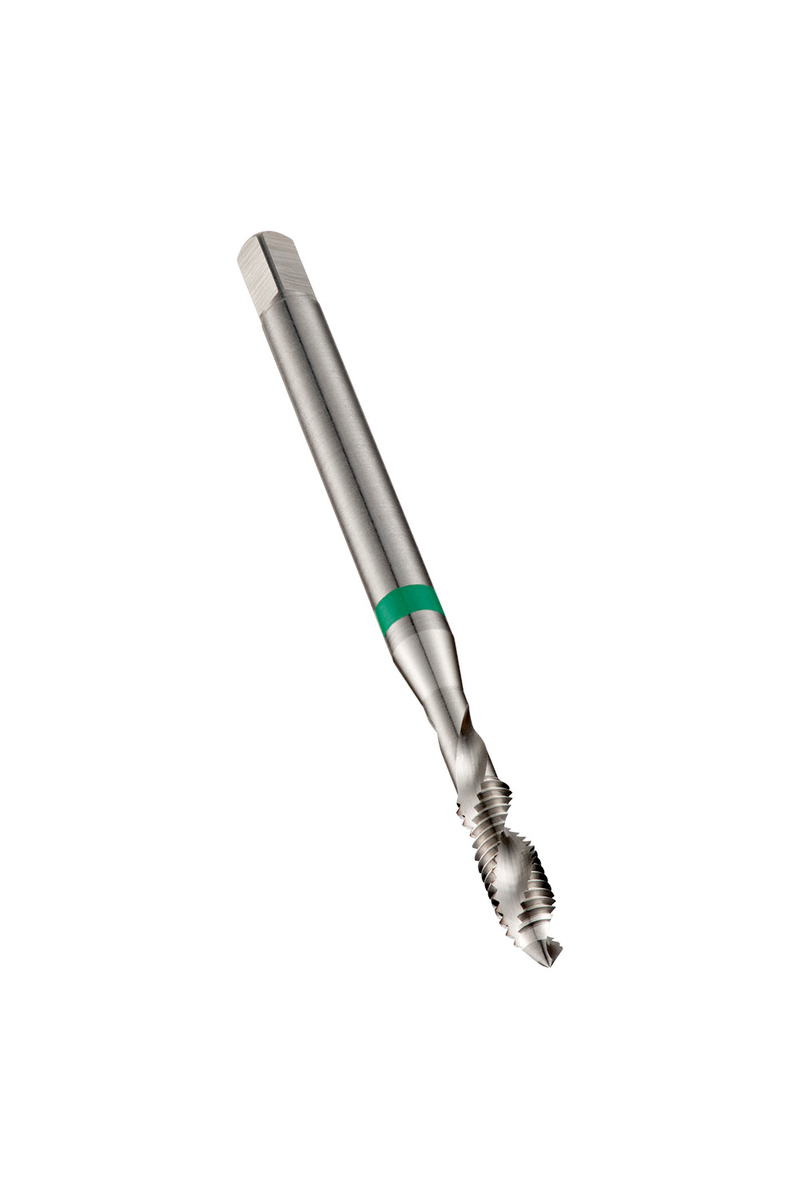

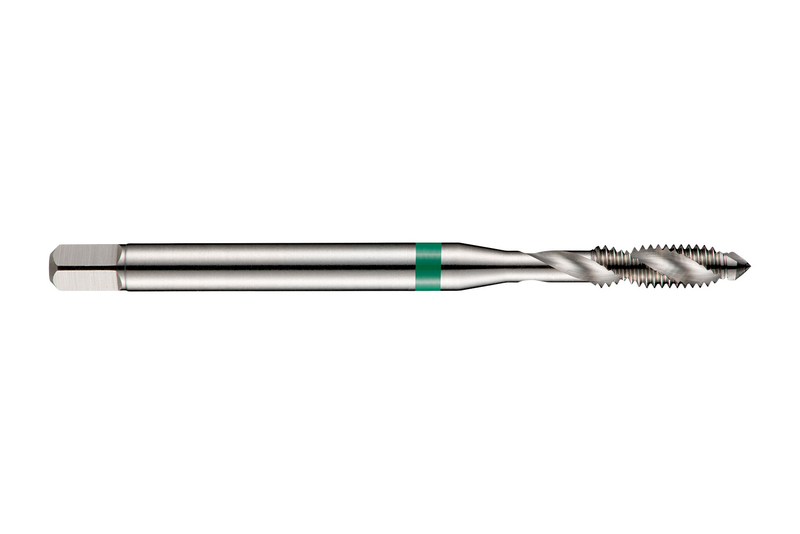

Taraud à spirale Green Shark forme C avec une entrée de 2-3 filets, pour filetage ISO-Métrique M3 avec un pas de 0,50 mm et une tolérance 6H, dimensions selon la norme DIN 371 avec queue de 3,5 mm et carré d'entraînement de 2,7 mm, en HSS-E (acier rapide fritté) finition brillante et hélice de 35° pour le taraudage de trous borgnes jusqu'à 2,5xD dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E473M3
GradeLumineux
Product Number6554539
Product FamilyE473

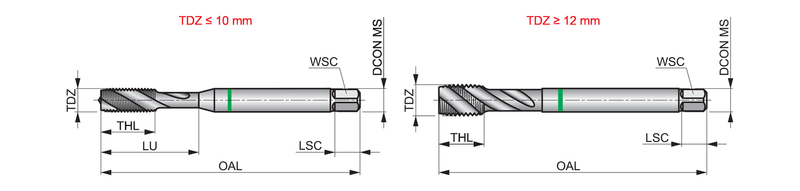

Dimensions
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)2
Helix Angle (FHA)35.0°
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554539
EAN7320760674802
File Type Download
E473M3 — Line Drawing PDF Download
