E473M5
E473M5
E473M5

E473M5

UGC DOR6554541
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.86 CAD - $37.86 CAD
$37.86 CAD
$37.86 CAD - $37.86 CAD
$37.86 CAD

Vendu en lots de : 1

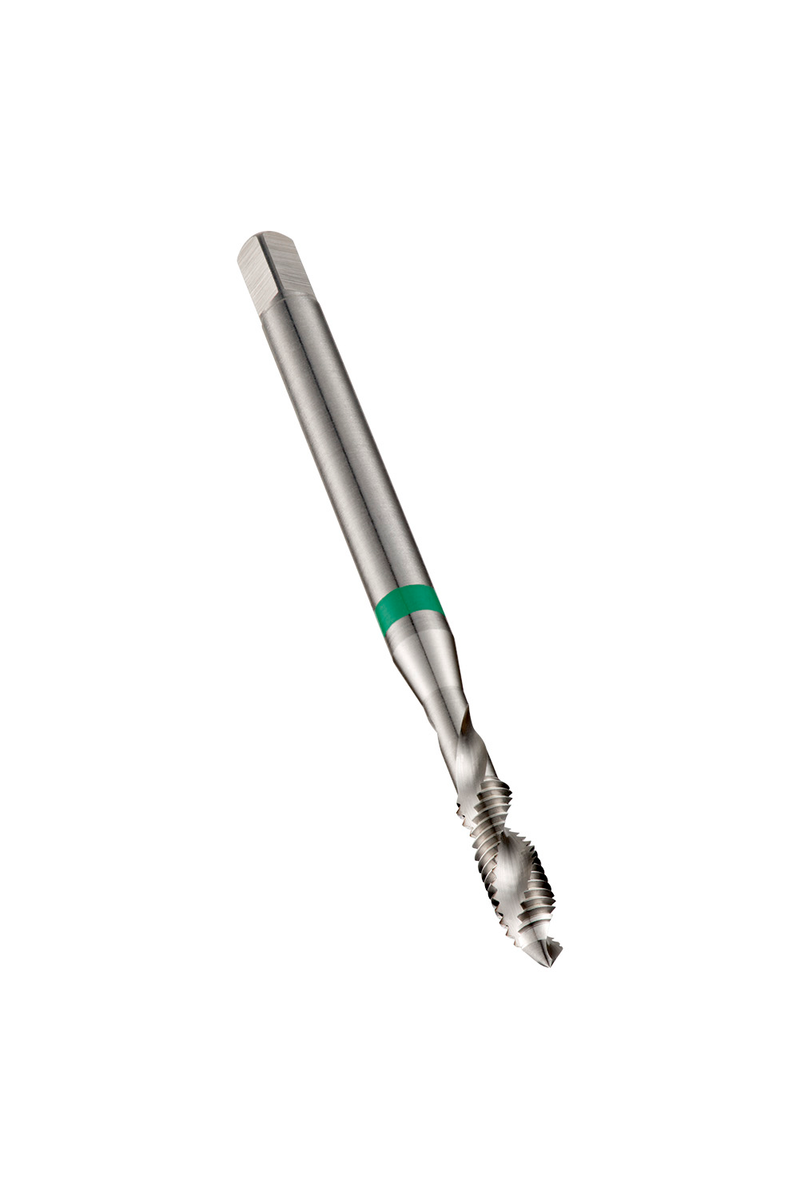

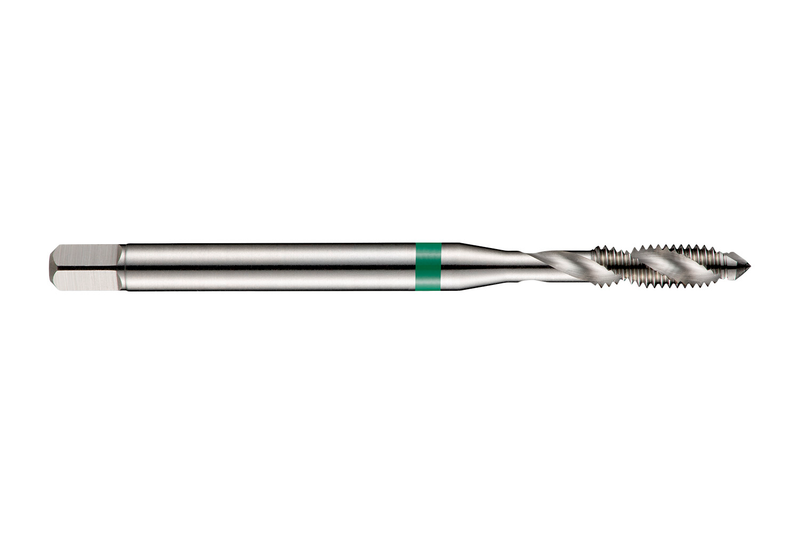

Taraud à gorge hélicoïdale Green Shark avec entrée C avec une longueur de 2 à 3 filets, pour filetage ISO-métrique M5 au pas de 0,80 mm et tolérance 6H, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E fritté avec finition brillante et angle d'hélice de 35° pour taraudage de trous borgnes jusqu'à 2,5xD dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E473M5
GradeLumineux
Product Number6554541
Product FamilyE473

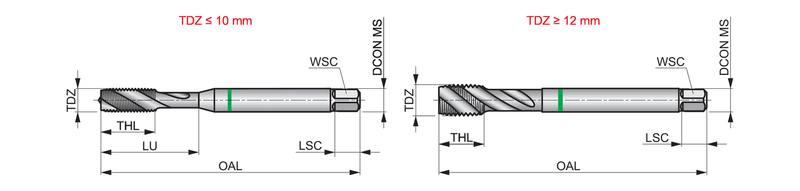

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)35.0°
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas métrique grossier
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554541
EAN7320760674826
File Type Download
E473M5 — Line Drawing PDF Download
