UGC DOR6554544
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.67 CAD - $52.67 CAD
$52.67 CAD
$52.67 CAD - $52.67 CAD
$52.67 CAD

Vendu en lots de : 1

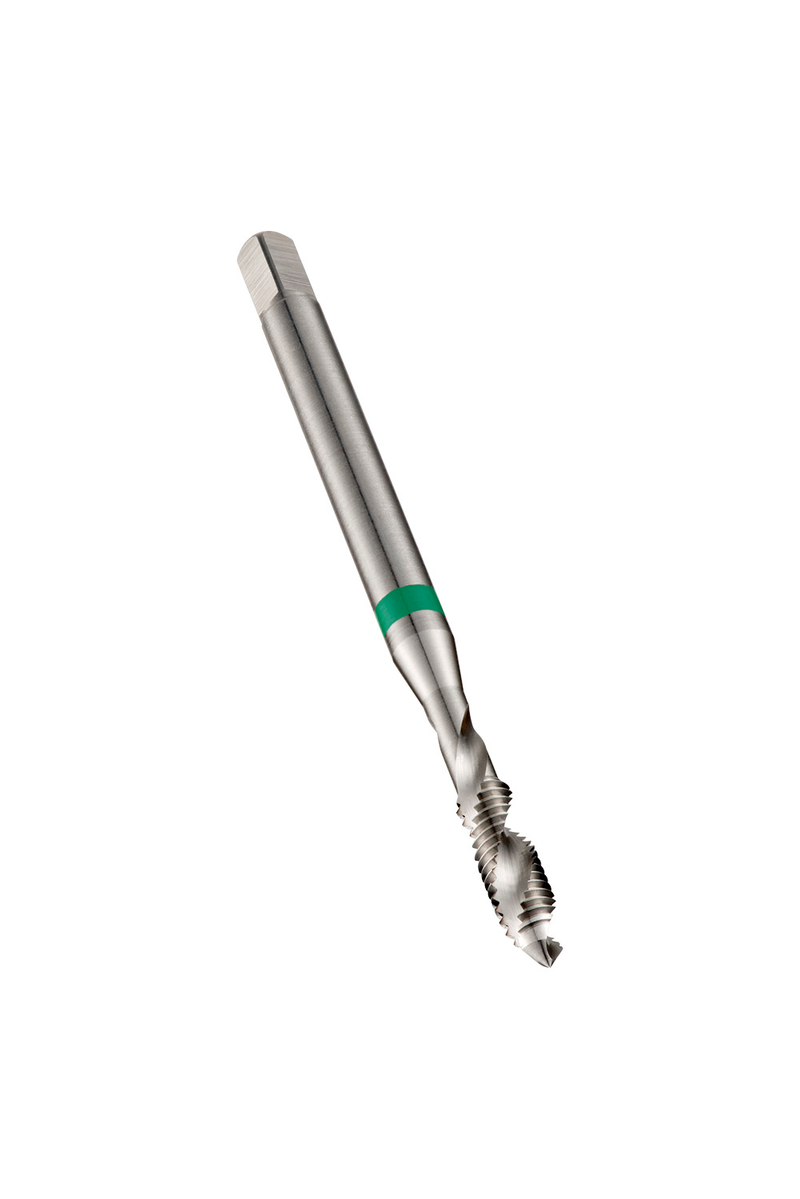

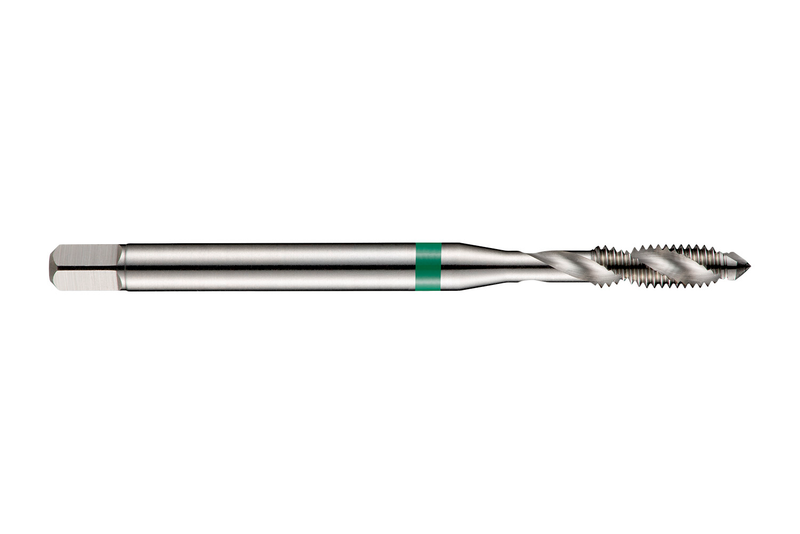

Taraud à coupe spirale Green Shark, forme de chanfrein C avec une entrée 2-3xP, pour filet ISO-métrique M10 au pas de 1,50 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec un queue de 10,0 mm et un carré d'entraînement de 8,0 mm, en HSS-E métallurgie des poudres avec finition brillante et hélice de 35° pour le taraudage de trous borgnes jusqu'à 2,5xD dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E473M10
GradeLumineux
Product Number6554544
Product FamilyE473

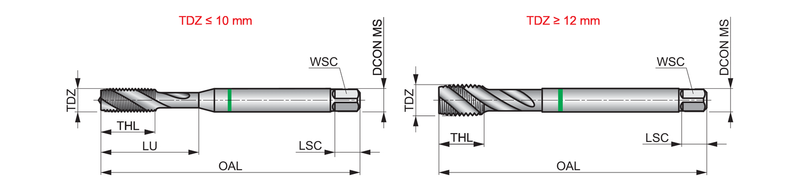

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)35.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554544
EAN7320760674857
File Type Download
E473M10 — Line Drawing PDF Download
