UGC DOR6554548
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.80 CAD - $55.80 CAD
$55.80 CAD
$55.80 CAD - $55.80 CAD
$55.80 CAD

Vendu en lots de : 1

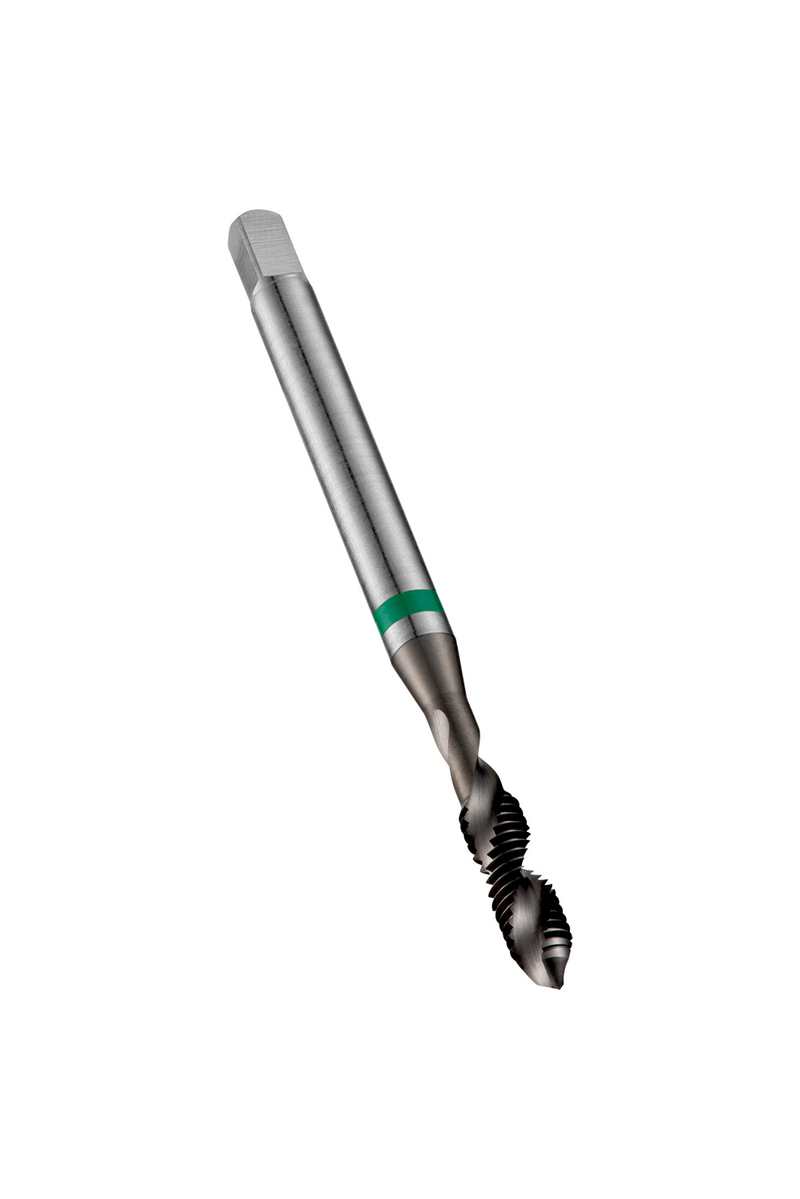

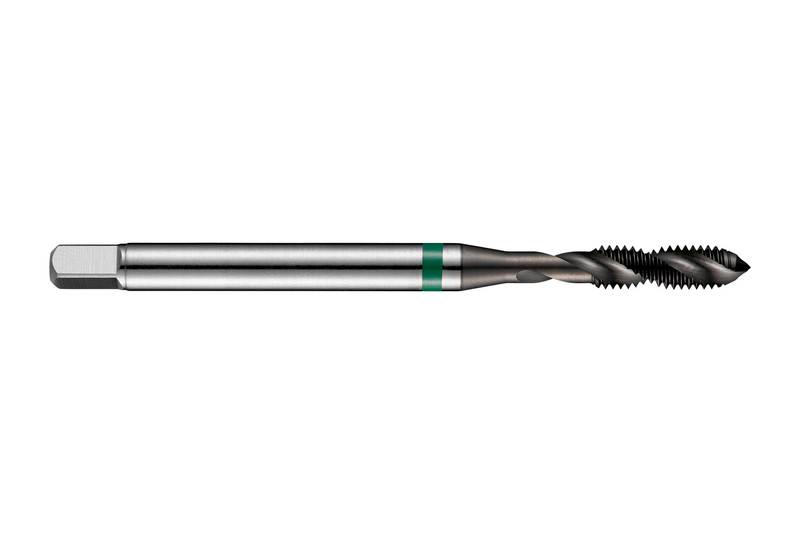

Taraud à spirale Green Shark avec entrée C, filetage M3 au pas de 0,50 mm, tolérance 6H, queue de 3,5 mm et carré d'entraînement de 2,7 mm selon DIN 371, en acier rapide fritté HSS-E avec revêtement Super-B et un angle d'hélice de 35° pour le taraudage de trous borgnes jusqu'à 2,5xD dans l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E474M3
GradeSUPER-B
Product Number6554548
Product FamilyE474

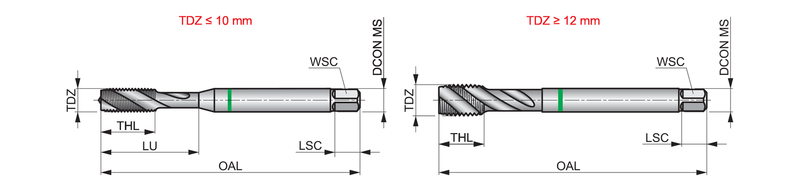

Dimensions
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)2
Helix Angle (FHA)35.0°
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankTige cylindrique à embase carrée
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554548
EAN7320760674895
File Type Download
E474M3 — Line Drawing PDF Download
