E390M6
E390M6
E390M6

E390M6

UGC DOR6554580
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.79 CAD - $50.79 CAD
$50.79 CAD
$50.79 CAD - $50.79 CAD
$50.79 CAD

Vendu en lots de : 1

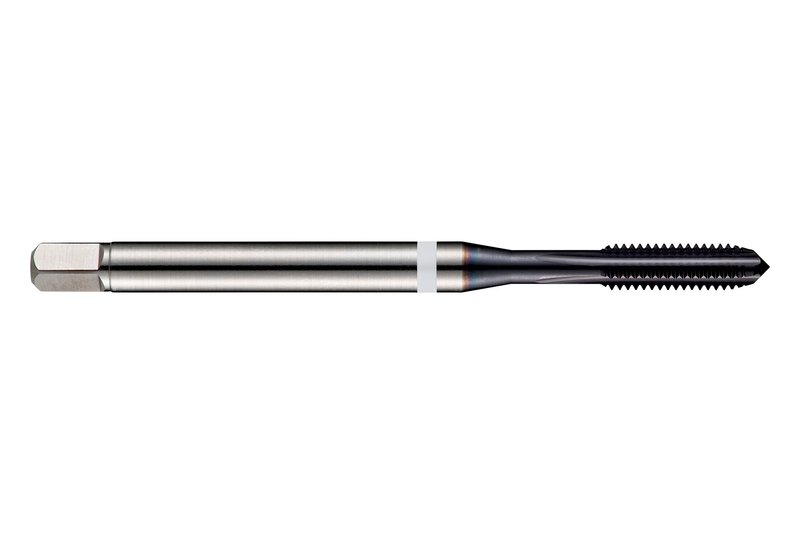

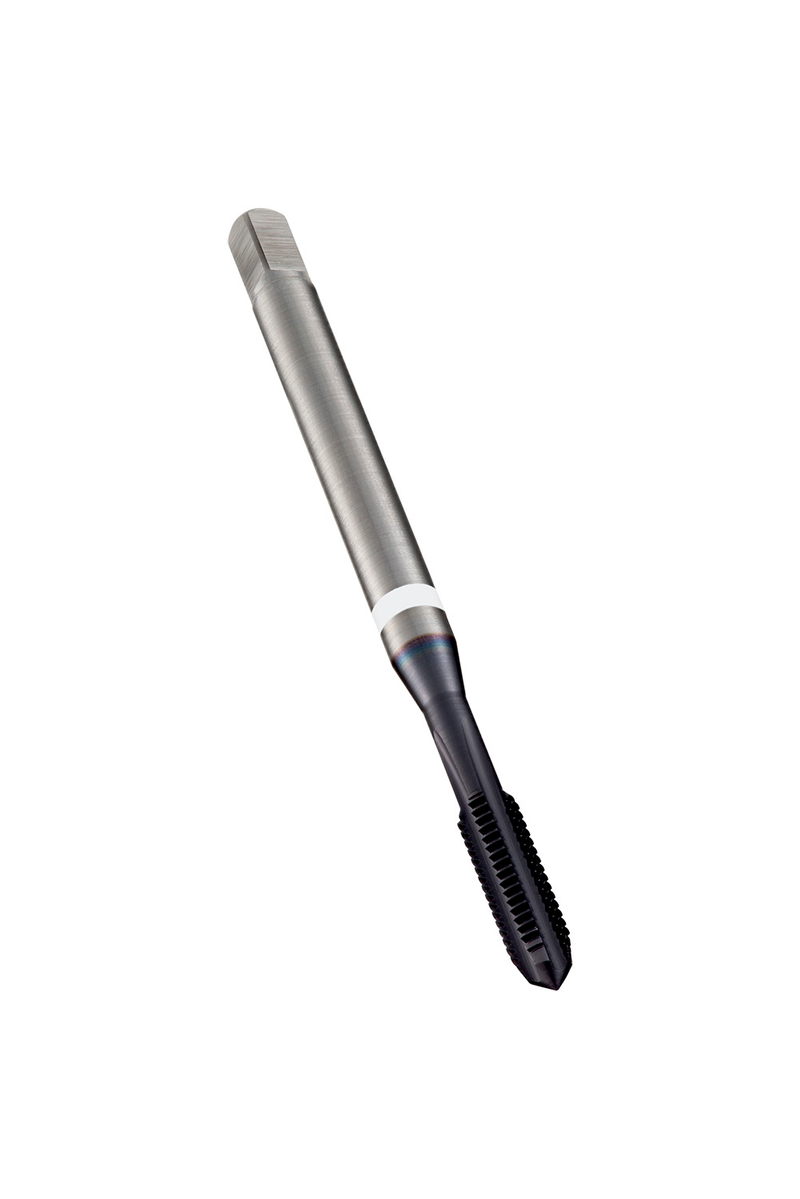

Taraud à flûte droite White Shark, forme C avec entrée de 2-3 filets, pour filet métrique ISO M6 au pas de 1,00 mm et classe de tolérance 6HX, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E fritté avec revêtement TiAlN pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans la fonte grise, la fonte malléable, la fonte ductile, la fonte à graphite compacté et les polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E390M6
GradeTiAlN
Product Number6554580
Product FamilyE390

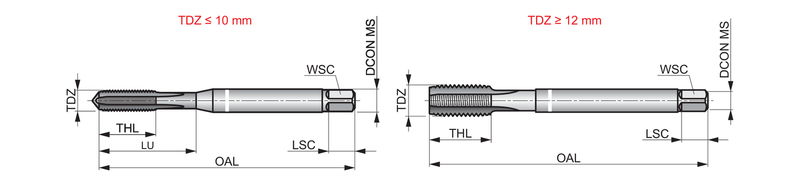

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554580
EAN7320760675014
File Type Download
E390M6 — Line Drawing PDF Download
