UGC DOR6706475
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.81 CAD - $79.81 CAD
$79.81 CAD
$79.81 CAD - $79.81 CAD
$79.81 CAD

Vendu en lots de : 1

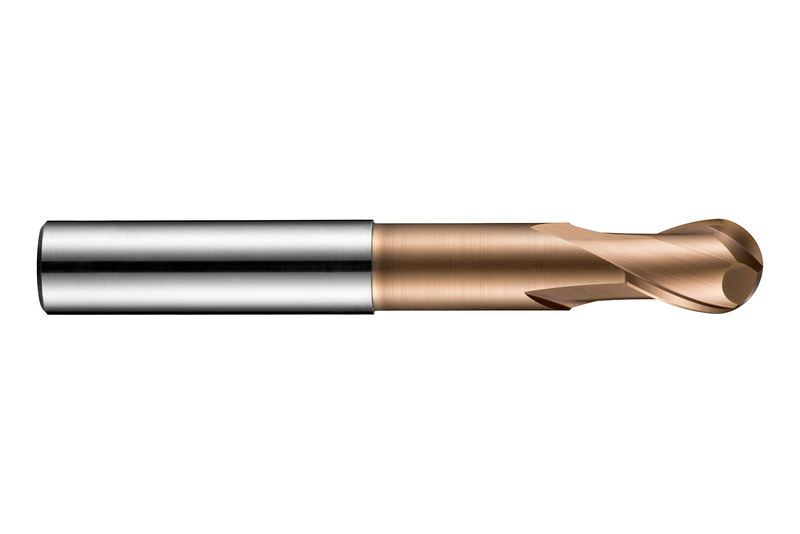

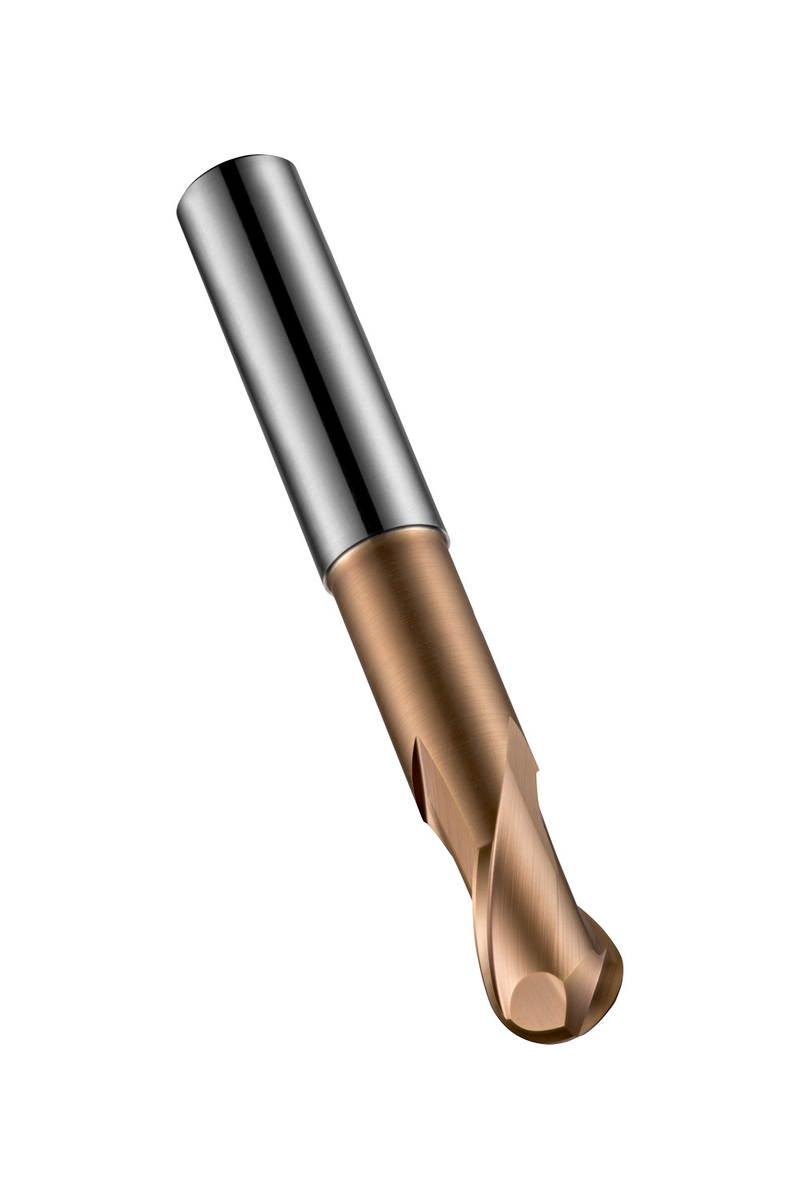

Fraise boule extra-courte à 2 dents, diamètre 3mm avec une longueur de coupe de 5mm, longueur totale de 75mm, dégagement de 21mm avec dépouille et rayon de profil complet de 1.5mm, selon la norme DORMER avec une queue cylindrique de 6mm, carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage de copiage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5313.0XD6
GradeTiSiN
Product Number6706475
Product FamilyS531

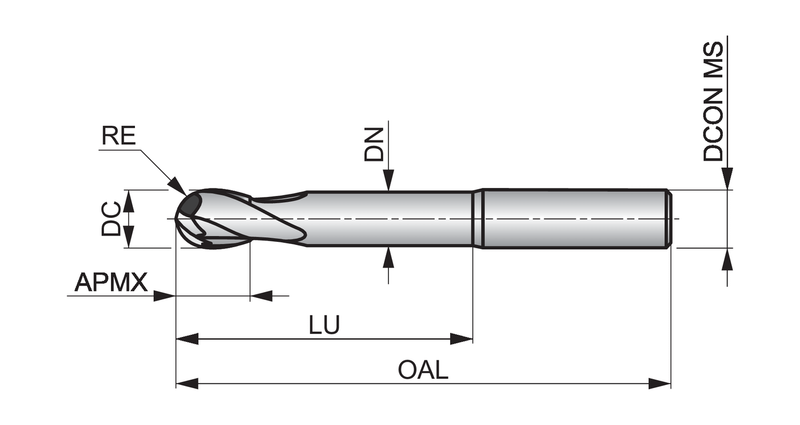

Insert Geometry
Corner Radius — in (RE)0.0591"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706475
EAN7320760680247
File Type Download
S5313.0XD6 — Line Drawing PDF Download
