S5314.0XD6
S5314.0XD6
S5314.0XD6
S5314.0XD6

S5314.0XD6

UGC DOR6706477
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.16 CAD - $86.16 CAD
$86.16 CAD
$86.16 CAD - $86.16 CAD
$86.16 CAD

Vendu en lots de : 1

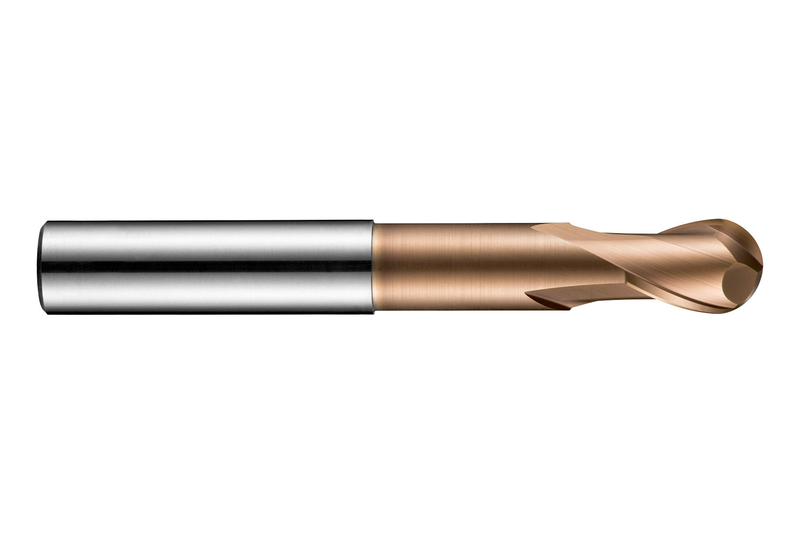

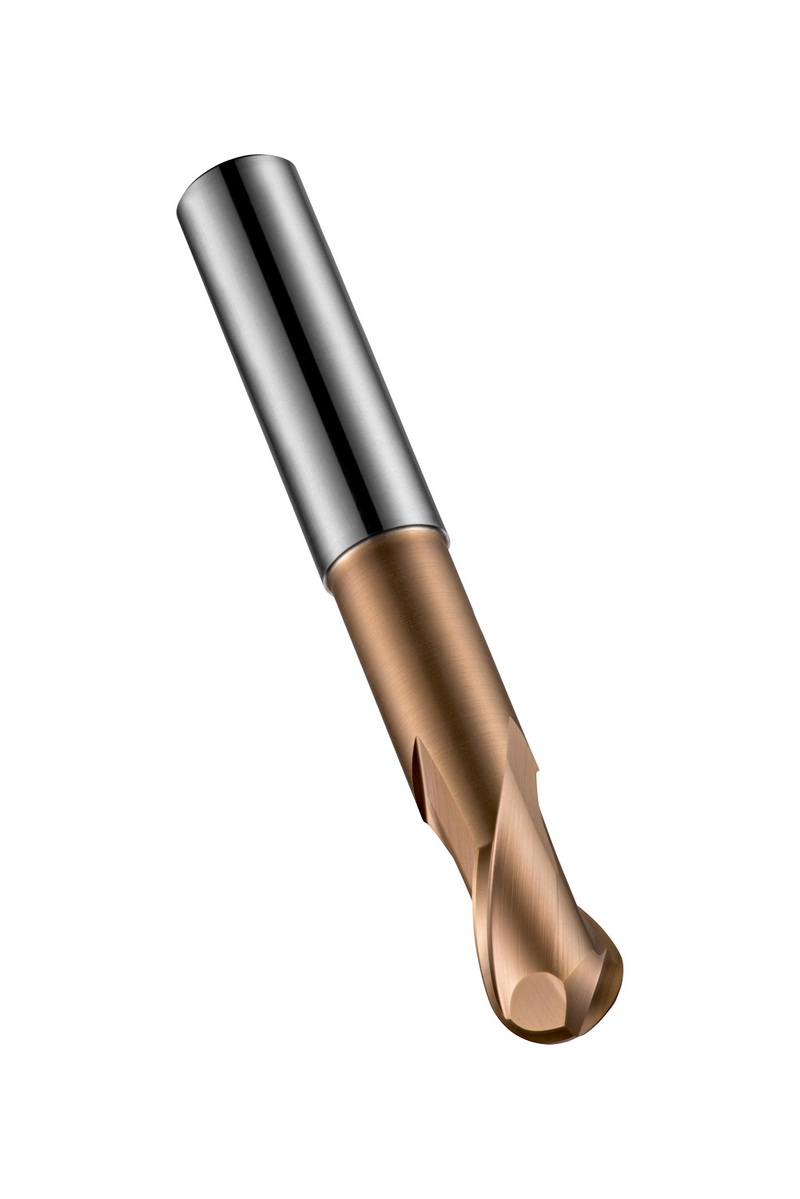

Fraise boule extra courte à 2 dents, diamètre 4mm, longueur de coupe 8mm, longueur totale 75mm, portée 28mm avec dégagement de col et rayon de profil complet de 2mm, selon le standard DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage en plongée dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5314.0XD6
GradeTiSiN
Product Number6706477
Product FamilyS531

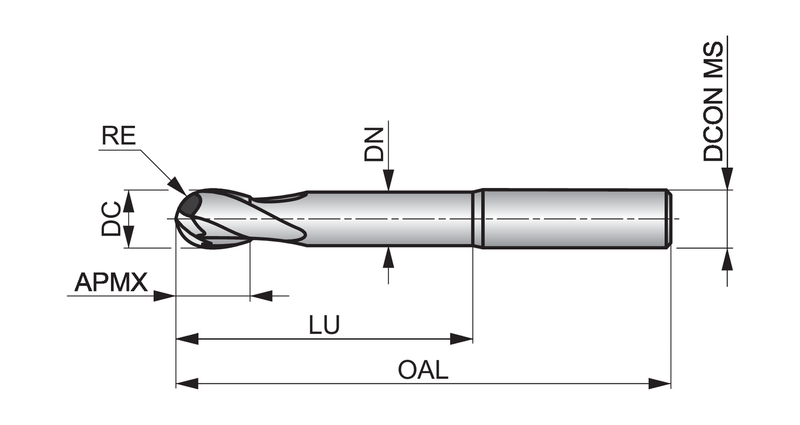

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)28.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706477
EAN7320760680261
File Type Download
S5314.0XD6 — Line Drawing PDF Download
