S5318.0
S5318.0
S5318.0
S5318.0

S5318.0

UGC DOR6706481
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$124.21 CAD - $124.21 CAD
$124.21 CAD
$124.21 CAD - $124.21 CAD
$124.21 CAD

Vendu en lots de : 1

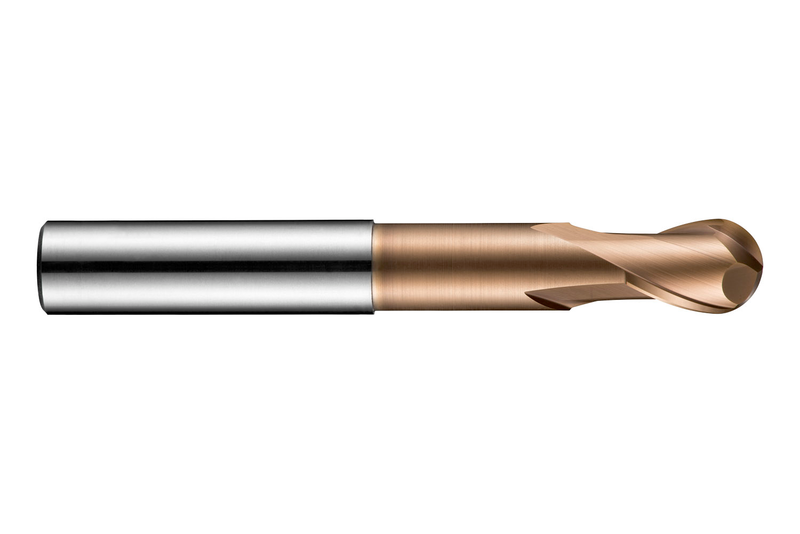

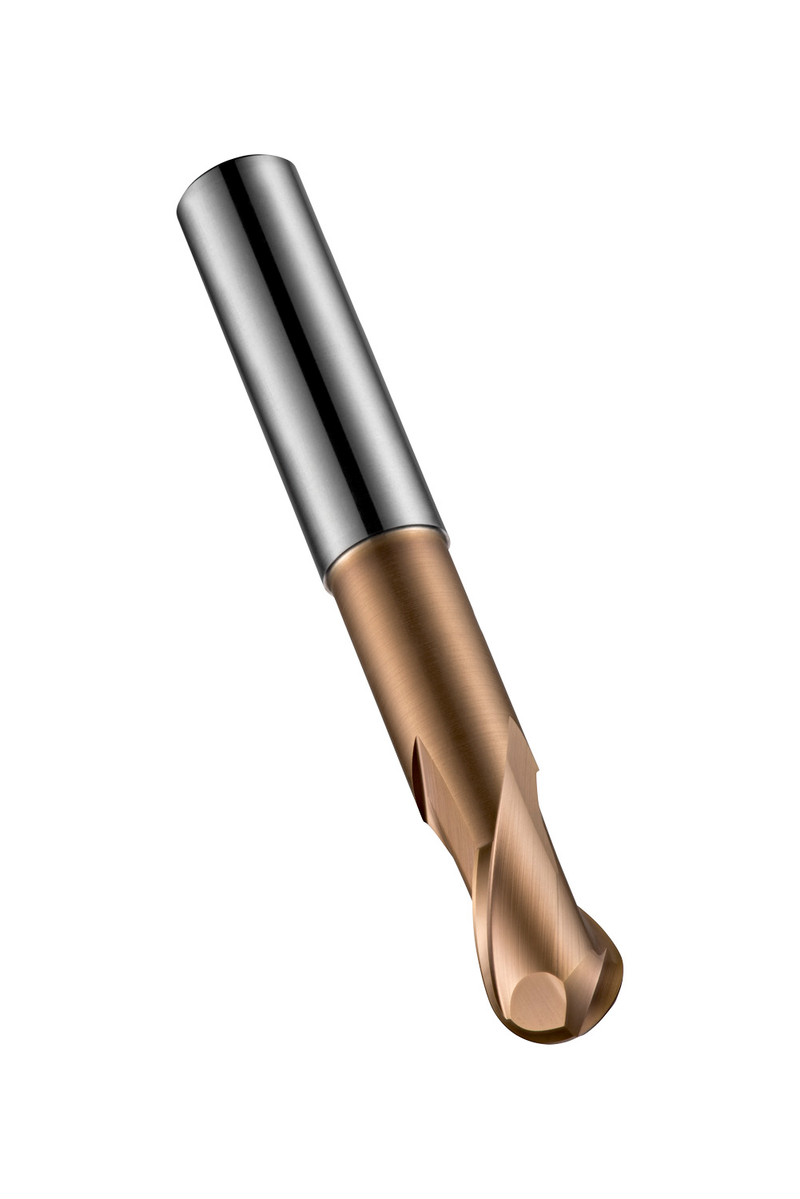

Fraise boule extra-courte à 2 dents, diamètre 8mm avec une longueur de coupe de 12mm, longueur totale de 75mm, dégagement de 40mm avec collet dégagé et rayon de profil complet de 4mm, selon la norme DORMER avec un attachement cylindrique de 8mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage de copiage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5318.0
GradeTiSiN
Product Number6706481
Product FamilyS531

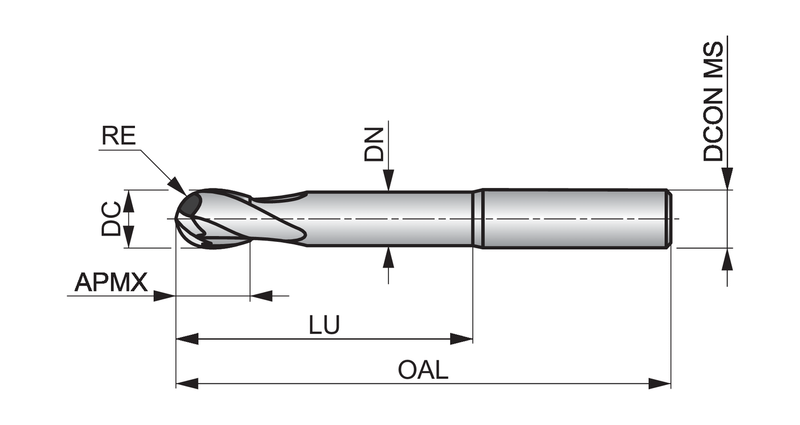

Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706481
EAN7320760680308
File Type Download
S5318.0 — Line Drawing PDF Download
