UGC DOR6706483
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$225.70 CAD - $225.70 CAD
$225.70 CAD
$225.70 CAD - $225.70 CAD
$225.70 CAD

Vendu en lots de : 1

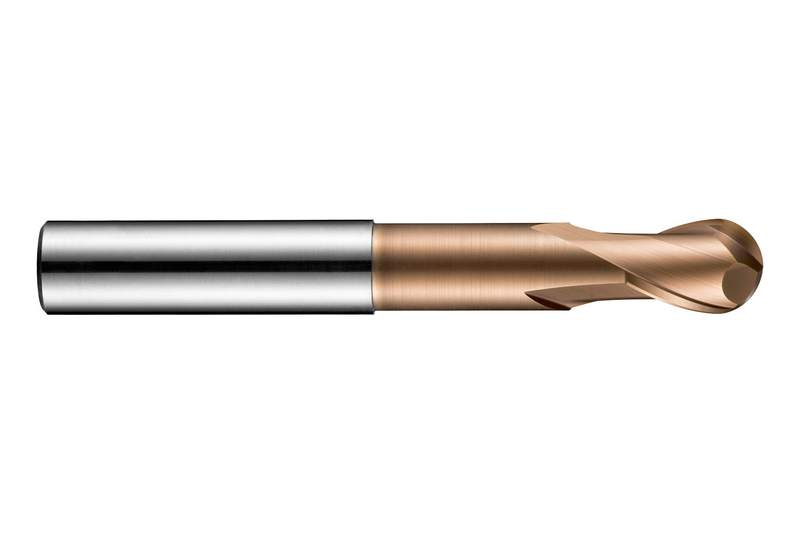

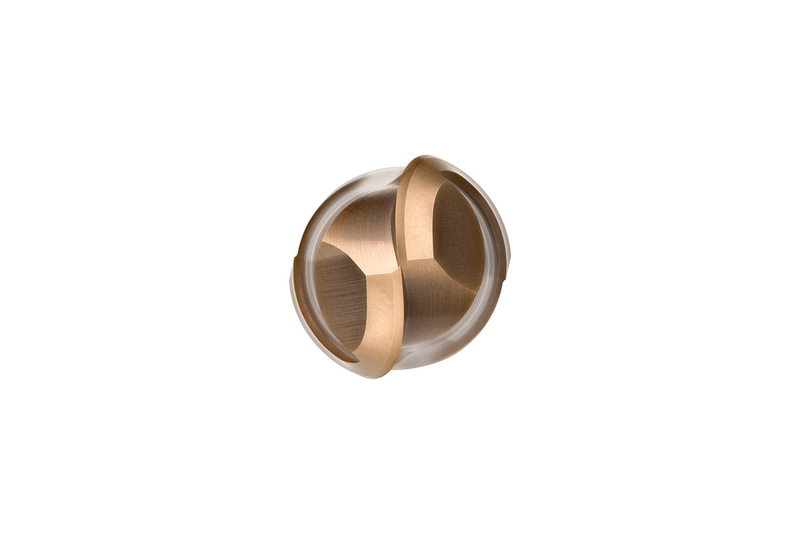

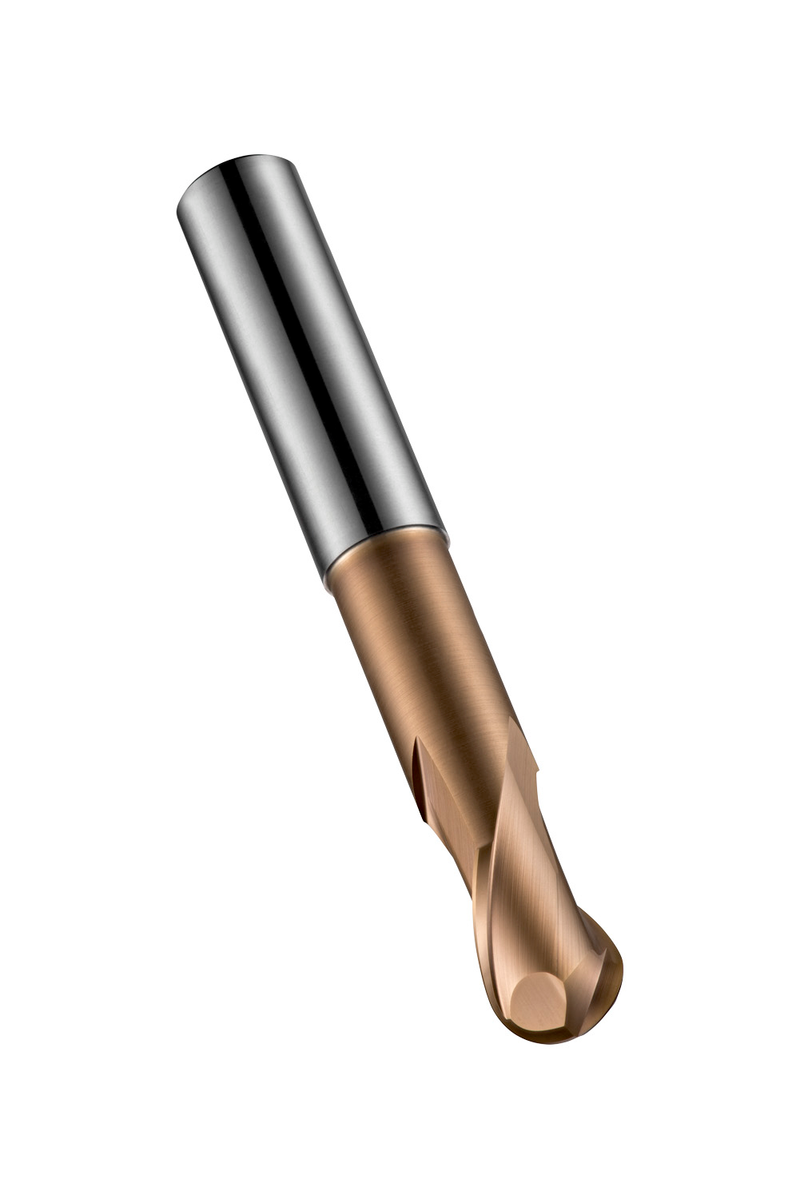

Fraise boule courte 2 lèvres, diamètre 12mm avec 16mm de longueur de coupe, longueur totale 100mm, dégagement de 60mm avec un rayon de profil de 6mm, selon la norme DORMER avec une queue cylindrique de 12mm, carbure monobloc avec revêtement TiSiN, hélice à 30° et angle de dépouille de -10° pour le fraisage en copie des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53112.0
GradeTiSiN
Product Number6706483
Product FamilyS531

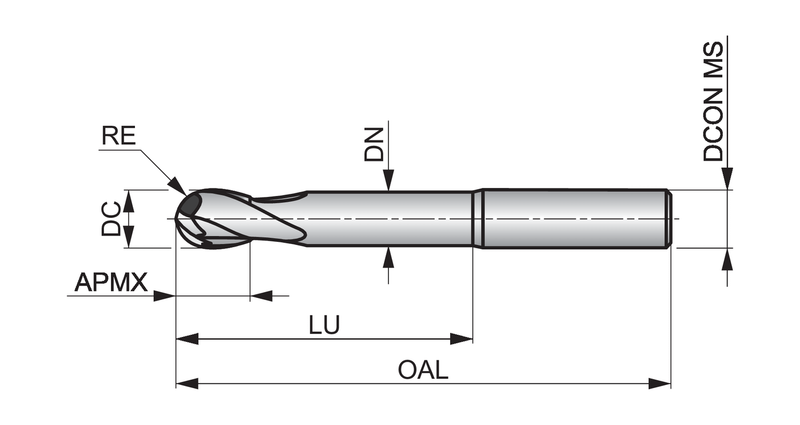

Insert Geometry
Corner Radius — in (RE)0.2362"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706483
EAN7320760680322
File Type Download
S53112.0 — Line Drawing PDF Download
