UGC DOR6706485
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$373.17 CAD - $373.17 CAD
$373.17 CAD
$373.17 CAD - $373.17 CAD
$373.17 CAD

Vendu en lots de : 1

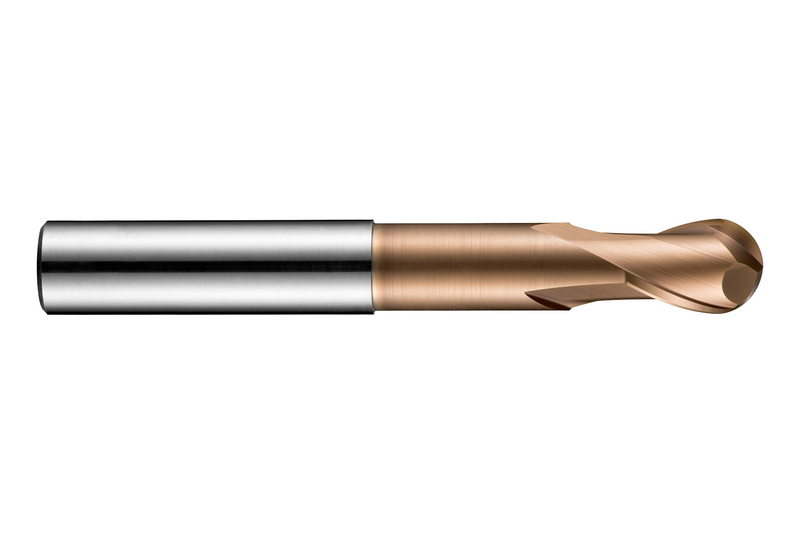

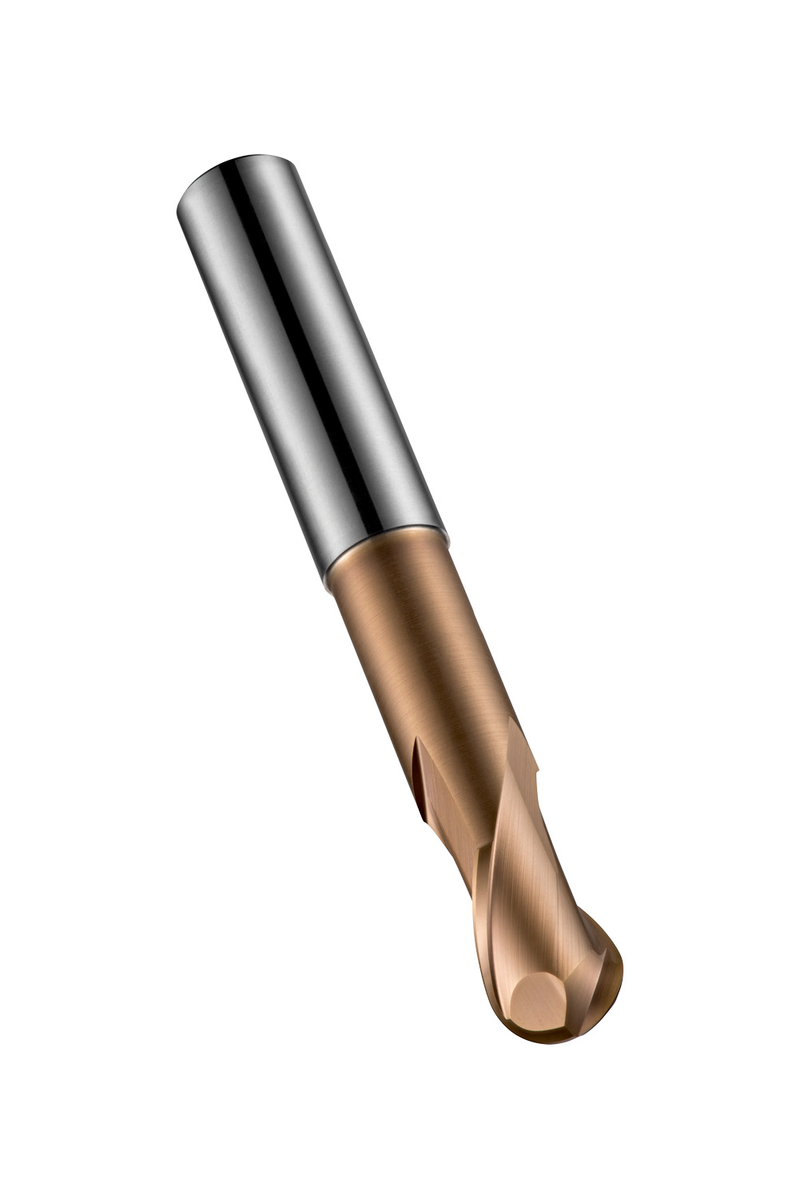

Fraise boule extra-courte à 2 dents, diamètre 16mm avec une longueur de coupe de 32mm, longueur totale de 125mm, portée de 80mm avec dégagement de col et rayon de profil complet de 8mm, selon la norme DORMER avec une queue cylindrique de 16mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage de copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53116.0
GradeTiSiN
Product Number6706485
Product FamilyS531
Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706485
EAN7320760680346
File Type Download

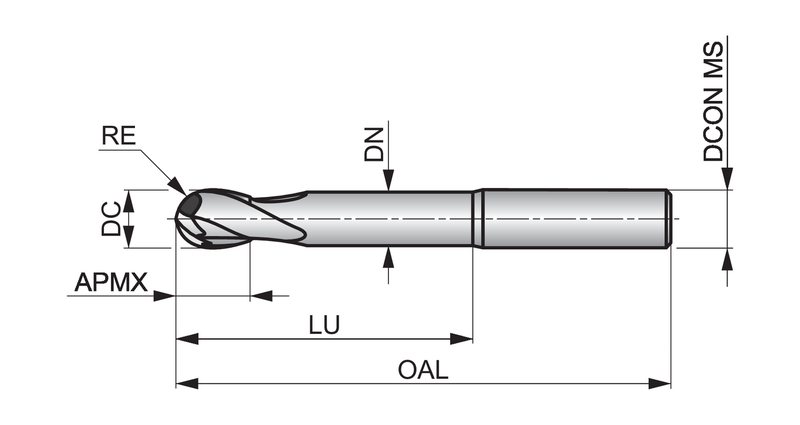

S53116.0 — Line Drawing PDF Download
