S2314.0XD6
S2314.0XD6
S2314.0XD6
S2314.0XD6

S2314.0XD6

UGC DOR6706491
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.46 CAD - $82.46 CAD
$82.46 CAD
$82.46 CAD - $82.46 CAD
$82.46 CAD

Vendu en lots de : 1

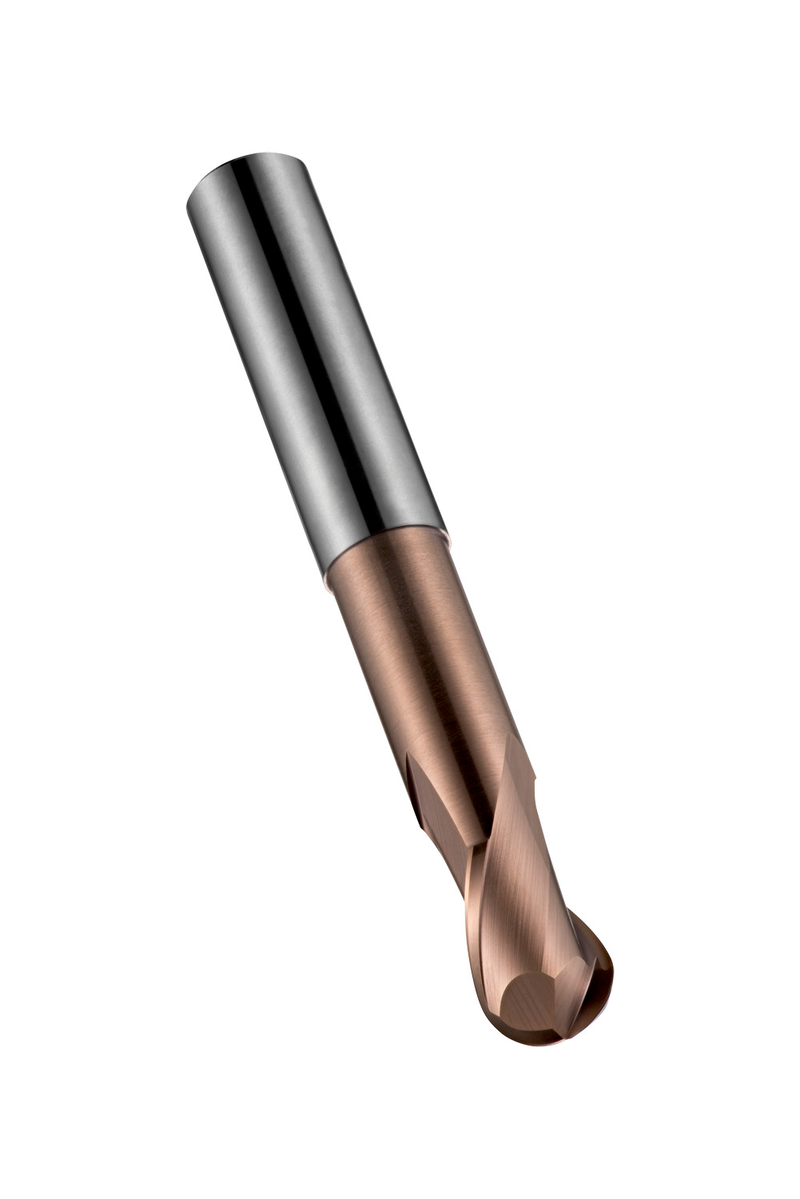

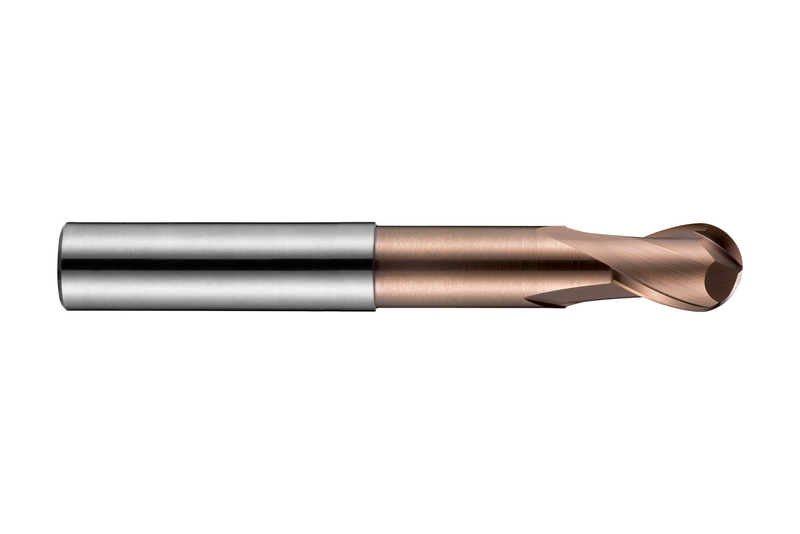

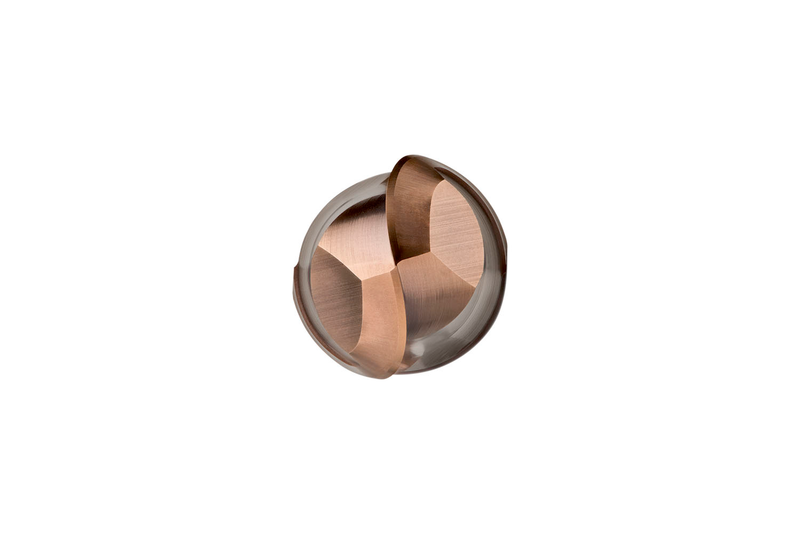

Fraise boule extra-courte 2 dents, diamètre 4mm avec 8mm de longueur de coupe, longueur totale 75mm, portée 28mm avec dégagement de col et rayon de profil complet de 2mm, selon le standard DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement TiSiN, hélice 30° et angle de dépouille 3° pour le fraisage de copiage dans l'acier inoxydable martensitique, austénitique et super-austénitique, Duplex ou à durcissement par précipitation et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2314.0XD6
GradeTiSiN
Product Number6706491
Product FamilyS231

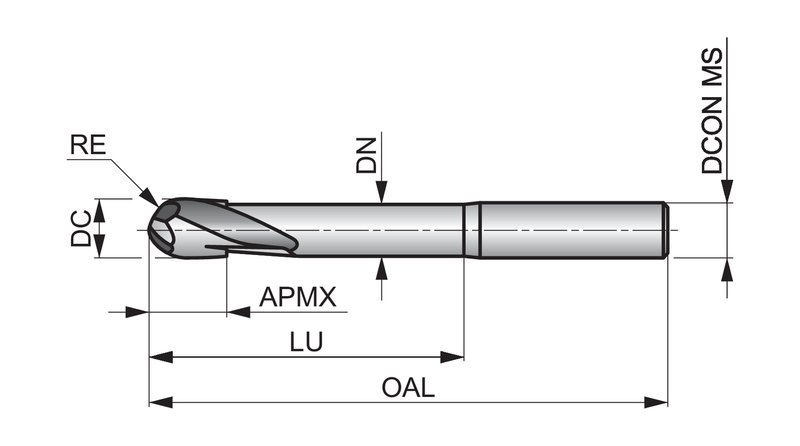

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)28.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706491
EAN7320760680407
File Type Download
S2314.0XD6 — Line Drawing PDF Download
