UGC DOR6706498
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$355.73 CAD - $355.73 CAD
$355.73 CAD
$355.73 CAD - $355.73 CAD
$355.73 CAD

Vendu en lots de : 1

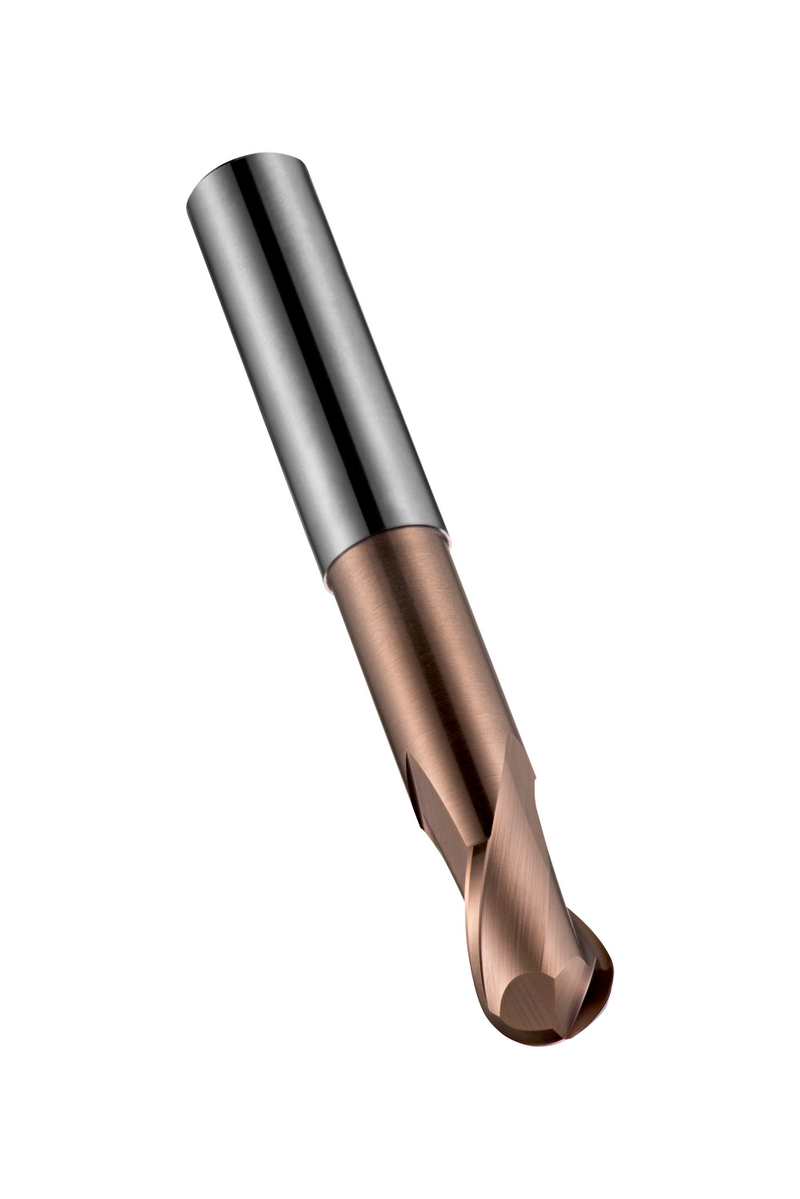

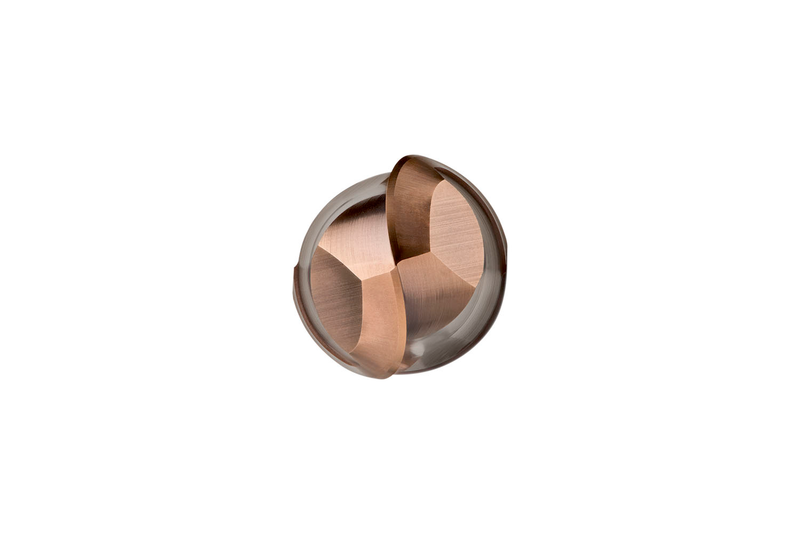

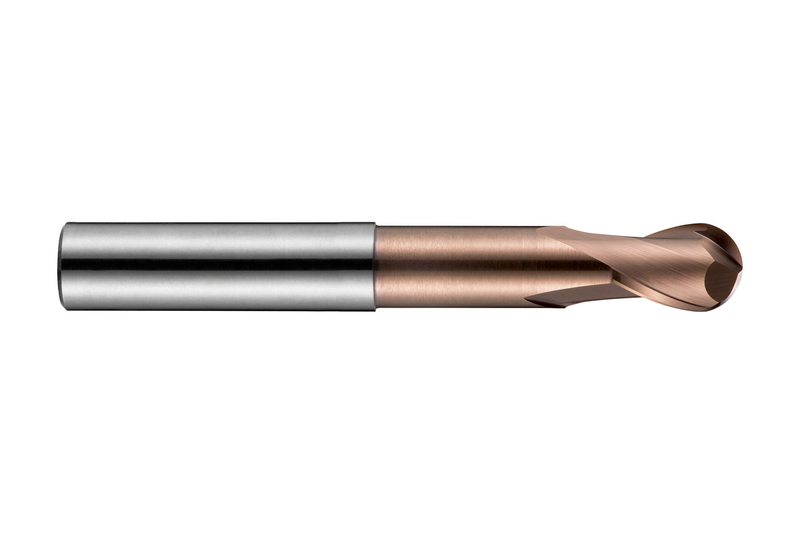

Fraise carbure monobloc à tête sphérique, 2 dents, série ultra-courte, diamètre 16 mm, longueur de coupe 32 mm, longueur totale 125 mm, portée 80 mm avec dégagement de col et rayon de profil complet de 8 mm, selon la norme DORMER, avec queue cylindrique de 16 mm, revêtement TiSiN, hélice de 30° et angle de dépouille de 3° pour le fraisage en copie dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S23116.0
GradeTiSiN
Product Number6706498
Product FamilyS231

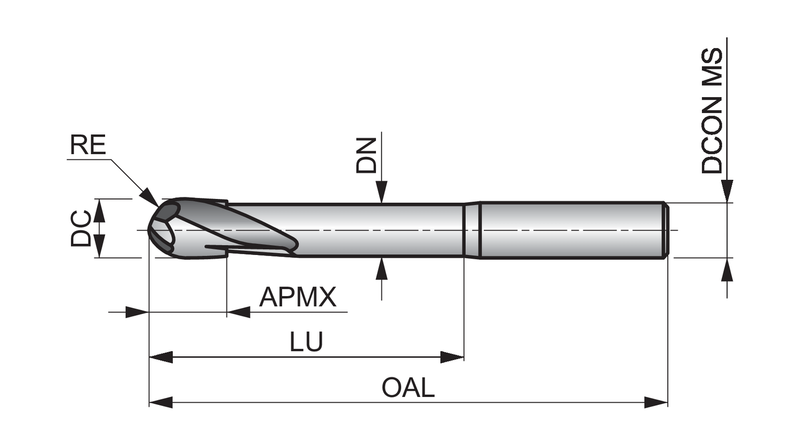

Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706498
EAN7320760680476
File Type Download
S23116.0 — Line Drawing PDF Download
