S5291.5
S5291.5
S5291.5
S5291.5

S5291.5

UGC DOR6706499
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.06 CAD - $75.06 CAD
$75.06 CAD
$75.06 CAD - $75.06 CAD
$75.06 CAD

Vendu en lots de : 1

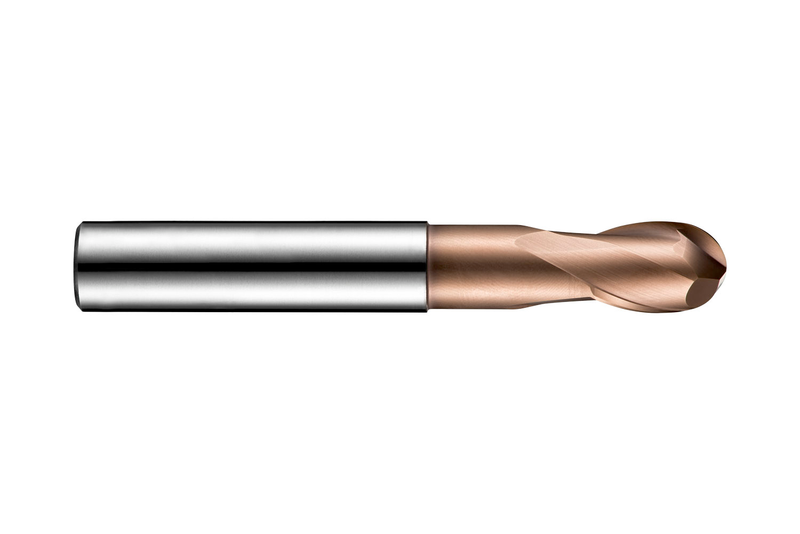

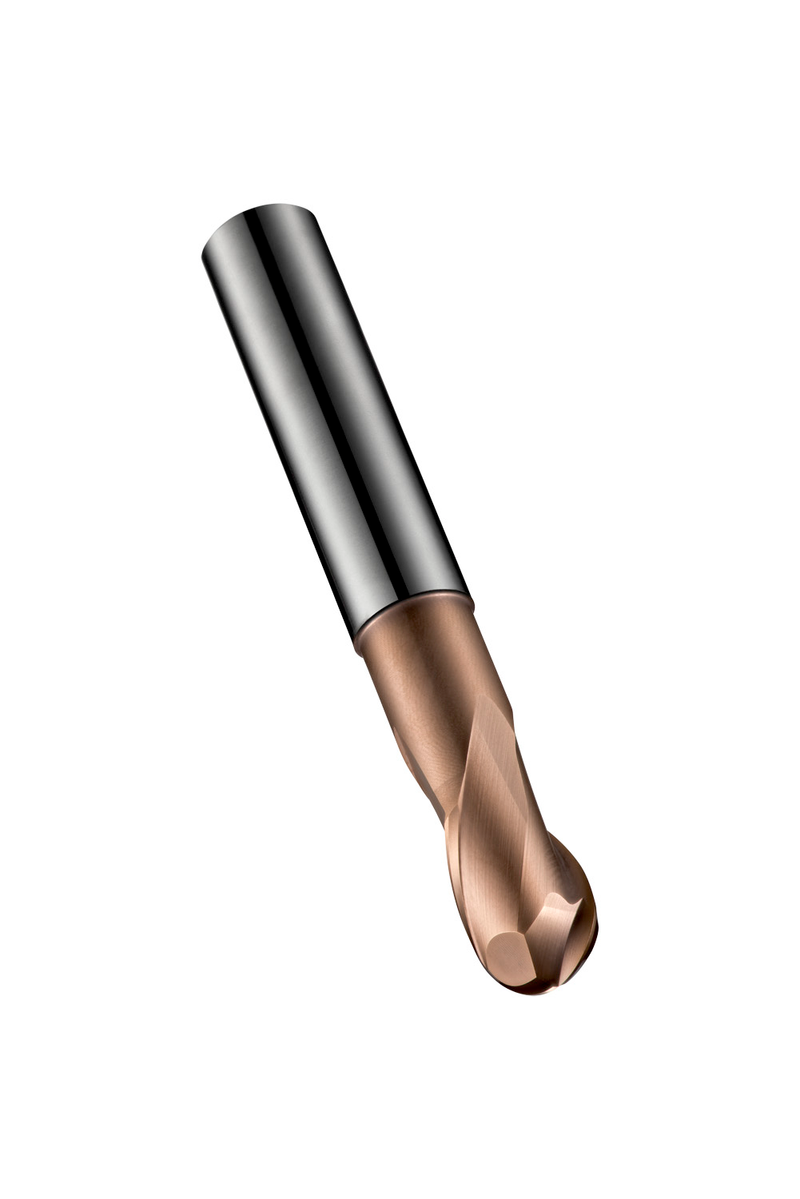

Fraise à l'extrémité sphérique extra-courte à 2 dents, diamètre de 1,5 mm avec une longueur de coupe de 3 mm, longueur totale de 50 mm, portée de 6 mm avec dégagement de col et rayon de profil complet de 0,75 mm, selon la norme DORMER avec une queue unie de 6 mm, carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le copiage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5291.5
GradeTiSiN
Product Number6706499
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.0295"
Corner Radius — mm (RE)0.75 mm
Depth of Cut Max — in (APMX)0.1181"
Depth of Cut Max — mm (APMX)3.0 mm
Dimensions
Cutting Diameter — in (DC)0.0591"
Cutting Diameter — mm (DC)1.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)6.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706499
EAN7320760680483
File Type Download
S5291.5 — Line Drawing PDF Download
