S5292.0XD4
S5292.0XD4
S5292.0XD4
S5292.0XD4

S5292.0XD4

UGC DOR6706500
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

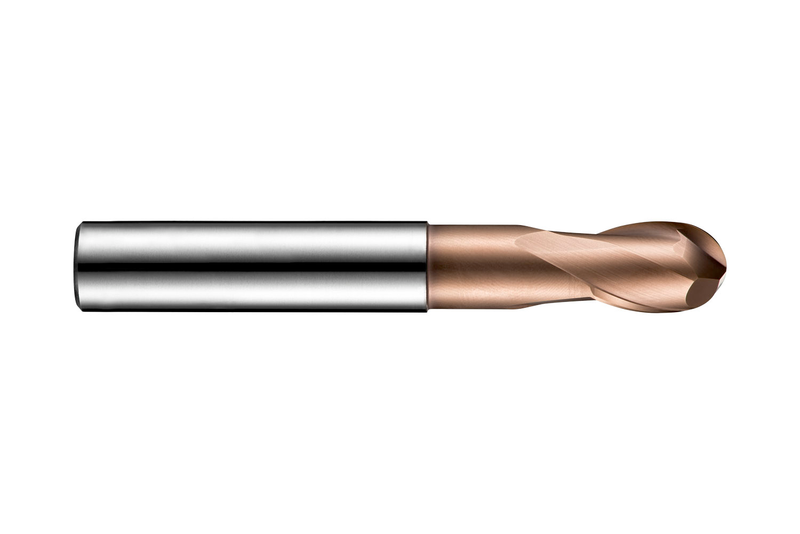

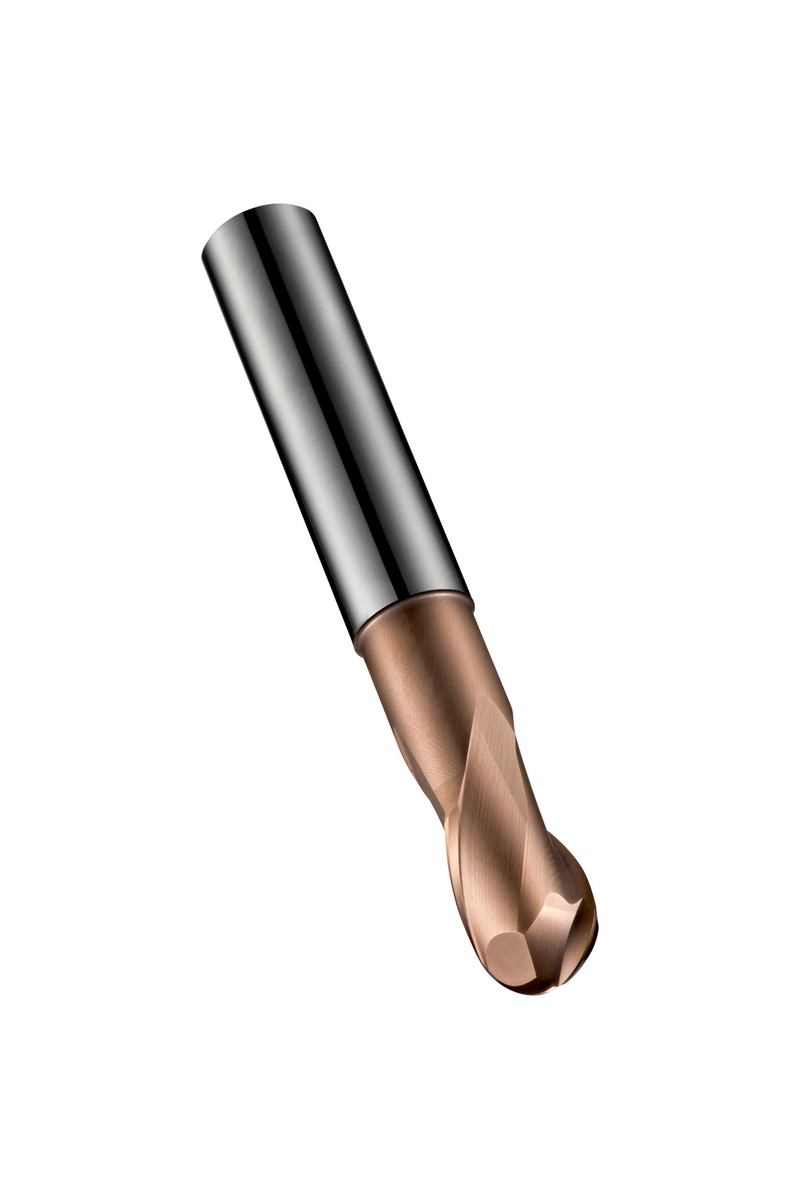

Fraise à surfacer-dresser à bout sphérique extra-courte 2 dents, diamètre 2 mm, longueur de coupe 4 mm, longueur totale 50 mm, portée 8 mm avec dégagement de col et rayon de profil complet de 1 mm, selon la norme DORMER avec une queue cylindrique de 4 mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage de reproduction dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5292.0XD4
GradeTiSiN
Product Number6706500
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.1575"
Depth of Cut Max — mm (APMX)4.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)8.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706500
EAN7320760680490
File Type Download
S5292.0XD4 — Line Drawing PDF Download
