S5293.0XD6
S5293.0XD6
S5293.0XD6
S5293.0XD6

S5293.0XD6

UGC DOR6706503
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

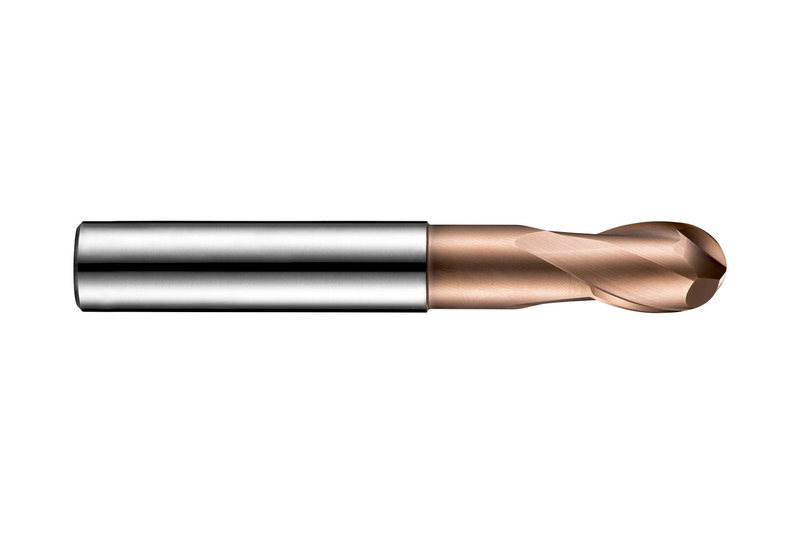

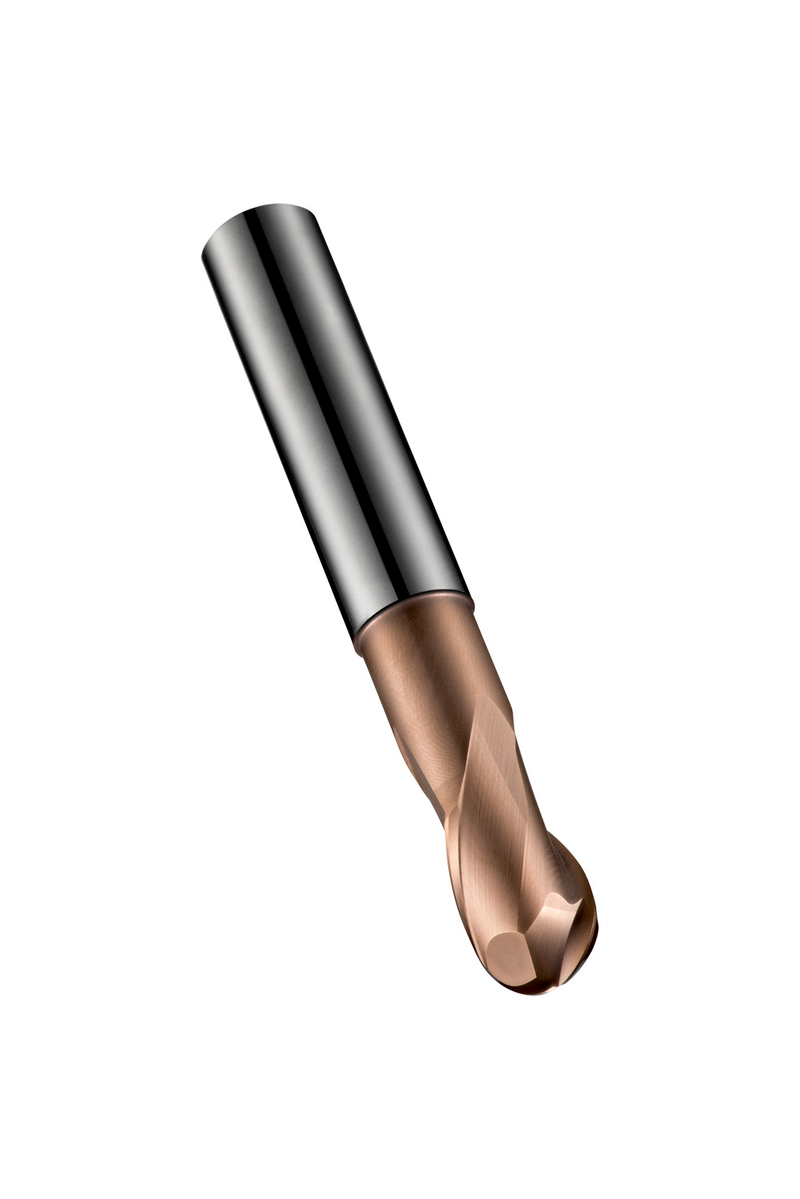

Fraise boule extra courte à 2 dents, diamètre 3 mm avec longueur de coupe de 5 mm, longueur totale de 50 mm, portée de 14 mm avec dégagement de col et rayon de profil complet de 1,5 mm, selon la norme DORMER avec queue cylindrique de 6 mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5293.0XD6
GradeTiSiN
Product Number6706503
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.0591"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706503
EAN7320760680520
File Type Download
S5293.0XD6 — Line Drawing PDF Download
