S5294.0XD6
S5294.0XD6
S5294.0XD6
S5294.0XD6

S5294.0XD6

UGC DOR6706505
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.29 CAD - $79.29 CAD
$79.29 CAD
$79.29 CAD - $79.29 CAD
$79.29 CAD

Vendu en lots de : 1

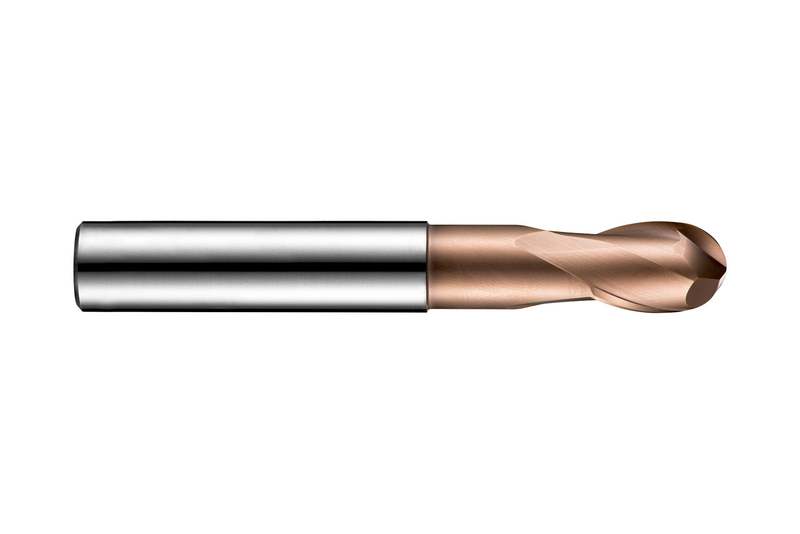

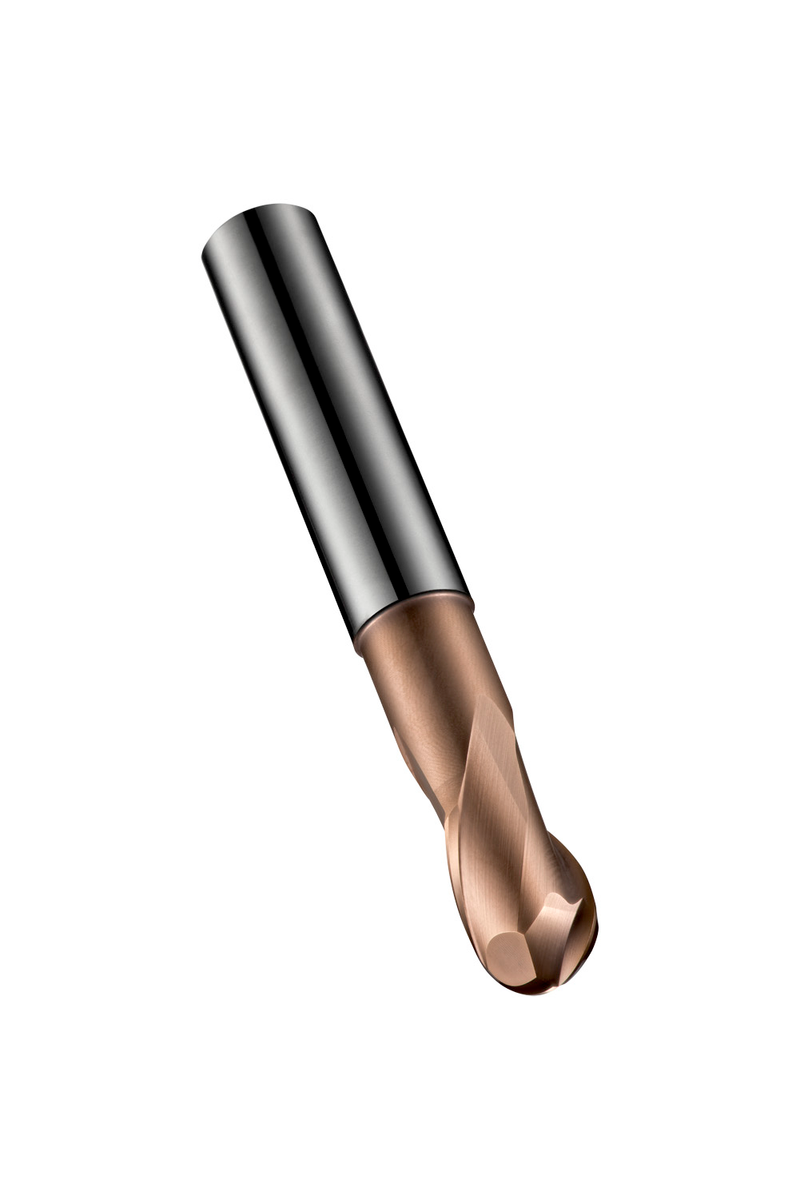

Fraise à surfacer hémisphérique extra courte à 2 dents, diamètre 4mm, longueur de coupe 8mm, longueur totale 50mm, portée 20mm avec dégagement de col et rayon de profil complet 2mm, selon la norme DORMER avec une queue cylindrique 6mm, carbure monobloc avec revêtement TiSiN, hélice 30° et angle de dépouille -10° pour le fraisage de copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5294.0XD6
GradeTiSiN
Product Number6706505
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706505
EAN7320760680544
File Type Download
S5294.0XD6 — Line Drawing PDF Download
