S5295.0XD5
S5295.0XD5
S5295.0XD5
S5295.0XD5

S5295.0XD5

UGC DOR6706506
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.34 CAD - $80.34 CAD
$80.34 CAD
$80.34 CAD - $80.34 CAD
$80.34 CAD

Vendu en lots de : 1

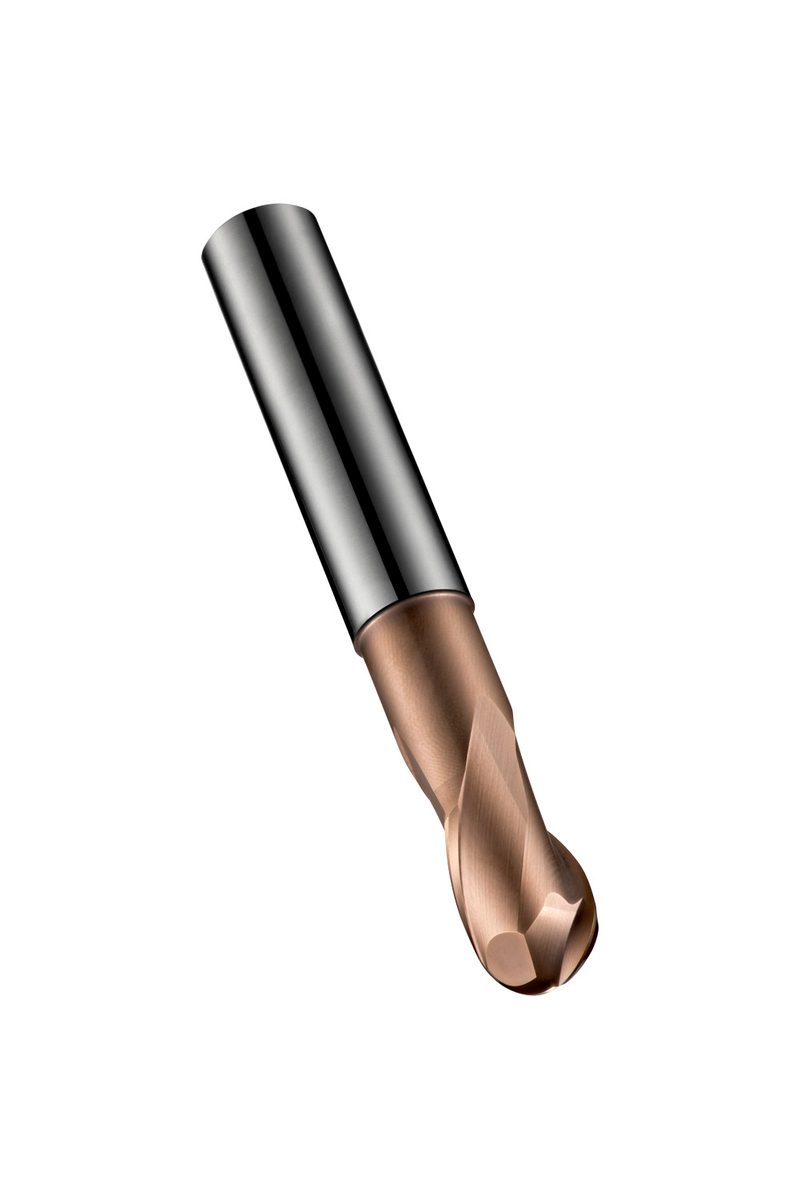

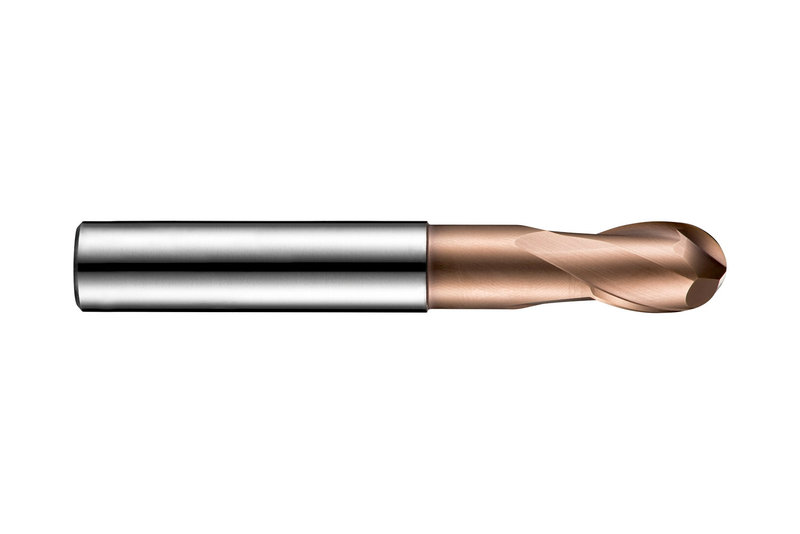

Fraise à l'extrémité sphérique extra-courte à 2 dents, diamètre 5 mm avec une longueur de coupe de 9 mm, longueur totale de 50 mm, portée de 20 mm avec dégagement de col et rayon de profil complet de 2,5 mm, selon la norme DORMER avec une queue cylindrique de 5 mm, carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour l'usinage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5295.0XD5
GradeTiSiN
Product Number6706506
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706506
EAN7320760680551
File Type Download
S5295.0XD5 — Line Drawing PDF Download
