S5295.0XD6
S5295.0XD6
S5295.0XD6
S5295.0XD6

S5295.0XD6

UGC DOR6706507
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.34 CAD - $80.34 CAD
$80.34 CAD
$80.34 CAD - $80.34 CAD
$80.34 CAD

Vendu en lots de : 1

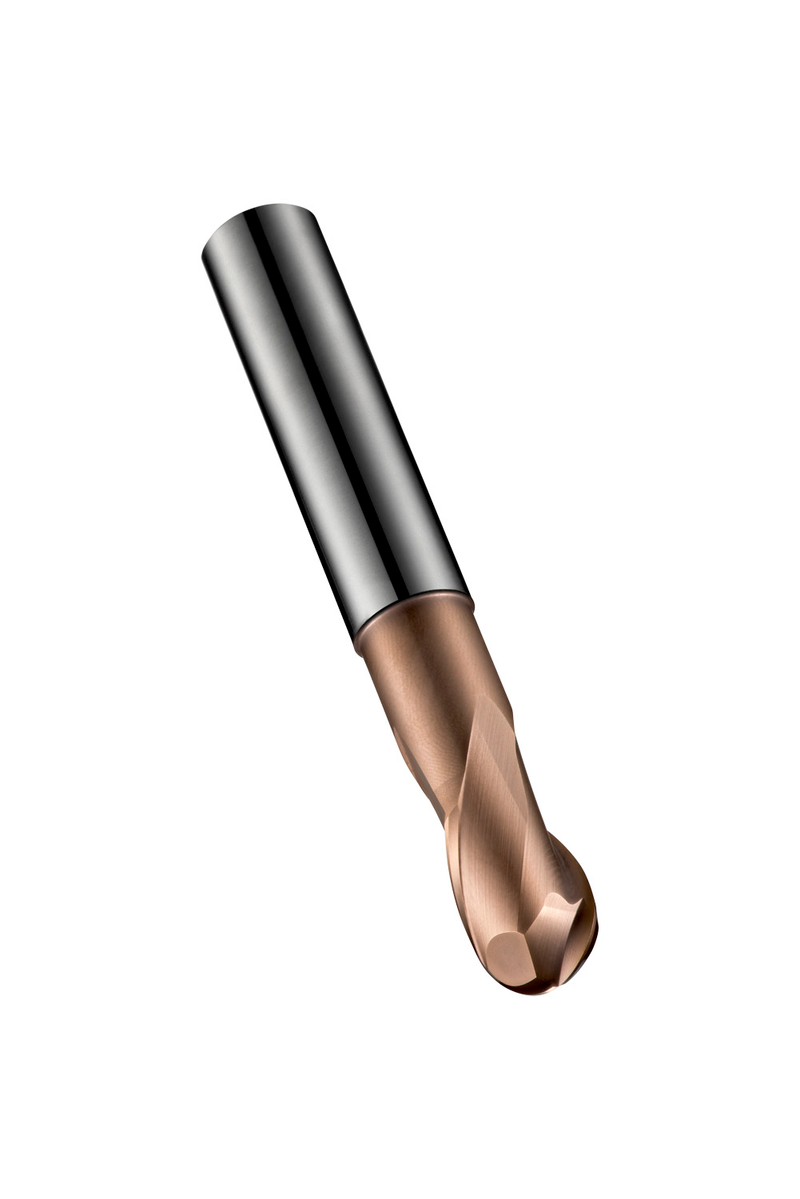

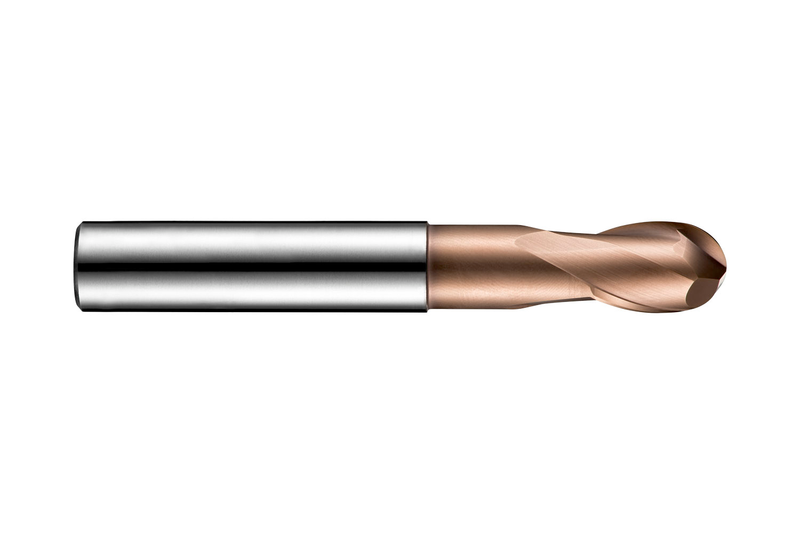

Fraise carbure monobloc à tête sphérique, série extra courte, 2 dents, diamètre 5mm avec une longueur de coupe de 9mm, longueur totale 50mm, dégagement de 20mm avec collet et rayon de profil complet de 2,5mm, selon la norme DORMER avec une queue cylindrique de 6mm, revêtement TiSiN, hélice à 30° et angle de dépouille de -10° pour le fraisage en plongée dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5295.0XD6
GradeTiSiN
Product Number6706507
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706507
EAN7320760680568
File Type Download
S5295.0XD6 — Line Drawing PDF Download
