UGC DOR6706508
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.34 CAD - $80.34 CAD
$80.34 CAD
$80.34 CAD - $80.34 CAD
$80.34 CAD

Vendu en lots de : 1

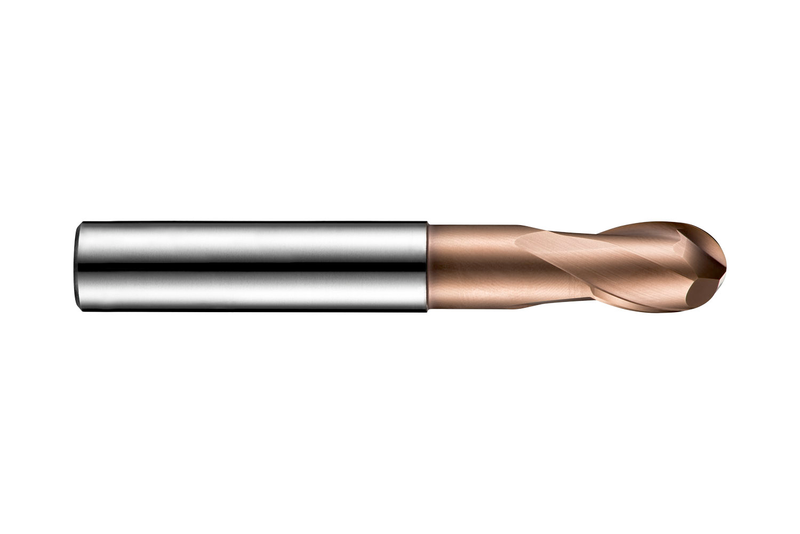

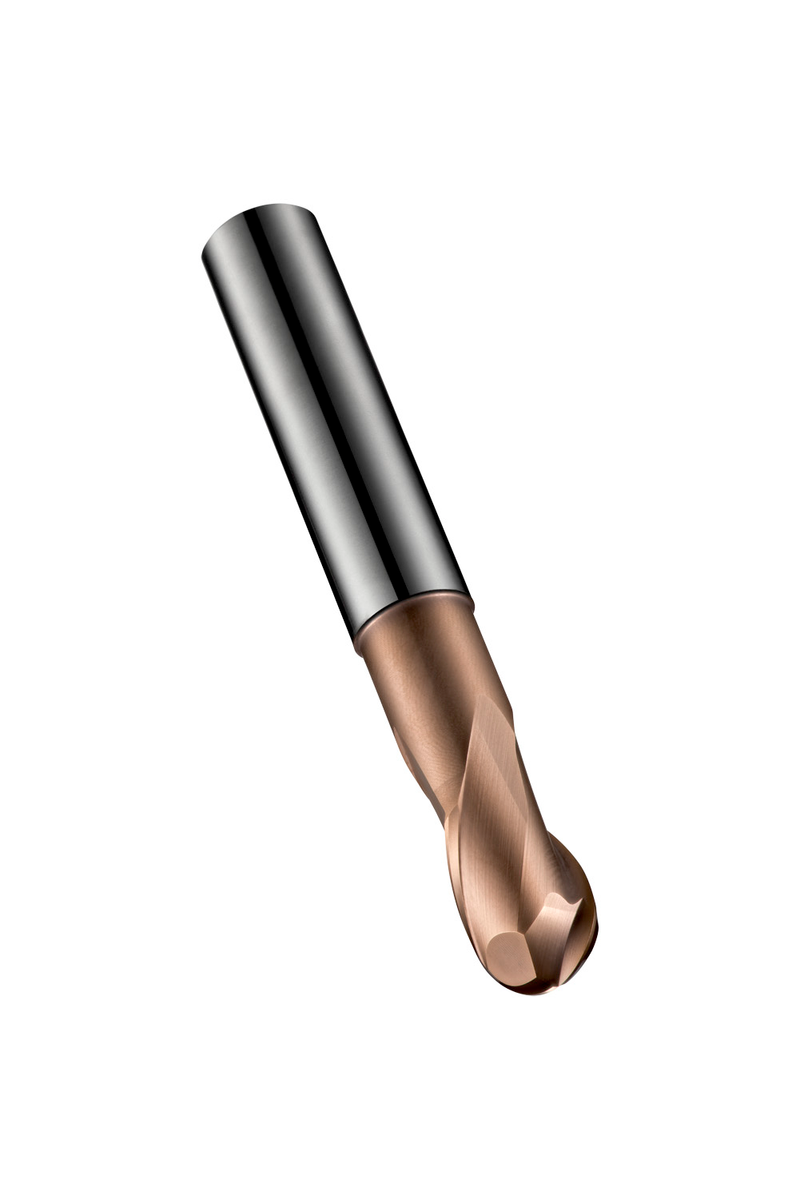

Fraise à l'extrémité sphérique extra courte à 2 dents, diamètre 6mm, longueur de coupe 10mm, longueur totale 50mm, portée 20mm avec dégagement de col et rayon de profil complet de 3mm, selon la norme DORMER avec une queue cylindrique de 6mm, carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour la copie de fraisage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5296.0
GradeTiSiN
Product Number6706508
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706508
EAN7320760680575
File Type Download
S5296.0 — Line Drawing PDF Download
