UGC DOR6706509
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$113.64 CAD - $113.64 CAD
$113.64 CAD
$113.64 CAD - $113.64 CAD
$113.64 CAD

Vendu en lots de : 1

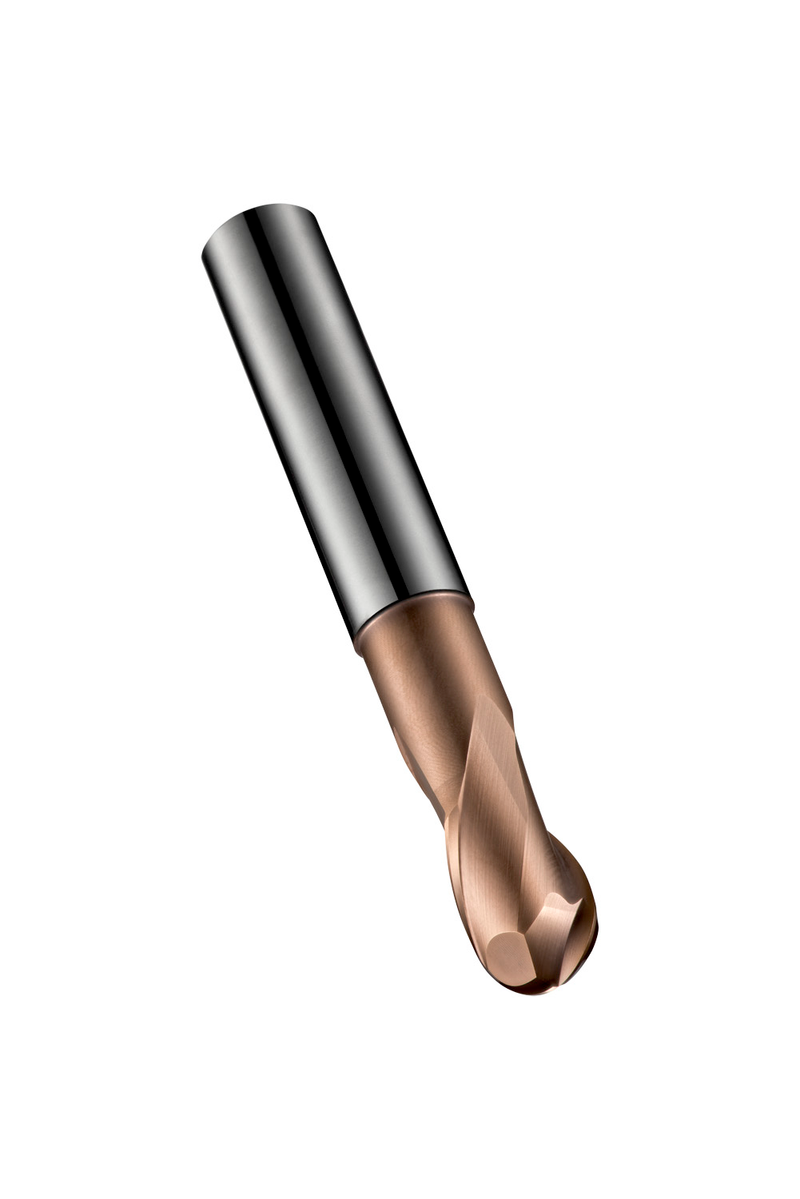

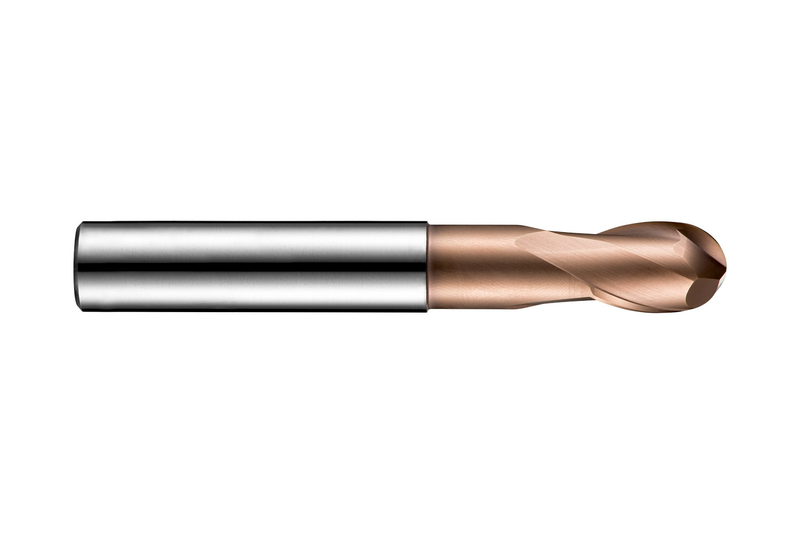

Fraise à l'extrémité sphérique extra courte à 2 dents, diamètre 8mm avec longueur de coupe 12mm, longueur totale 64mm, portée 30mm avec dégagement et rayon de profil complet 4mm, selon la norme DORMER avec une queue cylindrique 8mm, carbure monobloc avec revêtement TiSiN, hélice 30° et angle de dépouille -10° pour le fraisage par copiage dans des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5298.0
GradeTiSiN
Product Number6706509
Product FamilyS529
Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706509
EAN7320760680582
File Type Download
S5298.0 — Line Drawing PDF Download
