UGC DOR6706511
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$206.14 CAD - $206.14 CAD
$206.14 CAD
$206.14 CAD - $206.14 CAD
$206.14 CAD

Vendu en lots de : 1

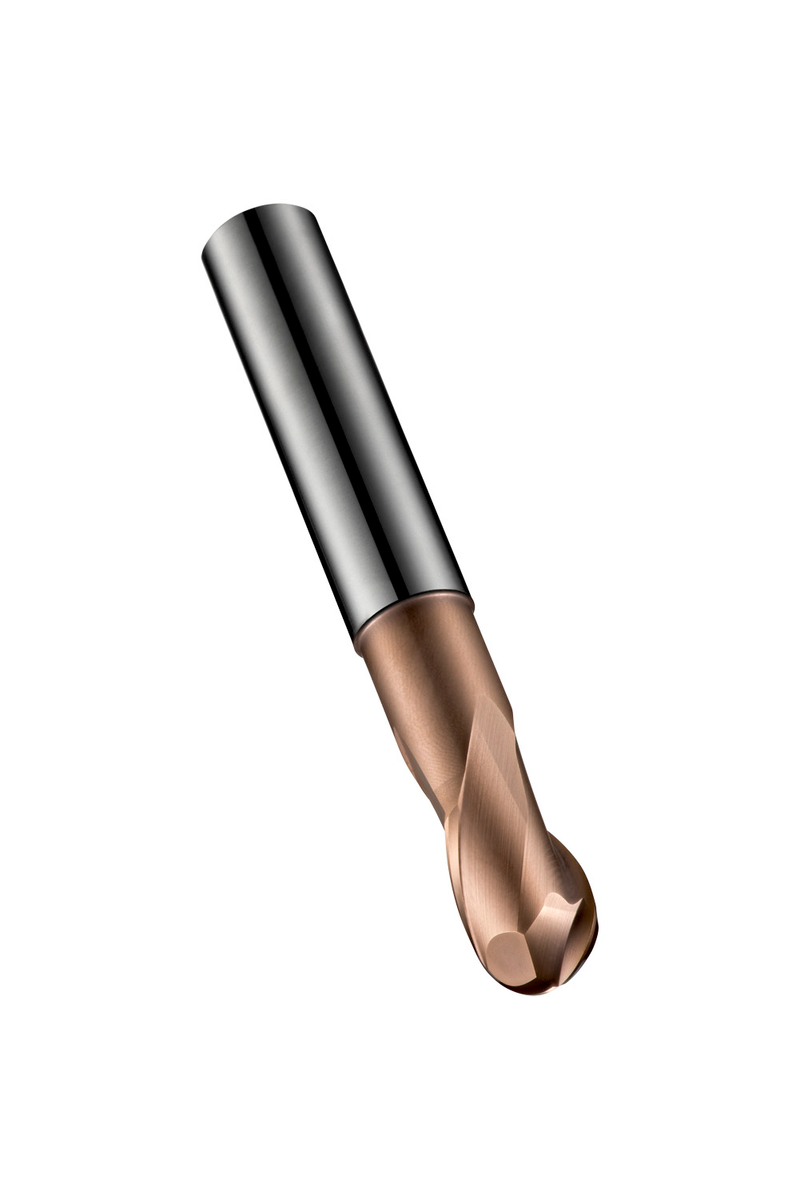

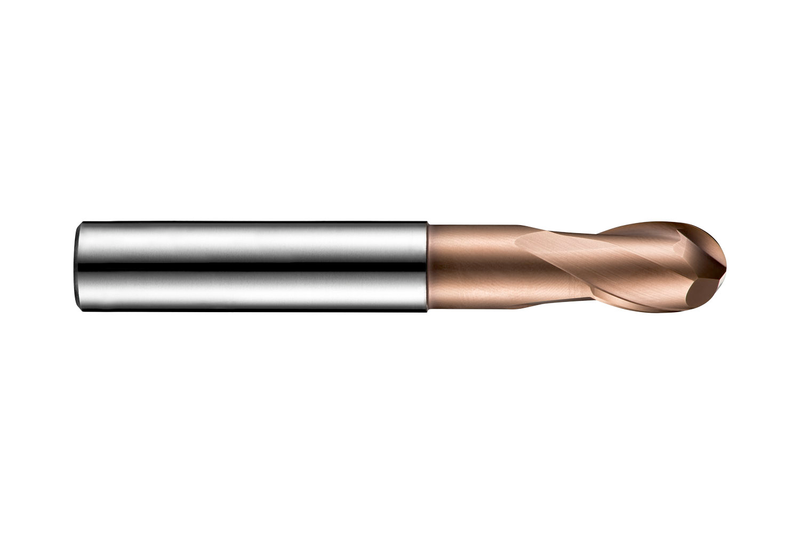

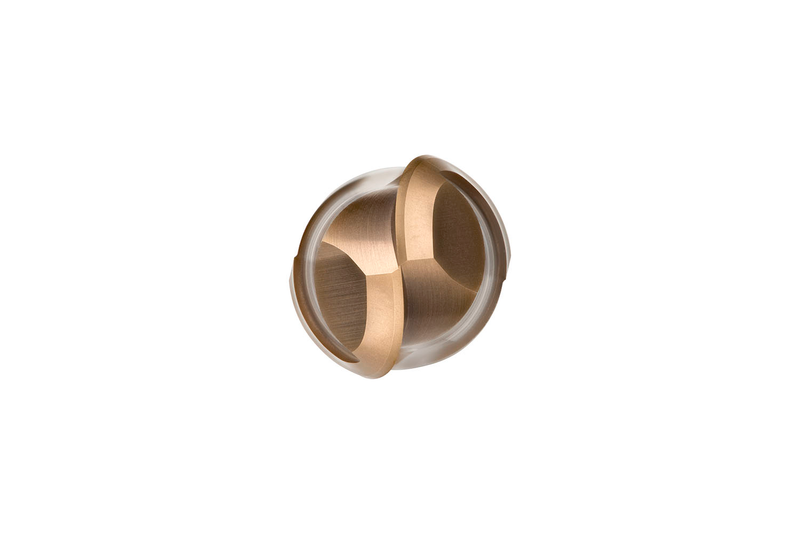

Fraise à rayon de bout à deux arêtes, série extra-courte, diamètre 12mm avec longueur de coupe 16mm, longueur totale 75mm, dégagement de 38mm avec collet de dégagement et rayon de profil complet de 6mm, selon la norme DORMER avec une queue cylindrique de 12mm, carbure monobloc avec revêtement TiSiN, hélice à 30° et angle de dépouille de -10° pour l'usinage en copiage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52912.0
GradeTiSiN
Product Number6706511
Product FamilyS529

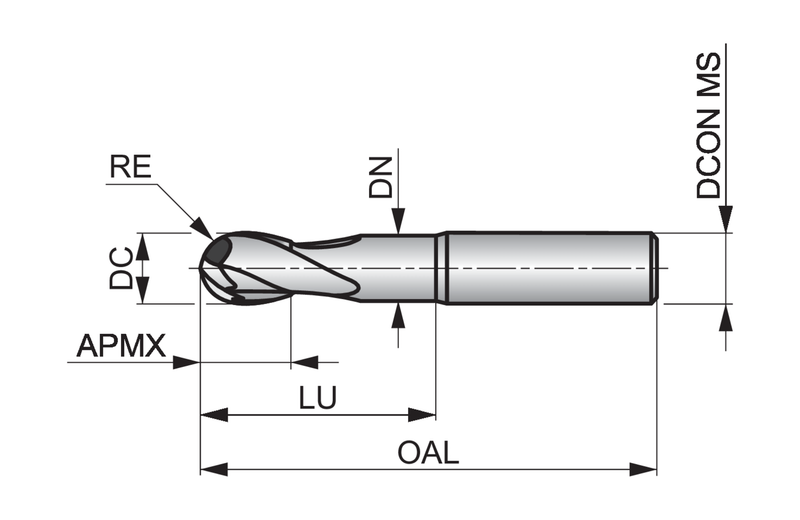

Insert Geometry
Corner Radius — in (RE)0.2362"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)38.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706511
EAN7320760680605
File Type Download
S52912.0 — Line Drawing PDF Download
