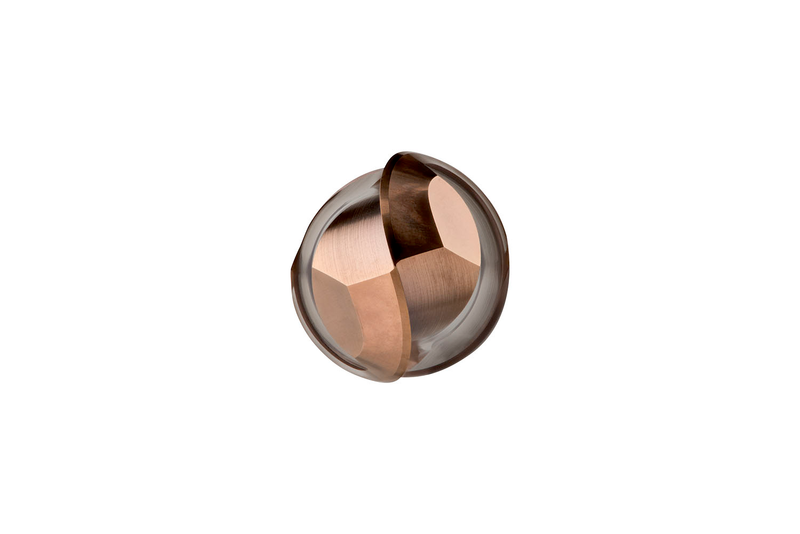

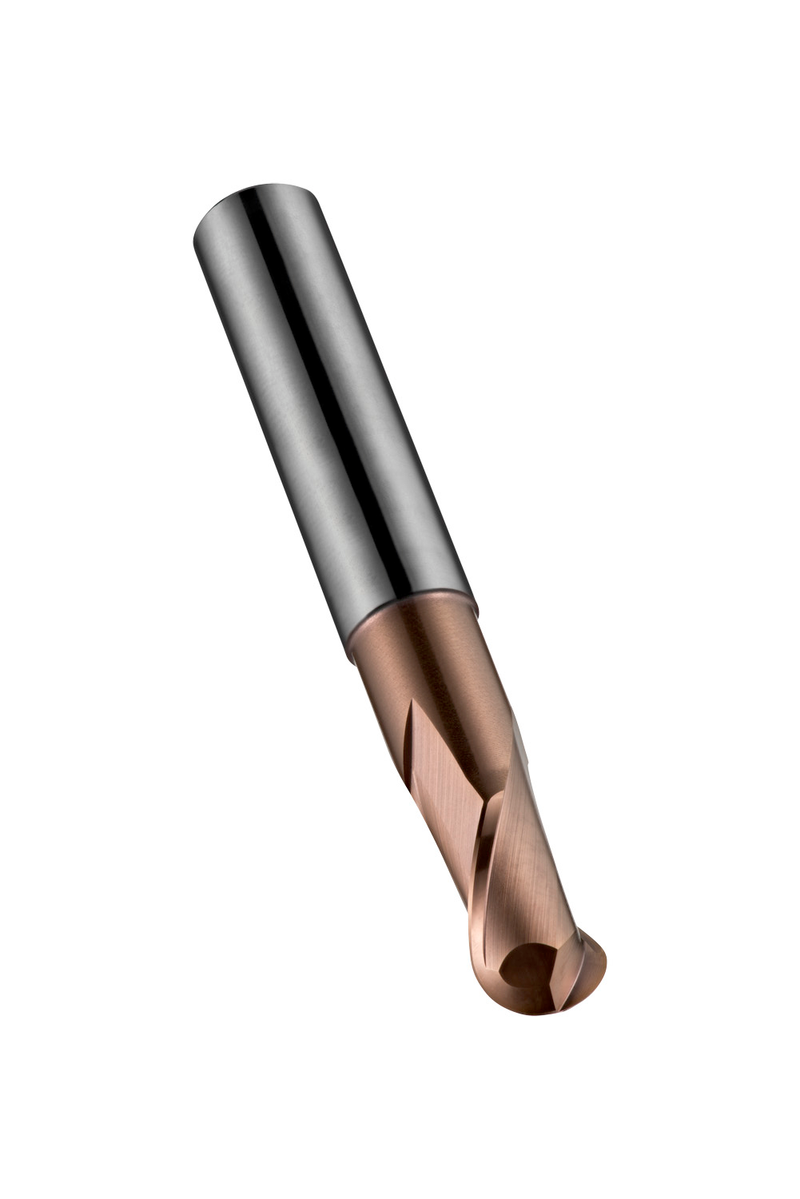

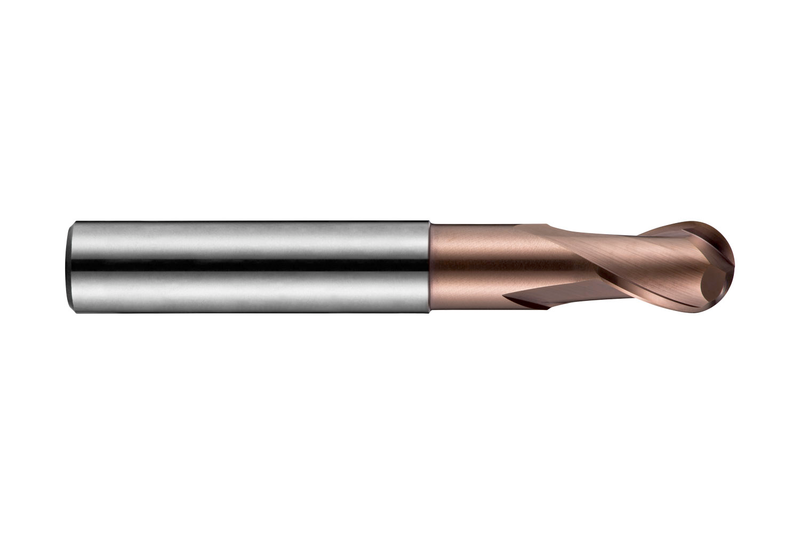

Fraise boule extra-courte à 2 dents, diamètre 12mm avec longueur de coupe 16mm, longueur totale 75mm, dégagement de 38mm avec collet effilé et rayon de profil complet de 6mm, selon la norme DORMER avec un diamètre de queue cylindrique de 12mm, carbure monobloc avec revêtement TiSiN, hélice 30° et angle de dépouille 3° pour le fraisage de copie dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S22912.0
GradeTiSiN
Product Number6706527
Product FamilyS229
Insert Geometry
Corner Radius — in (RE)0.2362"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm

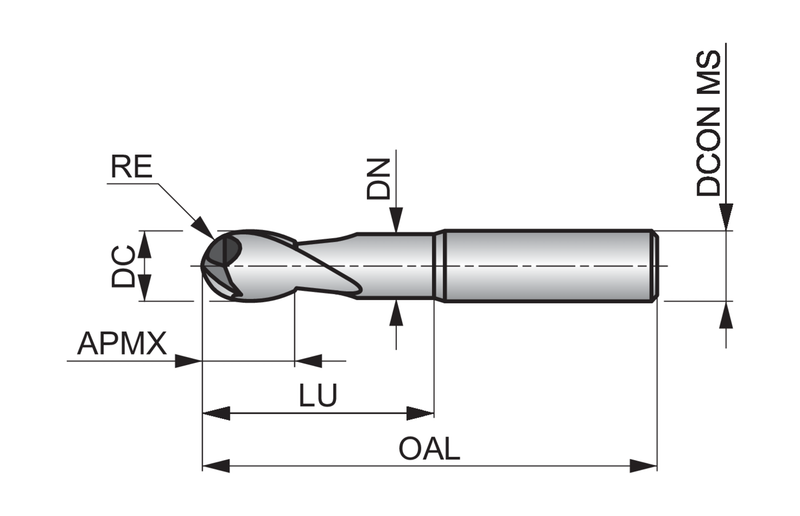

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)38.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706527
EAN7320760680766
File Type Download
S22912.0 — Line Drawing PDF Download
