S6295.0
S6295.0
S6295.0
S6295.0

S6295.0

UGC DOR6706532
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.83 CAD - $70.83 CAD
$70.83 CAD
$70.83 CAD - $70.83 CAD
$70.83 CAD

Vendu en lots de : 1

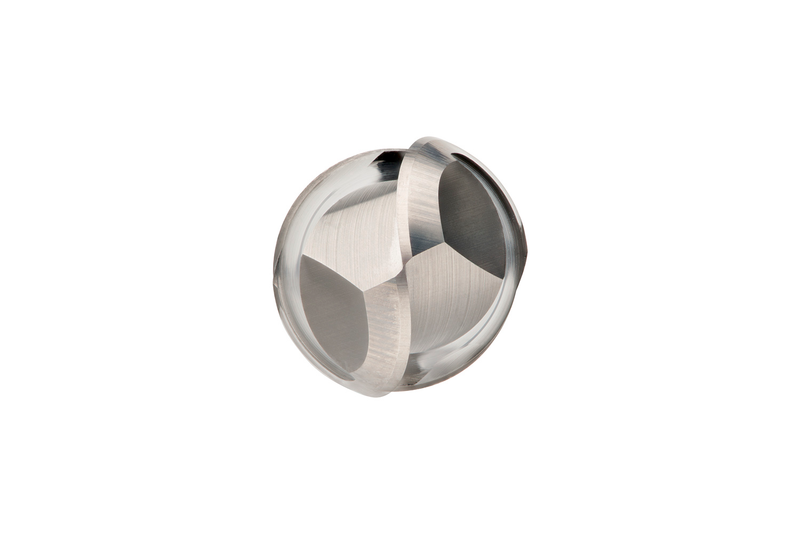

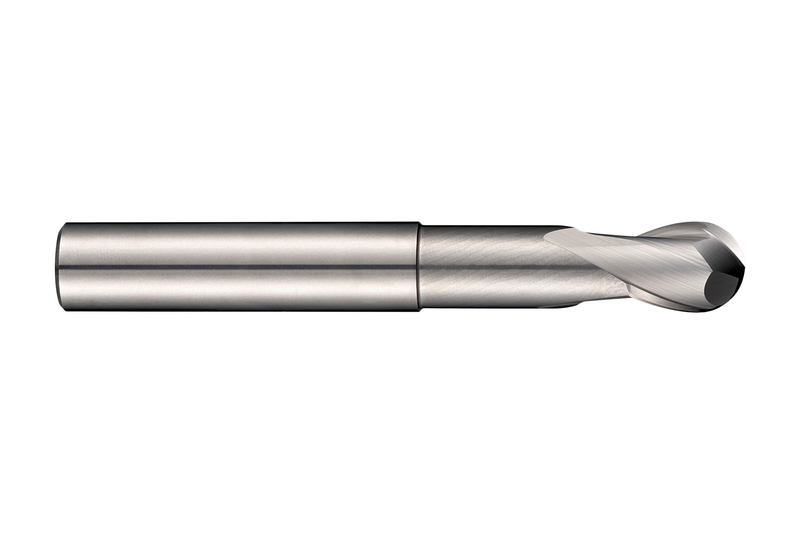

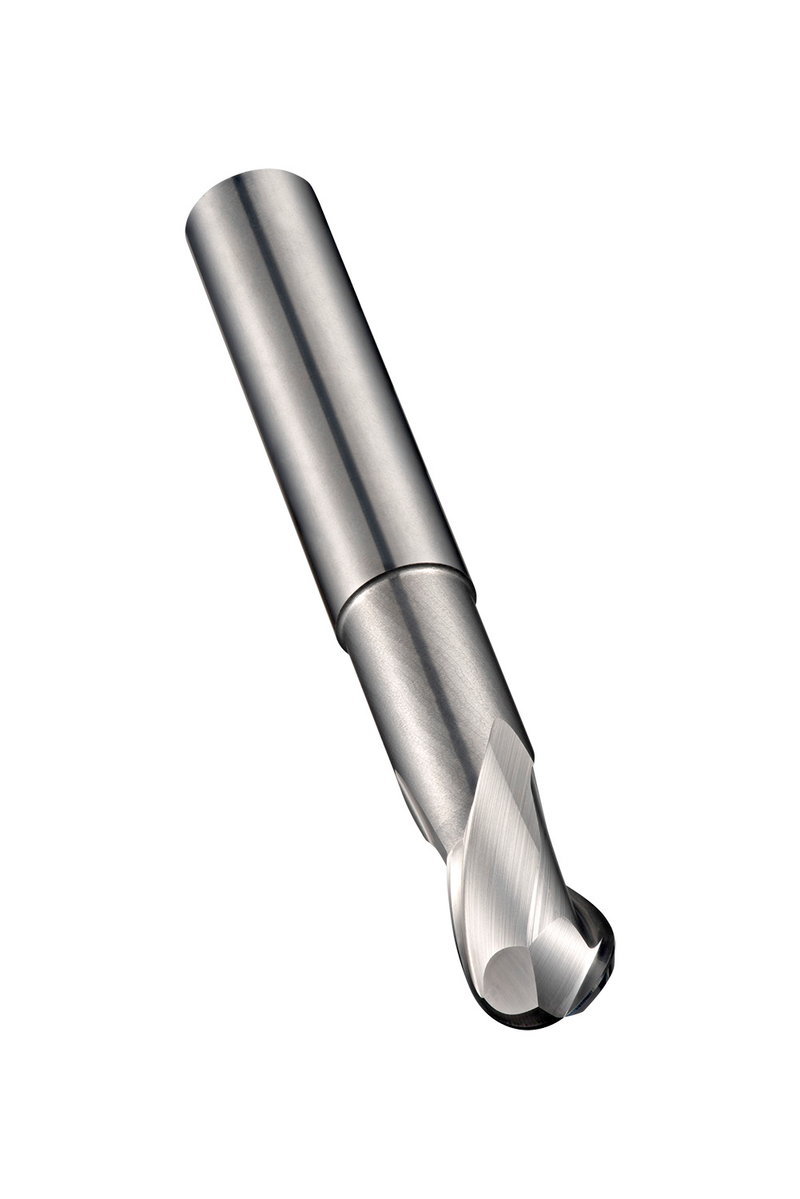

Fraise en bout hémisphérique 2 dents série extra-courte, diamètre 5mm avec 7mm de longueur de coupe, longueur totale de 57mm, portée de 20mm avec dégagement et rayon de profil complet de 2,5mm, selon la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 15° pour le fraisage de reproduction dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6295.0
GradeLumineux
Product Number6706532
Product FamilyS629
Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm

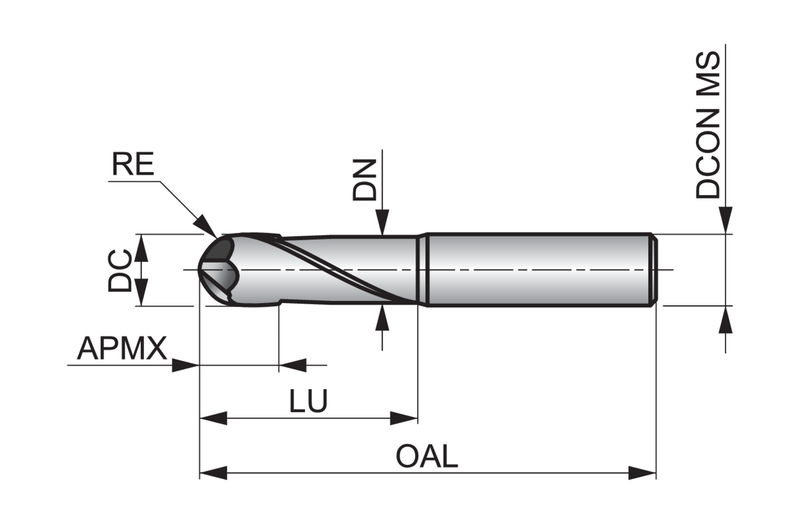

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706532
EAN7320760680810
File Type Download
S6295.0 — Line Drawing PDF Download
